INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
Cable, Hose, and Wire Routing
IMPORTANT: Provide sufficient slack at out-
board end to permit unrestricted steering and tilt-
ing of outboard. Do not allow cables to bind.
Battery Cables
Route battery positive (+) cable to the starter sole-
noid. Secure the cable to terminal. Position grom-
met in lower engine cover.
Secure the battery negative (–) cable to the pow-
erhead ground terminal. Apply Black Neoprene
Dip to connection.
Remote Electrical Harness
Refer to accessory instruction sheet.
WARNING
Disconnect battery cable from battery
before servicing electrical systems. Failure
to do so could result in injury from igni-
tions sources (sparks) or from contact with
moving parts if accidental cranking or
starting occurs.

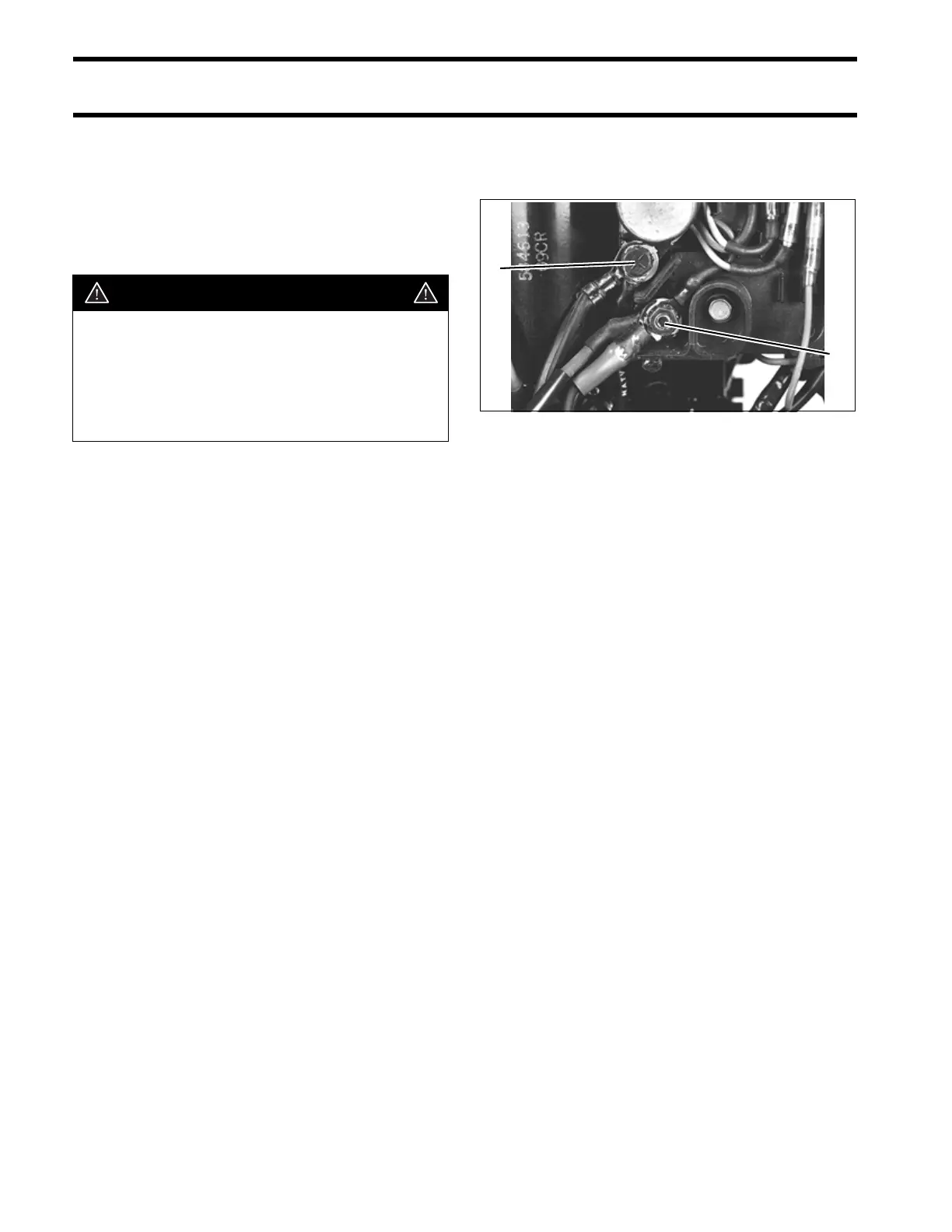

1. Solenoid terminal
2. Ground terminal
35545
1
2
