ELECTRICAL
CONNECTOR SERVICING

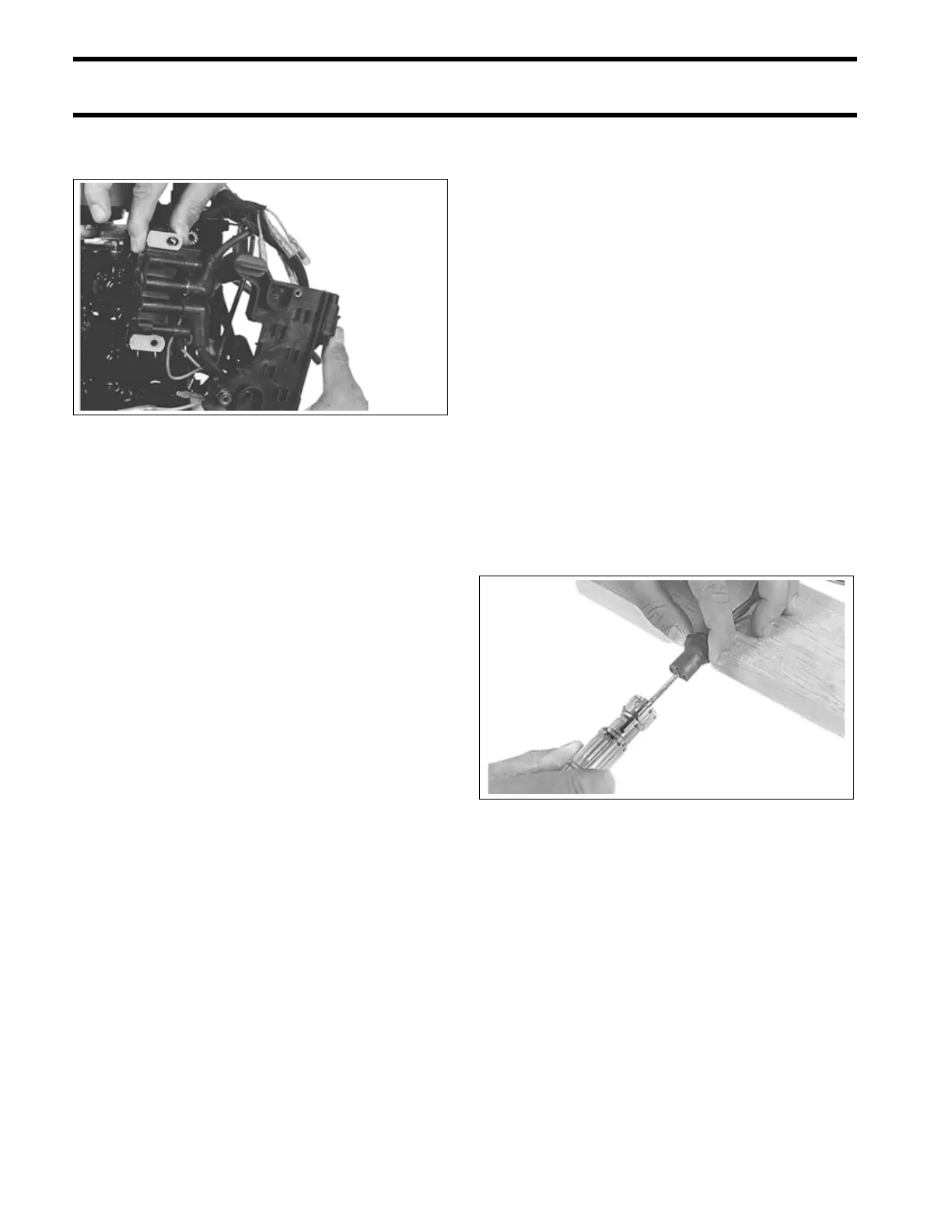

Remove the two screws retaining the electrical
bracket. Remove the bracket.
Installation
Installation is essentially the reverse of removal.
Pay close attention to any additional task that
may be required for installation.
Install bracket (with coil) on powerhead. Torque
screws 48 to 96 in. lbs. (5.4 to 10.8 N·m).
Install the fuse and connect the gray and tan
wires.
Install the rectifier with the red wire and black
cables and torque screws 48 to 96 in. lbs. (5.4 to
10.8 N·m). Connect the yellow/blue, yellow/gray,
and yellow wires.
Install bracket with solenoid and tighten screws
securely. Attach the red cables (starter cable to
top large post). Attach black and yellow/red wires
to top posts.
Install primer and connect black and purple/white
wires.
CONNECTOR
SERVICING
Amphenol Connectors
Terminal Removal
To remove a terminal from the plug or receptacle,
lubricate both ends of the cavity with isopropyl
alcohol.
Pick the proper tool for the service being per-
formed. Refer to “SPECIAL TOOLS” on page 21.
• Pin Remover, P/N 322698
• Socket Removal Tool, P/N 322699
• Crimping Pliers, P/N 322696
• Pin Insert Tool, P/N 322697
Place the plug or receptacle against the edge of a
flat surface with clearance behind connector for
terminal to be pushed out. Push terminal from
connector with appropriate tool.
32721
30386
