184
MANUAL STARTER
GENERAL
GENERAL
Starter Rope Length
Torque Chart
REMOVAL
IMPORTANT: Use of Starter Spring Installer Kit,
P/N 342682, is required.
Loosen starter lockout cam screw several revolu-
tions. Remove the three starter retaining screws.
Model Rope Length
9.9/15 59 in. (150 cm)
Model Description In.
lbs.
Ft.
lbs.
N·m
9.9/15
Starter
Retaining Screw
60 - 84 5 - 7 7 - 9
9.9–15
Starter Spindle
Screw and Nut
120 -
144
10 - 12 14 - 16
WARNING
Avoid accidental starting of engine while
servicing, twist and remove all spark plug
leads.

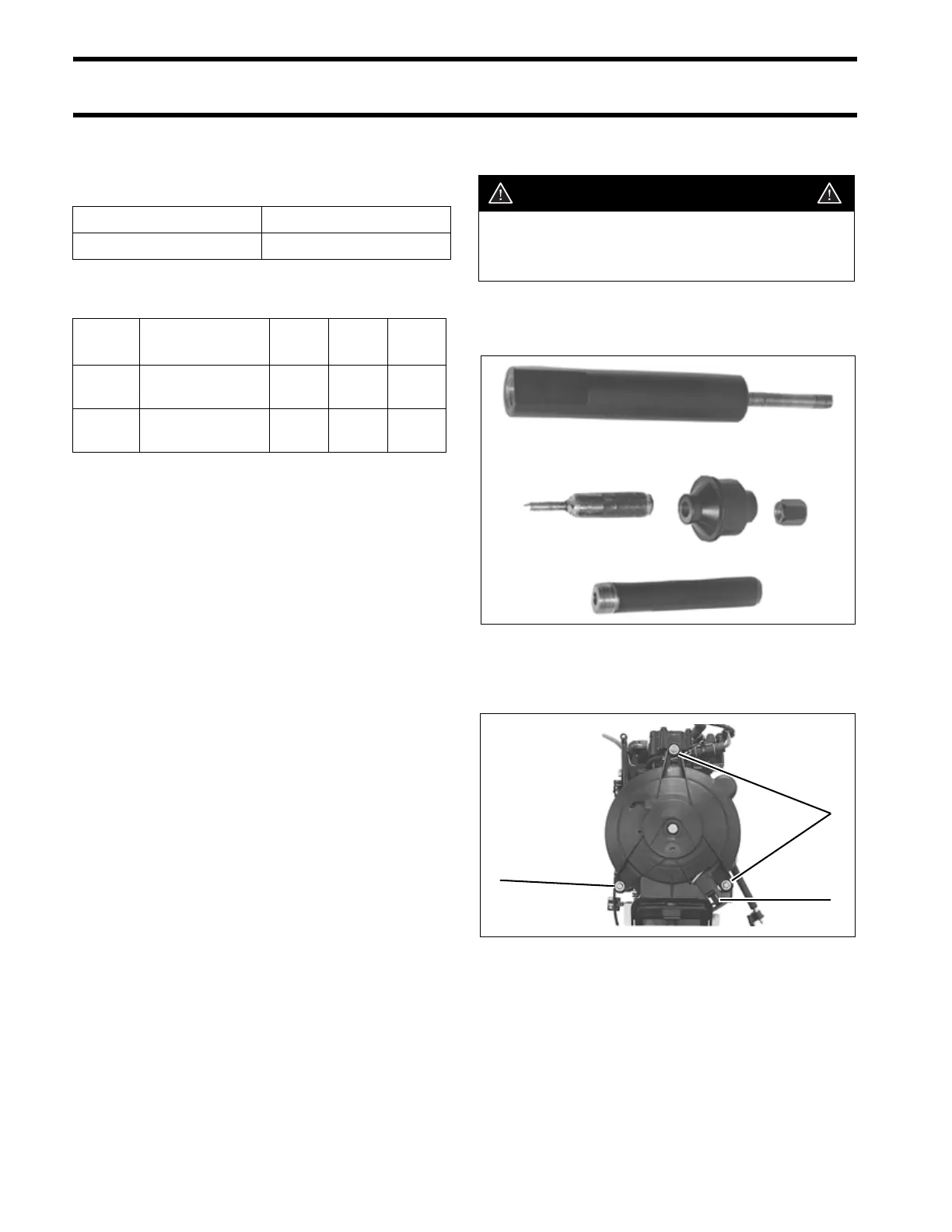

Starter Spring Installer Kit 50068
1. Cam screw
2. Starter screws
32312
2
1
2
