130
POWERHEAD
DISASSEMBLY

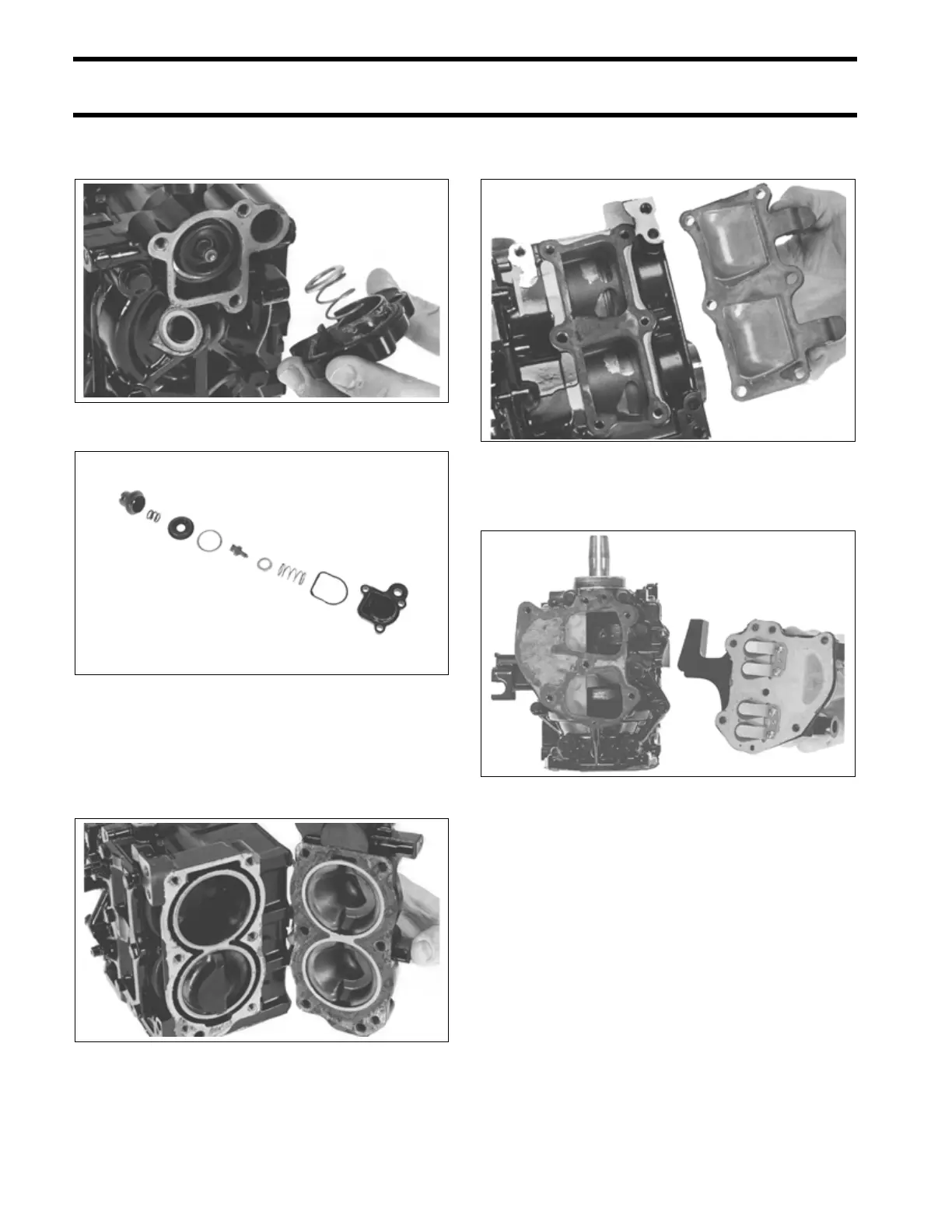

Remove the thermostat assembly and tempera-
ture switch (if equipped).
Remove the cylinder head screws.
Remove cylinder head. With number punches,
mark the top piston dome number 1 and the bot-
tom piston dome number 2.
Remove the intake bypass cover from the cylinder
block. Clean the gasket surfaces.
Remove the six intake manifold screws, intake
manifold, leaf plate assembly, and gaskets.
Using the Taper Pin Tool, or equivalent, push
crankcase taper pin toward intake manifold sur-
32387
32386
32385
32384
32383
