170
GEARCASE
WATER PUMP

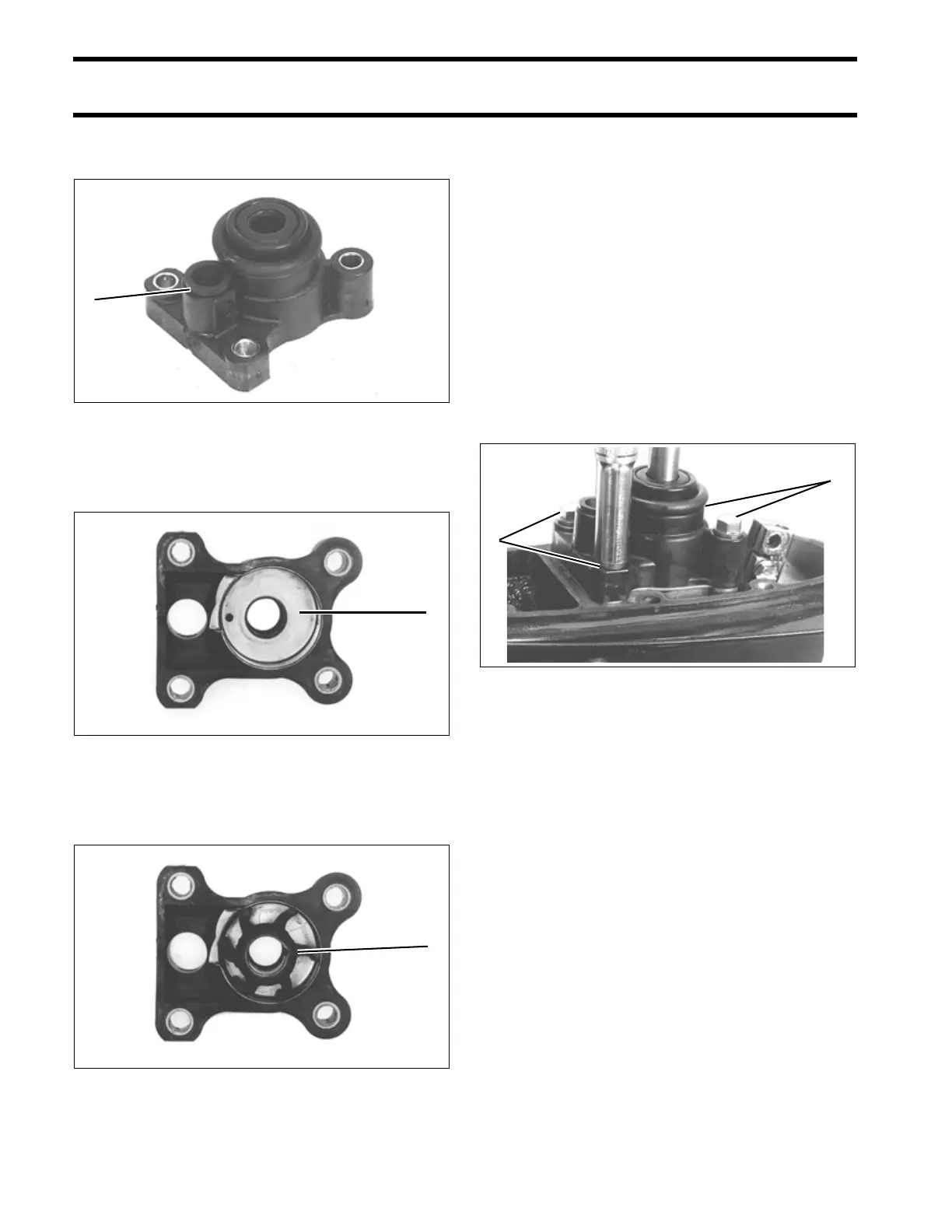

in housing. Coat the inside surface of grommet
with Triple-Guard grease.
Lightly coat the exterior of the impeller cup with
Gasket Sealing Compound. Position the impeller
cup in the impeller housing as shown.
Lightly coat the inside of the impeller cup with oil.
With a counterclockwise rotation, install the impel-
ler into the impeller cup.
Apply a thin bead of Adhesive 847 to the
machined surface, on the top of the gearcase that
contacts the impeller plate. Slide the plate down
over the driveshaft and position it.
Apply Needle Bearing grease to the impeller drive
pin and position it on the flat of the driveshaft.
Apply a thin bead of Adhesive 847 to the impeller
housing mounting surface.
Slide the impeller housing into position while rotat-
ing the driveshaft to engage the impeller with the
drive pin. Apply Nut Lock to the threads of the four
impeller housing screws. Tighten the screws to a
torque of 60 to 80 in. lbs. (7 to 9 N·m)
1. Grommet 16308
1. Impeller cup 16313
1. Impeller 16314
1
1
1
1. Screws 16310
1
1
