INSTALLATION AND PREDELIVERY
PROPELLERS
Install the spacer, engaging the propeller shaft
splines.
Wedge a block of wood between propeller blade
and the anti-ventilation plate.
Install the propeller nut and torque to 120 in. lbs.
(14 N·m). If cotter pin holes in the propeller nut
and propeller shaft are not aligned, continue to
tighten the nut until they are in line. Do not loosen.
Insert a new cotter pin through the propeller nut
and shaft. Bend its ends over the nut to secure the
assembly. Remove block of wood.
IMPORTANT: After fastening propeller nut,
make sure outboard is in NEUTRAL and carefully
spin propeller. Propeller must turn freely and
should not spin off center. If propeller appears to
spin off center, check for possible bent propeller
shaft.

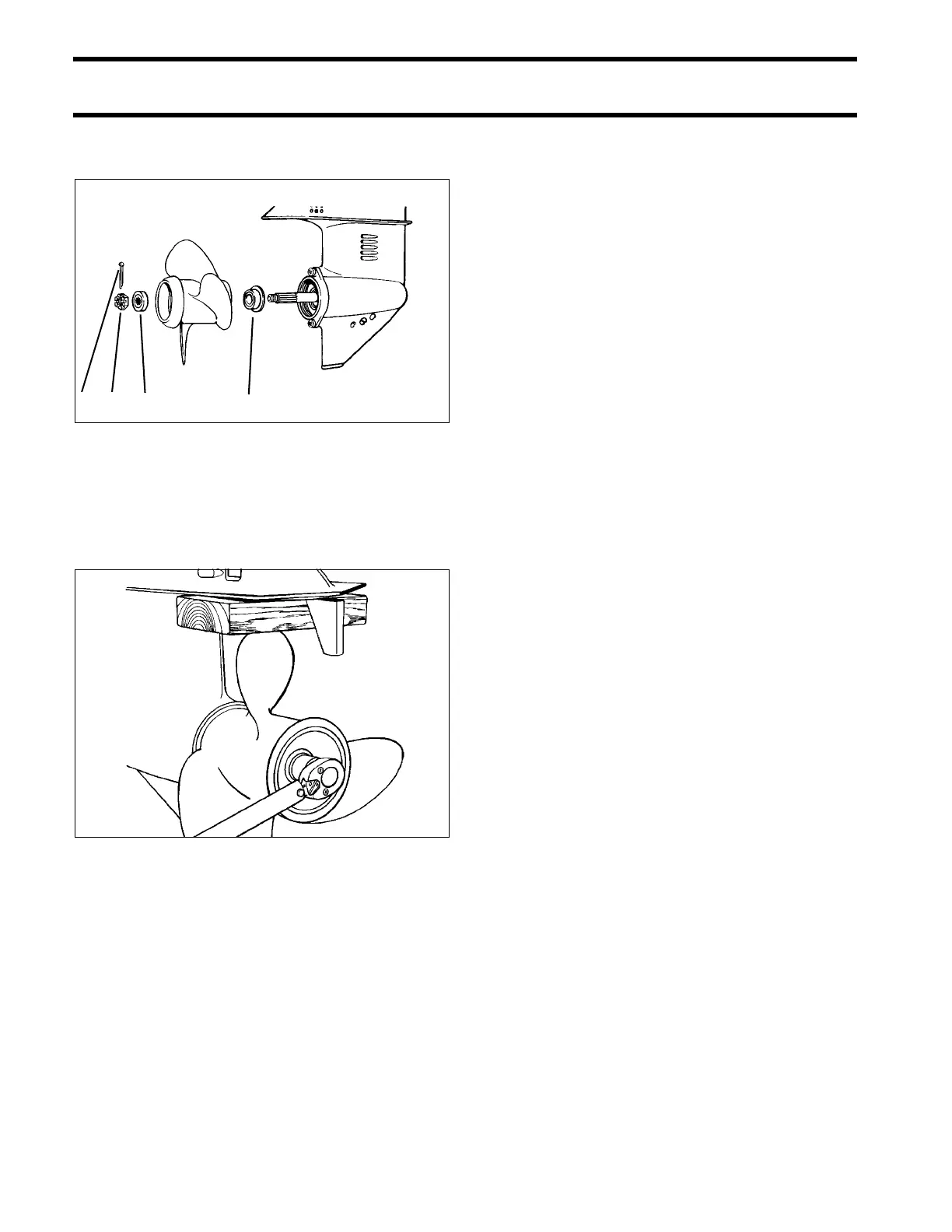

TYPICAL
1. Thrust bushing
2. Thrust washer
3. Cotter pin
4. Propeller nut
CO2443
TYPICAL DRC3984
3 4 2 1
