Johnson J10RSUR

74
ELECTRICAL
ELECTRIC STARTER TESTS
9
+
8
7
6
5
1
4
3
2

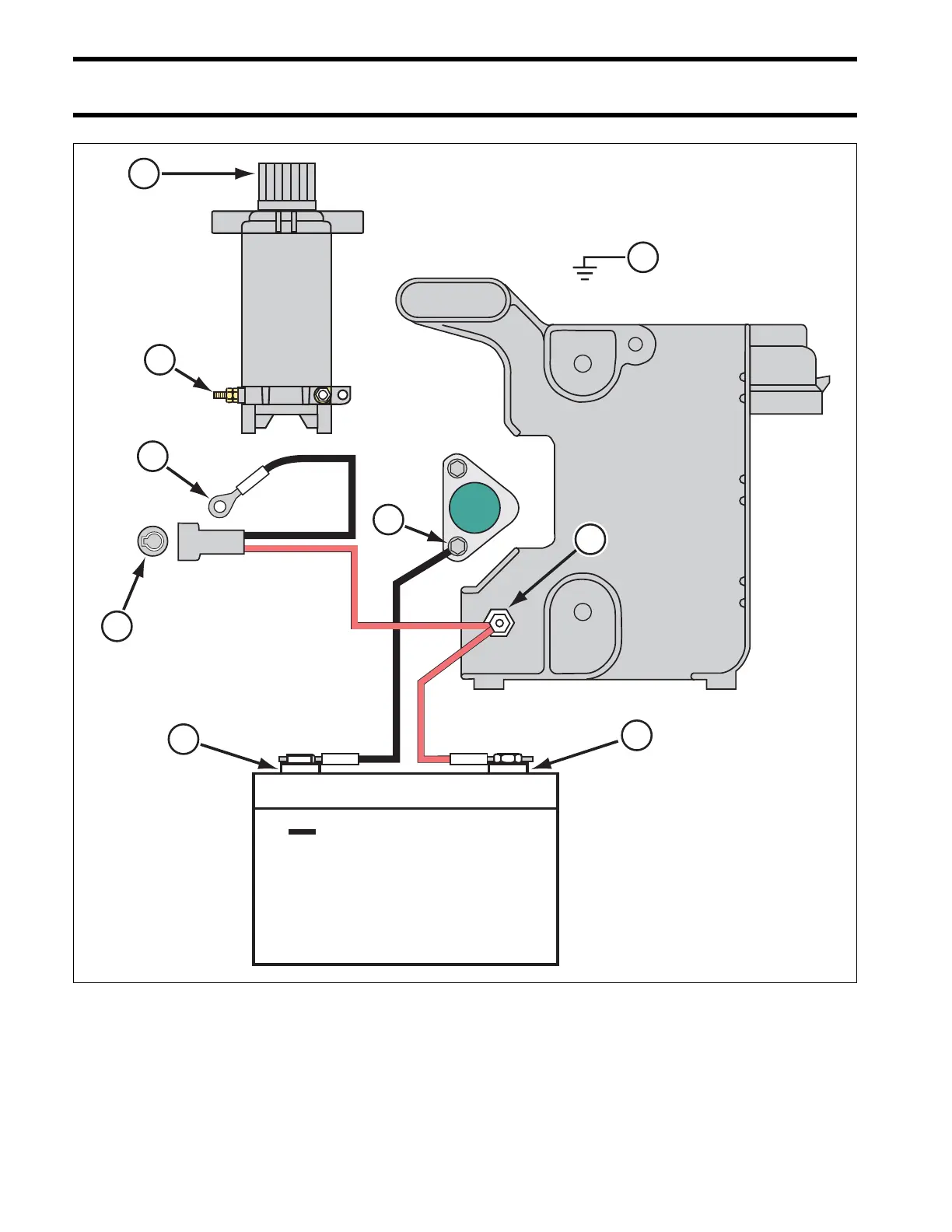

TYPICAL
1. Battery positive (+)
2. Battery negative (-)
3. Rectifier terminal ground
4. Start switch connection
5. Powerhead ground
6. Start switch output lead
7. Start button
8. Starter terminal
9. Pinion
DRC6305
