JRC RADAR 1800 - Installation Procedure

Section 2 Installation
30

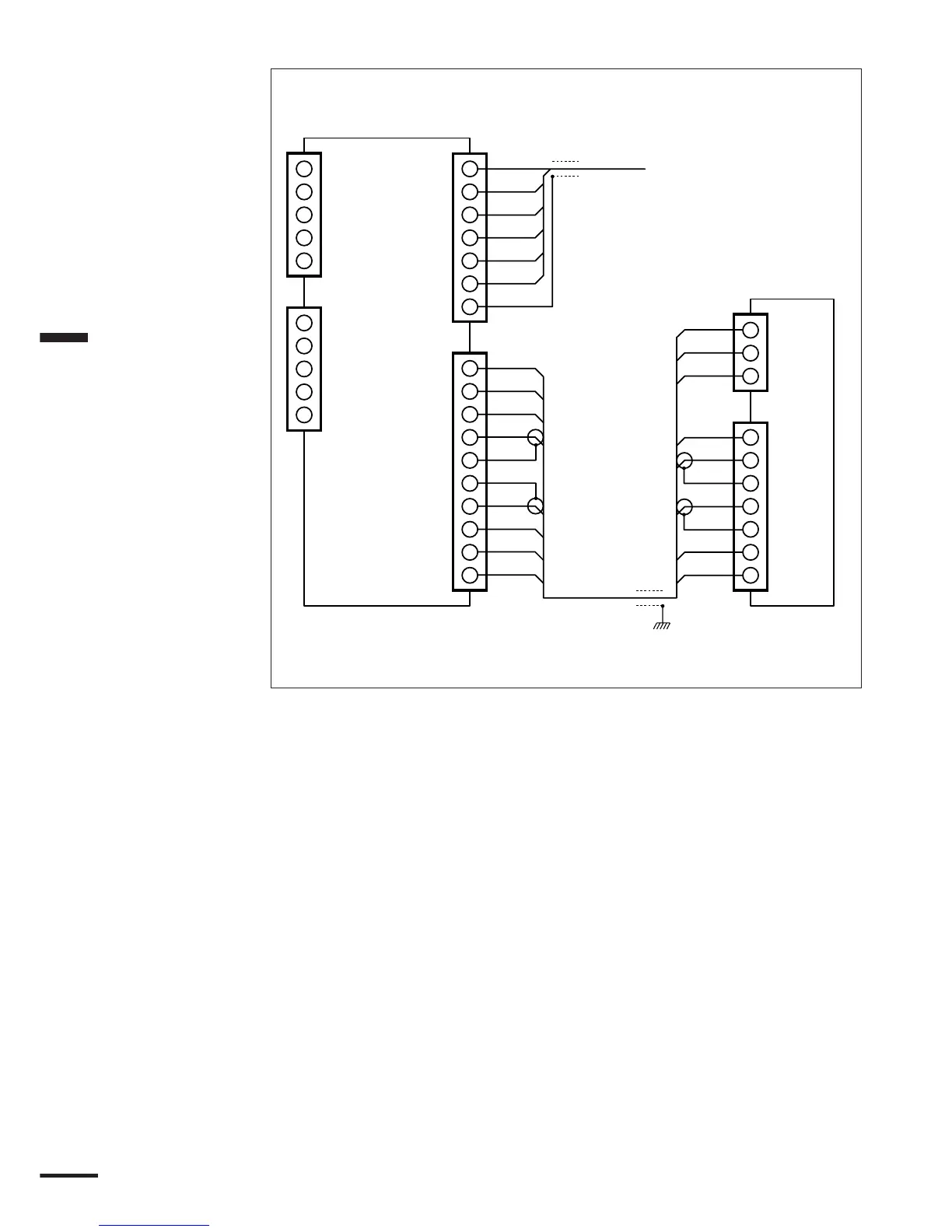

Figure 2-4 Interconnection Diagram
+12V
GND
GPS
DATA IN-
GPS
DATA IN+
GPS
DATA OUT
SHIP'S
MAIN+
SHIP'S
MAIN-
1A
2A
PW
VD
VDR
TIR/GSR
TI/GS
BZ/TUNI
TUNV
INTSW
COMPASS
DATA IN+
COMPASS
DATA IN-
P1
CFQ-6532 (2m)
P3
P2
P4
T.RED
T.BLK
YEL
GRN
BLU
NC
NMEA
DATA OUT+
NMEA
DATA OUT+
NMEA
DATA IN-
NMEA
DATA IN+
T.RED
T.BLU
GRN
COAX
SHLD
SHLD
WHT
YEL
T.ORN
WHT
NCD-4300 DISPLAY UNIT
TO SHIP'S MAIN
TO GPS/MAGNETIC COMPASS
NKE-1065 SCANNER UNIT
T.RED
T.BLU
T.ORN
YEL
SHLD
SHLDSHLD
WHT
GRN
COAX
1A
2A
NC
TUNV
TI/GS
TIR/GSR
VD
VDR
BZ/TUNI
PW
CFQ-6531-10/15
