JRC RADAR 1800 - Display of RADAR Transponder

69
Section 3 Operation

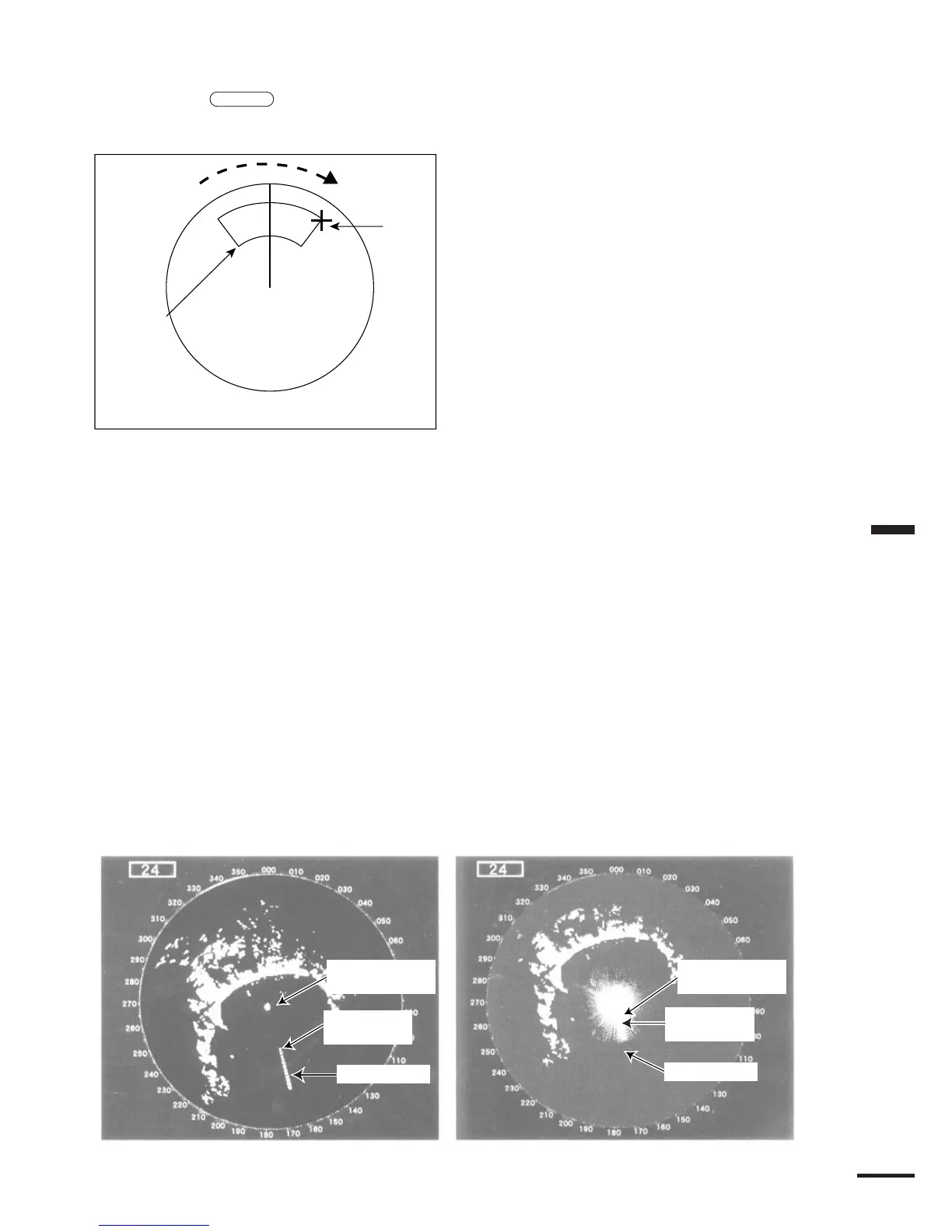

•Next, move the cursor to the desired end point of your guard zone
then press the
Joystick
.
A ring in the distance range is displayed by the solid line at this time.
END POINT
Start
Point
End
Point
Display of RADAR Transponder
SART (Search and Rescue Radar Transponder) is life preserving
device approved by GMDSS which is used for locating survivors in the
event of a disaster or distress. SART operates in the 9 GHz frequency
band. When it receives a radar signal (interrogating radio wave) of 9
GHz transmitted by a rescue ship or aircraft radar, SART transmits a
series of response signals to the searchers to indicate the distress
position.
In order to see the SART or radar beacon mark on the radar screen.
q RANGE SCALE : Select 6 or 12 nm.
w SEA : Set to minimum.
e TUNE : DETUNED to reduce the clutter.
r IR : Set IR OFF.
t PROCESS : Set PROCESS OFF.
SART Code
Position of
SART
Position of the
Rescue Craft
Position of
SART
Position of the
Rescue Craft
SART Code
[EXAMPLE]
