Connecng an EX9200 Switch to a Network for Out-of-Band
Management
Ensure that you have an Ethernet cable with an RJ-45 connector available. One such cable is provided
with the switch. Figure 56 on page 187 shows the RJ-45 connector of the Ethernet cable supplied with
the switch.

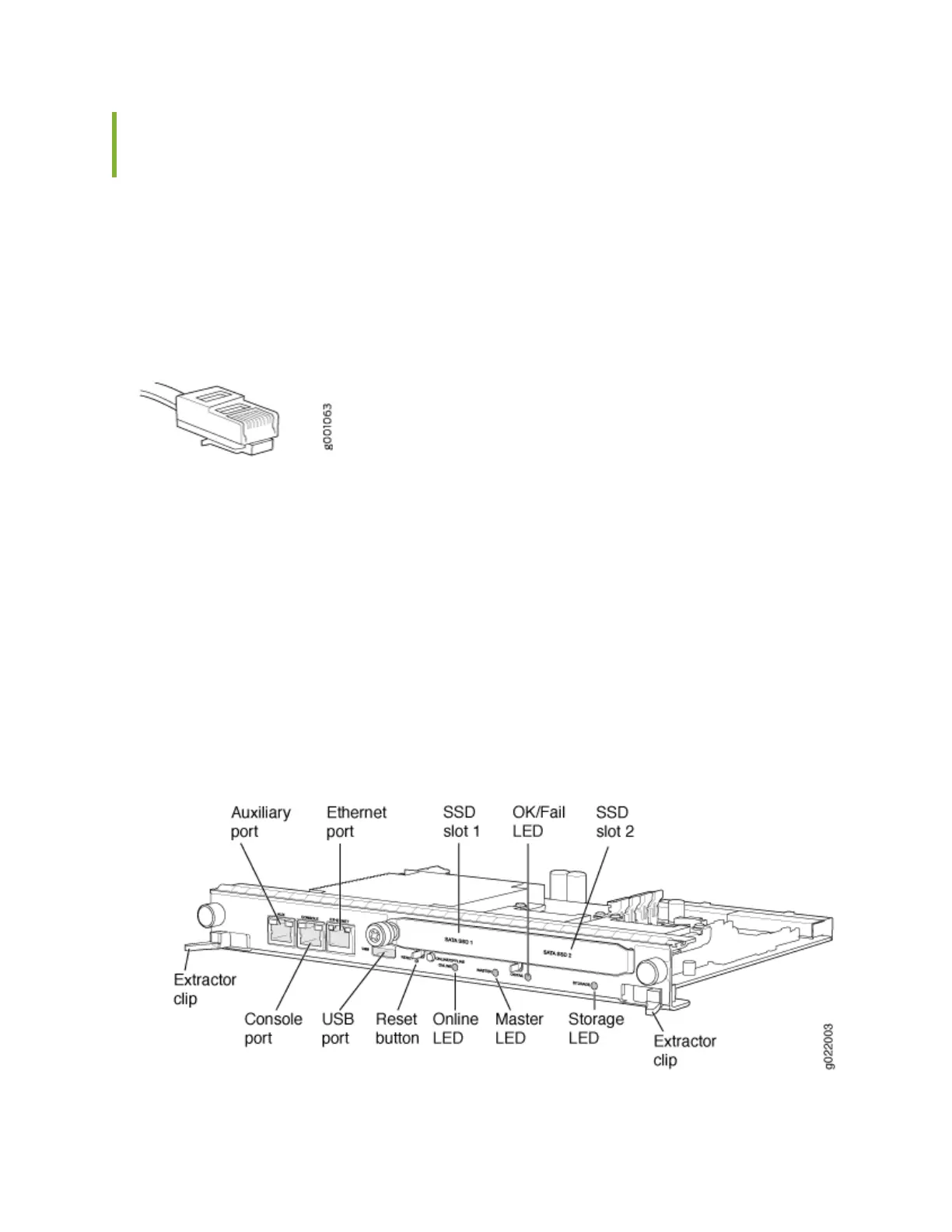

Figure 56: Ethernet Cable Connector
You can monitor and manage an EX9200 switch by using a dedicated management channel. Each switch
has an Ethernet management port labeled with an RJ-45 connector for out-of-band management. Use
the Ethernet management port to connect the EX9200 switch to the management device.
To connect a switch to a network for out-of-band management:
1. Turn o the power to the management device.
2. Connect one end of the Ethernet cable to the management port.
• In an EX9200 switch, the management port is on the Roung Engine module (RE module) installed
in the switch and is labeled ETHERNET (see Figure 57 on page 187).
Figure 57: Management Port on the RE Module in an EX9200 Switch
3. Connect the other end of the Ethernet cable to the management device.
187
