Never hold or grasp the line card anywhere except the places menoned in these

procedures. In parcular, never grasp the connector edge. See Figure 1.

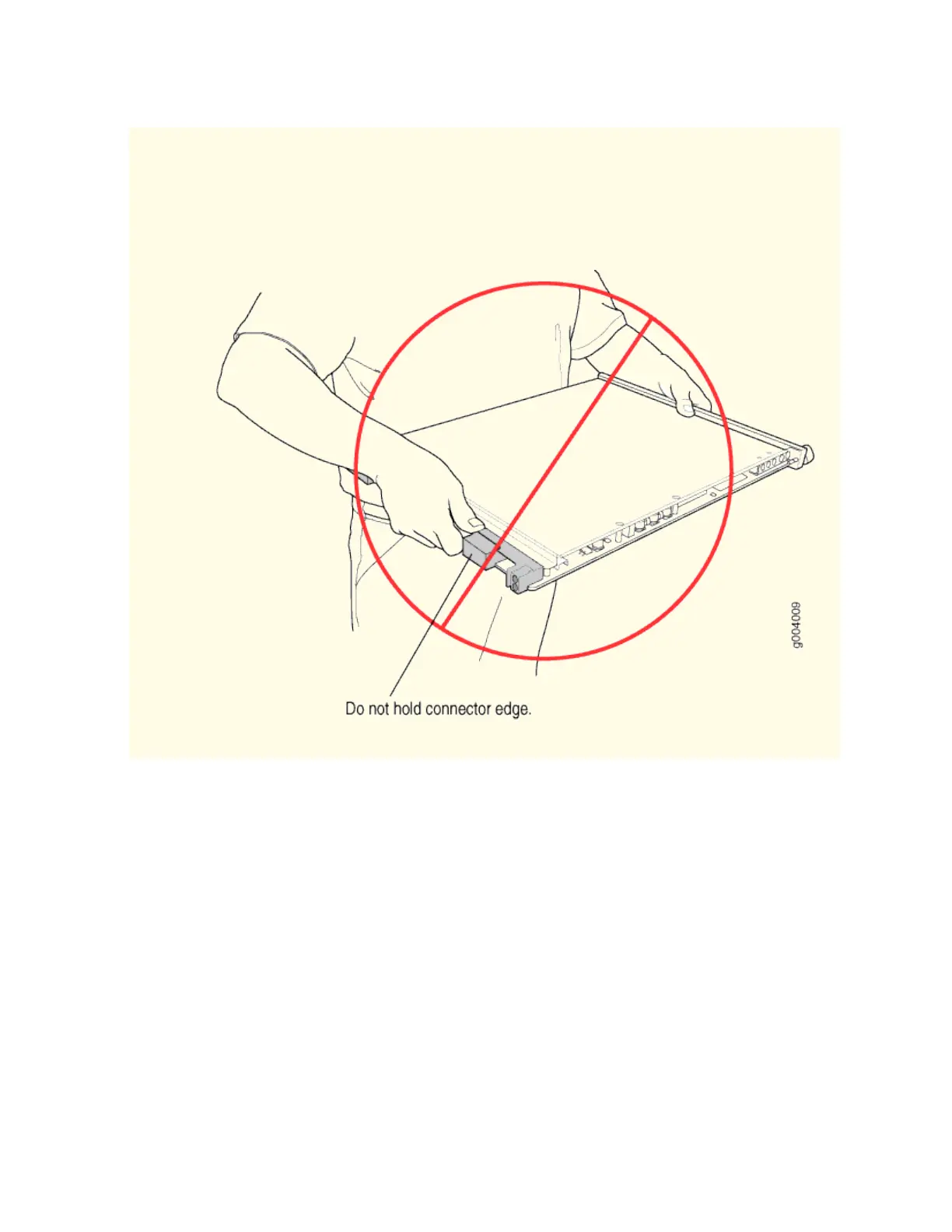

Figure 75: Do Not Grasp the Connector Edge

Never carry the line card while holding the faceplate with only one hand.

248
