Using the E-Plex Advanced ACS Software
E-Plex Advanced ACS User’s Guide
PKG 3114 0106 3–49

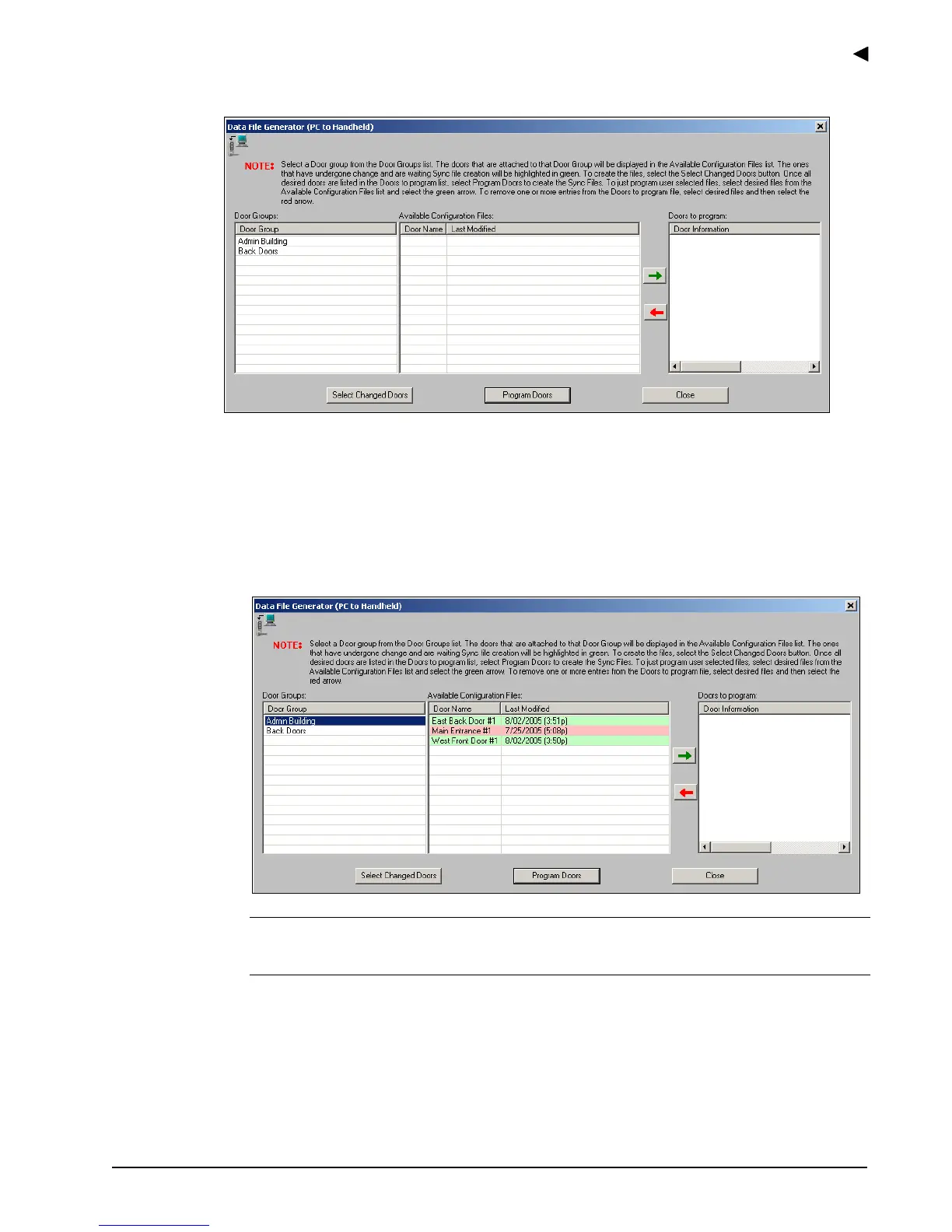

The software displays the Data File Generator (PC to Handheld) window:
From this window, you can program doors to upload to the M-Unit.
Programming a Lock by Uploading Data from the PC
Complete the following steps to program a lock:
1. From the Data File Generator (PC to Handheld) window, select a door group from the
Door Groups list by clicking it. The software displays the door group with the attached
doors in the Available Configuration Files list:
Note: The door groups that have undergone change and are waiting for Sync File
creation will be highlighted in green. The door groups that have not been changed will
be highlighted in pink.
2. Click the Door Name of the door you want to program or click Select Changed Doors.
• If you click the Door Name, complete steps 3–4.
• If you click Select Changed Doors, complete step 5.
