Using the E-Plex Advanced ACS Software
E-Plex Advanced ACS User’s Guide
PKG 3114 0106 3–35
To manage doors, from the Door menu select Manage Doors, or click the Manage Doors
button.

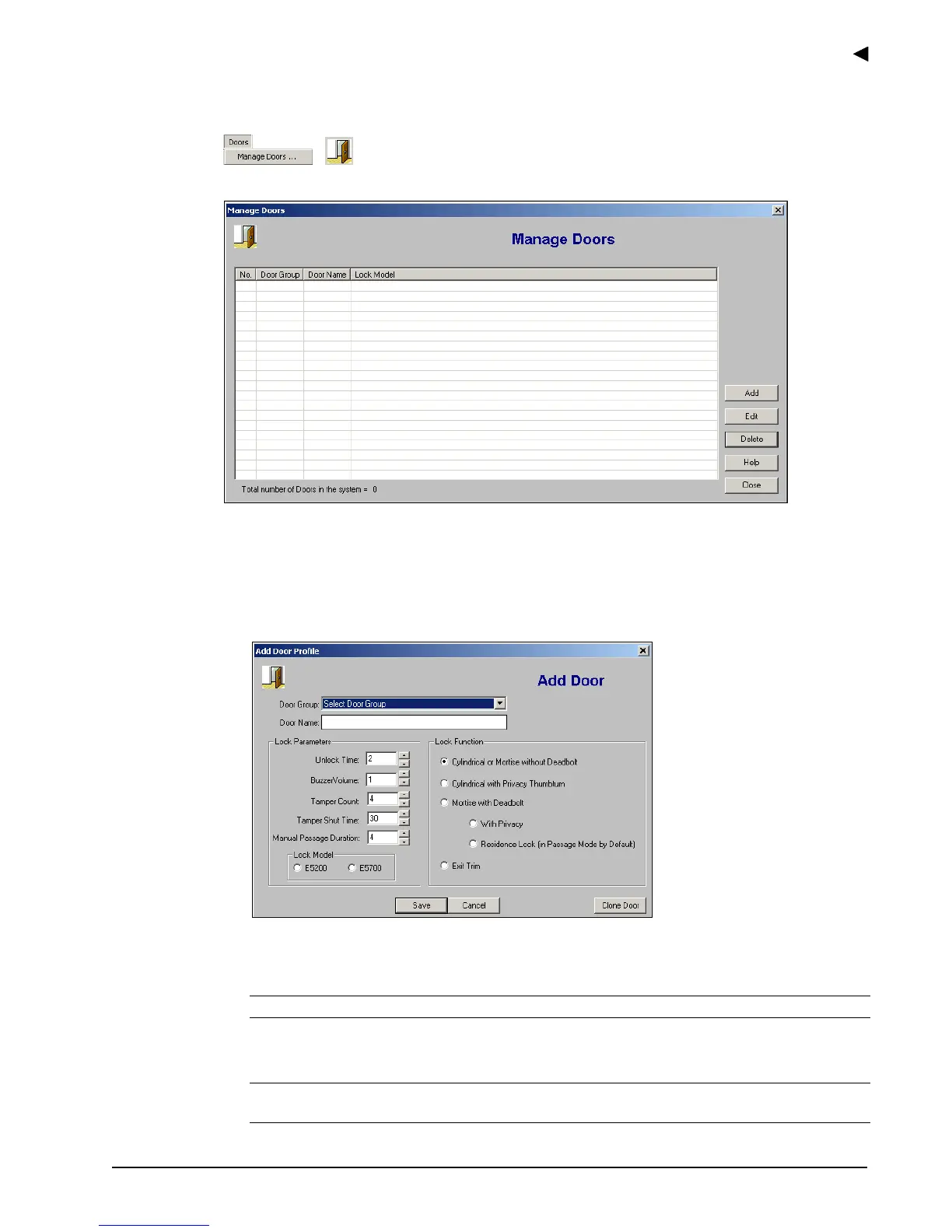

The software displays the Manage Doors window:
Adding a Door
Complete the following steps to add a door.
1. From the Manage Doors window, click Add. The software displays the Add Door
window:
2. From the Door Group drop-down list, select a door group.
3. In the Door Name field, type a name for the door.
Note: A door name can be a maximum of 20 alphanumeric characters.
4. From the Unlock Time field, select an unlock time by using the Up and Down arrows.
Note: The Unlock Time field values range between two and 20 seconds; the default is
two seconds.
