10.6 Operating area
Low voltage operating area and peak power operating are of this product are shown in below
graph.

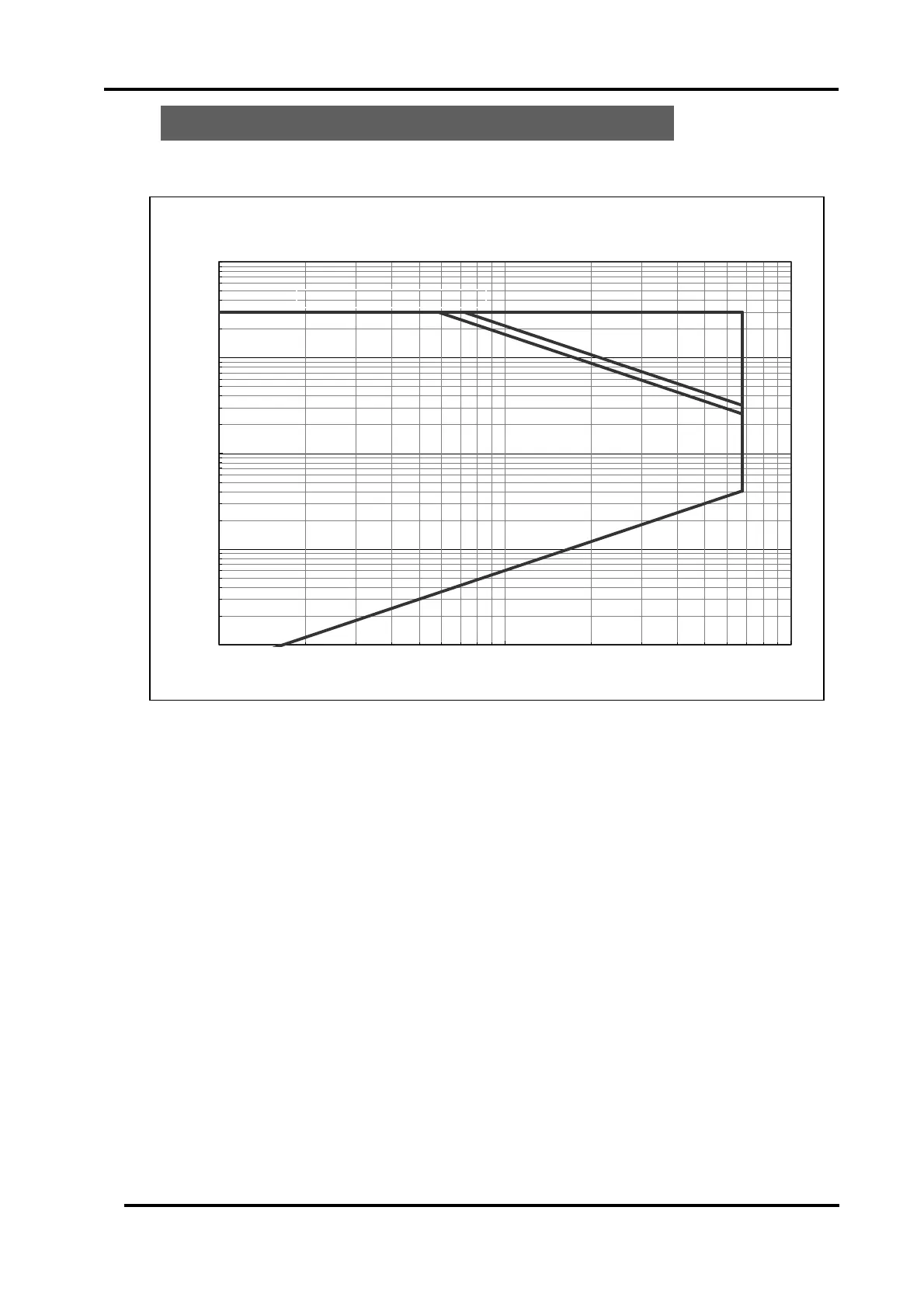

FIG. 10-6-1 ELZ-175 Operating Area
The operation Area may change depending on the environmental temperature (or inside
temperature) and accumulated operating time.
0.01
0.1
1
10
1 10 100
Voltage [V]
Current [A]
ELZ-175 Operating Area
limit current ＝ 67.5A
continuous = 175W
limit voltage ＝３０Ｖ
≦20μ s 2000W
≦20s 215W
limit resistance＝6mΩ
