Names and Functions 29
3.1.1 Display

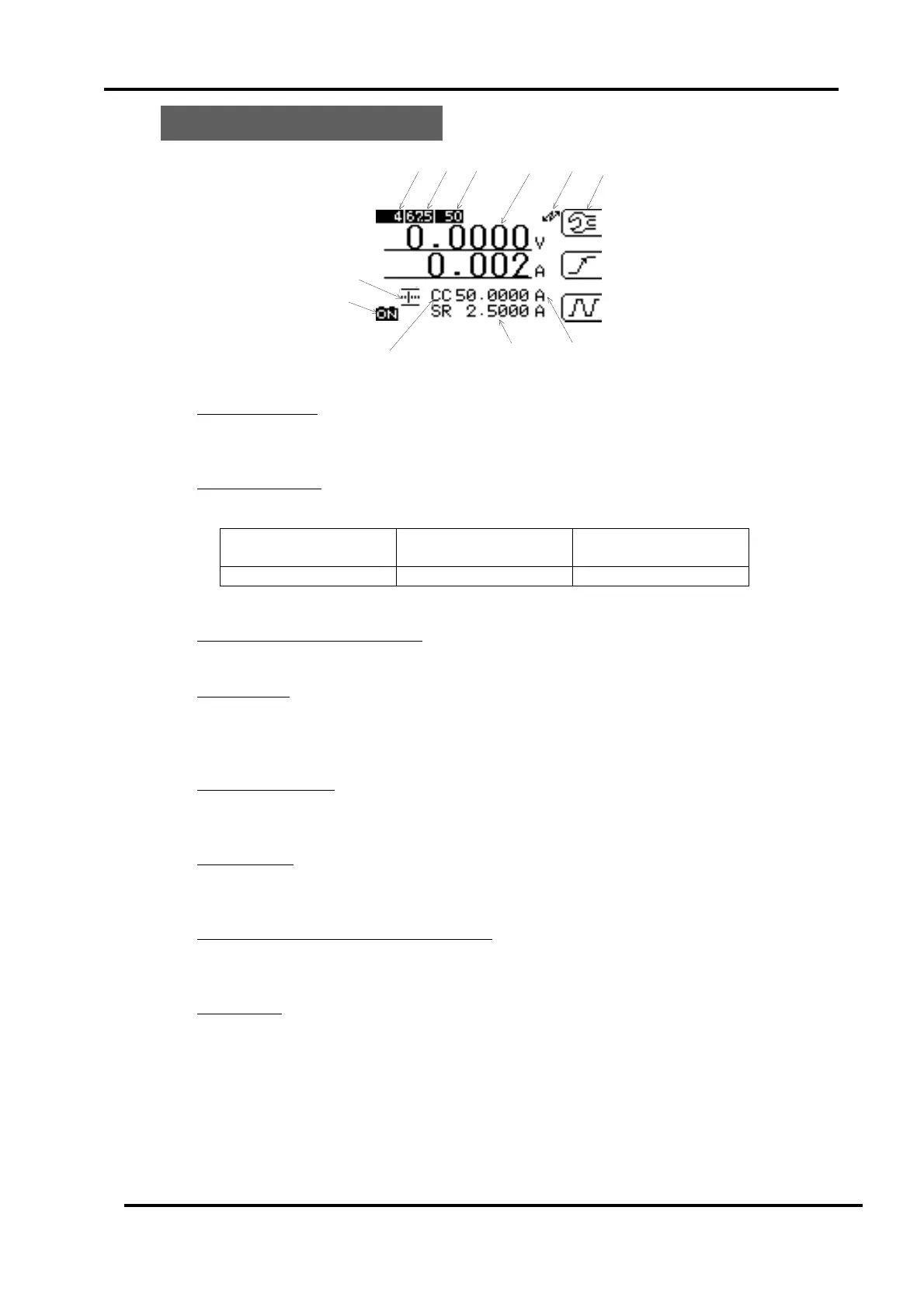

Fig. 3-1-2 Display on LCD
(1) Voltage ranges
The status of the selected voltage range is displayed: either 4V (Low) range or 30V
(High) range.
(2) Current ranges
The status of the selected current range is displayed: either 7.5A (Low) range or 67.5A
(High) range or Auto (AT) range.
Model
Voltage range
Low/High
Current range
Low/High
ELZ-175
4V/30V
7.5A/67.5A
Table. 3-1-1 Difference of Load range
(3) CURRENT MONITOR RANGE
It shows current monitor range. It has four ranges (10A / 5V, 25A / 5V, 50A / 5V, 80A / 5V,)
(4) Meas. values
Two meas. values are simultaneously displayed. You can select what should be
displayed. The drawing voltage and current are displayed in upper and lower columns
respectively.
(5) Function buttons
Characters or icons currently allocated to F1-F3 are displayed.
Items displayed therein depend upon the function you selected.
(6) Load setting
Selected load setting value is displayed. In dynamic mode,”DYNAMIC” is displayed
instead.
(7) Response speed (slew rate) setting value
Setting response speed (slew rate) is displayed. In a mode that you cannot set response
speed,”----“is displayed instead.
(8) Load modes
Abbreviation of currently selected load mode is displayed. Abbreviations represent as
follows.
CC constant current mode
CR constant resister mode
CV constant voltage mode
CP constant power mode
EX ext. control mode
ST short mode (short)
(
4
)
(
1
)
(
2
)
(
5
)
(
9
)
(
8
)
(
7
)
(
1
0
)
(
6
)
(
3
)
(
1
1
)
