KEISOKU GIKEN LOAD EDGE Series User Manual

Load Edge Series
Remote Control 85
8.7 GPIB sample program
There are sample programs provided herein based on Microsoft Visual Basic for a GPIB card
of National Instruments. Refer to the suppliers‟ relevant document for the Visual Basic and
the GPIB card thereof.
Sample -１)･･････section in Command1_Click()
This is a basic program to display the meas. result by CC mode setting, using default
conditions in, for example, and load setting range, measuring the voltage at the load terminal
and displaying the current meas. result.
Sample – 2 ) ･･････section in Command2_Click()
Using dynamic mode of constant current, this program continuously changes the current as
shown below. The numbers shown in the fig represent the No. shown in the comments in the
sample program.

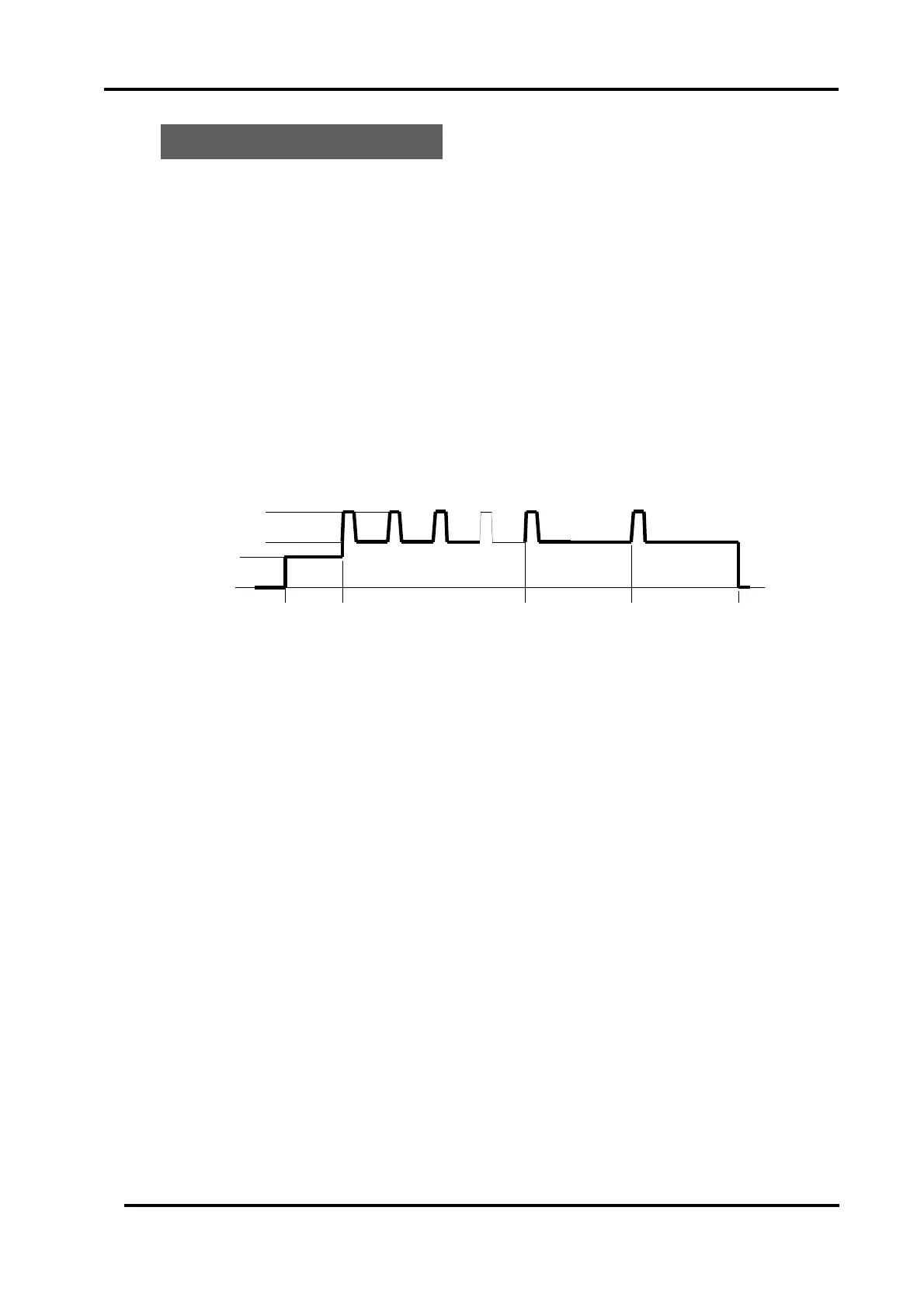

Fig. 8-7-1 Load current transition change based on this program
Sample- ３) ･･････section in Command3_Click()
This is a program to read and display the status information by serial pole.
3
A
:
C
C
-
2
5
A
:
C
C
-
1
2
A
0
A
①
②
③
④
⑤
