KEISOKU GIKEN LOAD EDGE Series User Manual

Load Edge Series
54 Operations for Load Mode
5.9 Load Control Changing by a value of voltage
You can change load mode by setting a value of voltage.

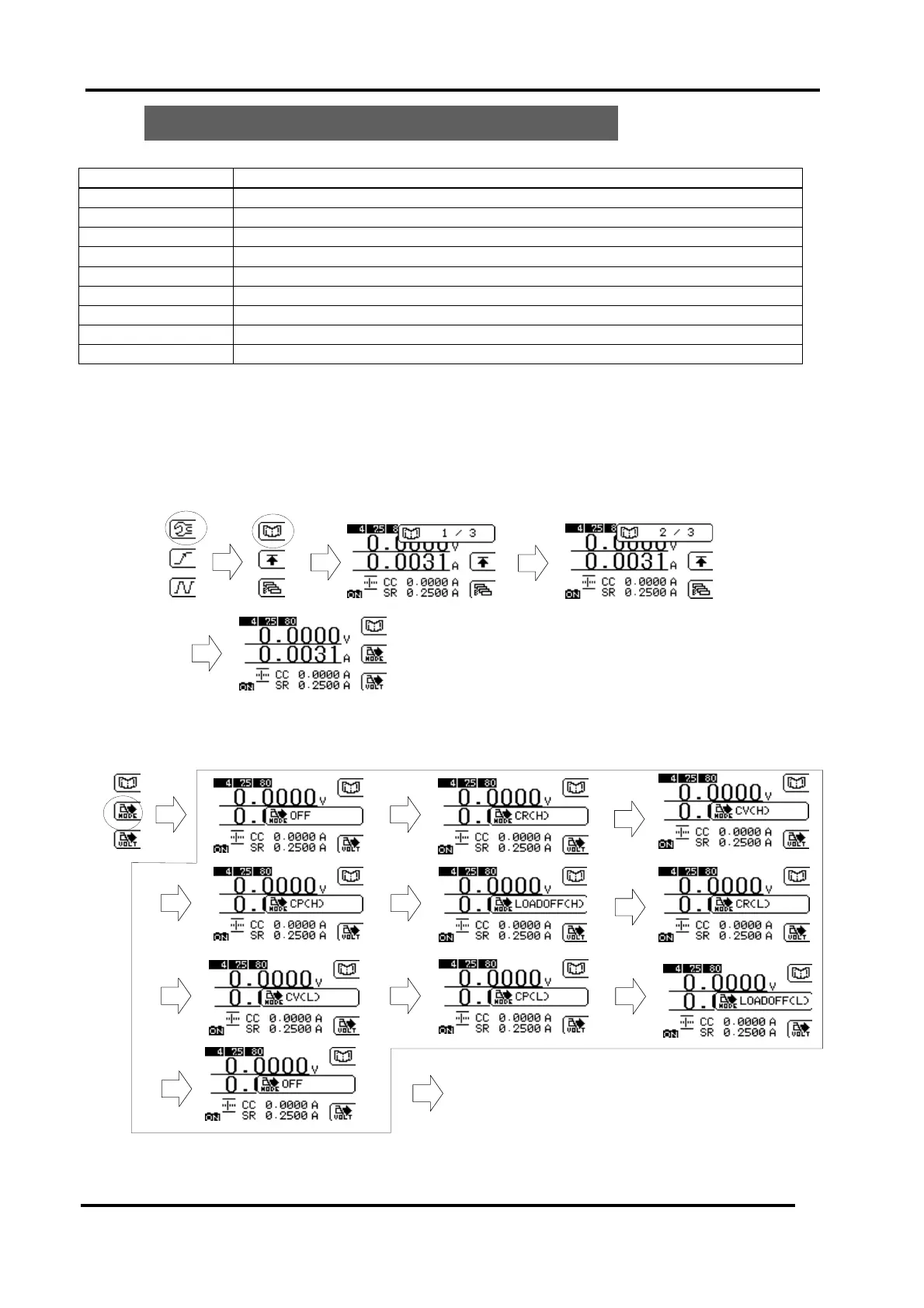

Table. 5-9-1 Kinds of view of load mode
（1） Select mode
Select LOAD CONTROL menu, and Push F1 Key three times.
Push ENT Key and it shows another menu.
F
1
F
1
F
1
E
N
T
Fig.5-9-1 How to select mode 1
Page will change after each Push of F2 so select desired mode and Push ENT Key.。
E
N
T
C
o
n
f
i
r
m
F
2
V
a
r
i
a
t
i
o
n
o
f
P
a
g
e
p
u
s
h
i
n
g
F
2
K
e
y
Fig.5-9-2. How to select mode 2
Load mode
explanation
OFF:
This function is off.
CR(H):
Change CR mode when measured voltage is upper than setting voltage.
CV(H):
Change CV mode when measured voltage is upper than setting voltage.
CP(H):
Change CP mode when measured voltage is upper than setting voltage.
LOADOFF(H):
Change Load Off when measured voltage is upper than setting voltage.
CR(L):
Change CR mode when measured voltage is lower than setting voltage.
CV(L):
Change CV mode when measured voltage is lower than setting voltage.
CP(L):
Change CP mode when measured voltage is lower than setting voltage.
LOADOFF(L):
Change Load Off when measured voltage is lower than setting voltage.
