Load Edge Series
38 Operations

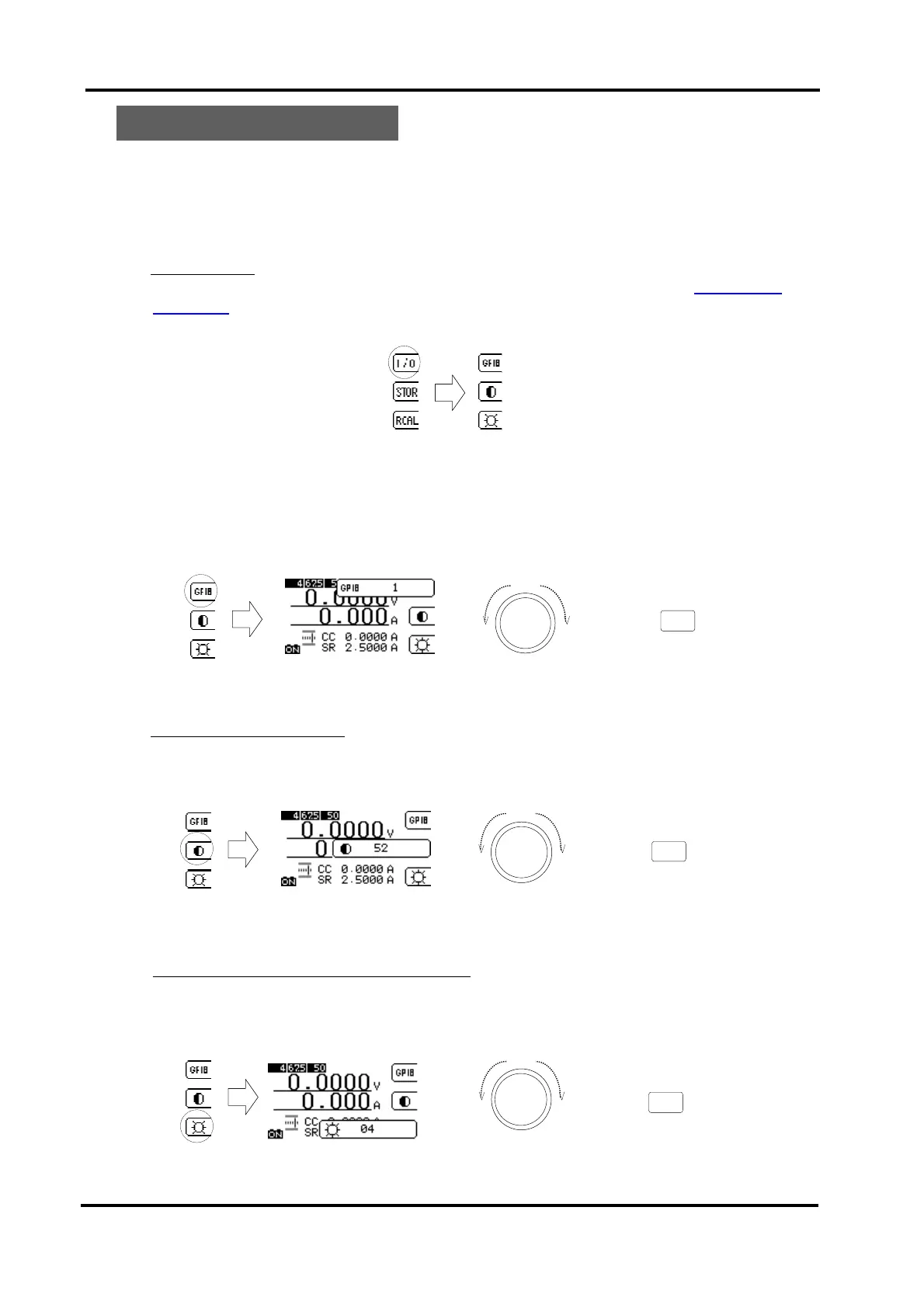

4.4 I/O setting
I/O setting consists of the following settings.
・GP-IB address
・Contrast of the display (LCD)
・Brightness of back light of the display (LCD)
(1) GP-IB address
First, call the “I/O – MEMORY” by the method as described above “ 4.2 Menu
Selection ”.
Press F1 key to display menu for setting the I/O.
Fig. 4-4-1 Selecting of I/O menu
Press F1 key again to display a window for GPIB setting.
Press F1 or turn the rotary knob to display the address you want to select.
Press ENT key or the rotary knob to confirm the selected address.
Fig. 4-4-2 Setting of GPIB address
(2) Contrast of Display (LCD)
Press F2 key of the I/O menu to display a window for contrast setting.
Press F2 key or the rotary knob to adjust the contrast.
Press ENT key to the rotary knob to confirm the adjusted level.
Fig. 4-4-3 Setting of Contrast of LCD
(3) Brightness of back light of the display (LCD)
Press F3 key of the I/O menu to display a window for back light setting.
Press F3 key or the rotary knob to adjust the contrast.
Press ENT key to the rotary knob to confirm the adjusted level.
Fig. 4-4-4 brightness setting of back light of LCD
o
r
P
u
s
h
F
1
F
2
o
r
P
u
s
h
F
3
o
r
P
u
s
h
