82 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

4 Math Waveforms

See Also • "To perform transforms or filters on an arithmetic operation" on page 75

• "Units for Math Waveforms" on page 75

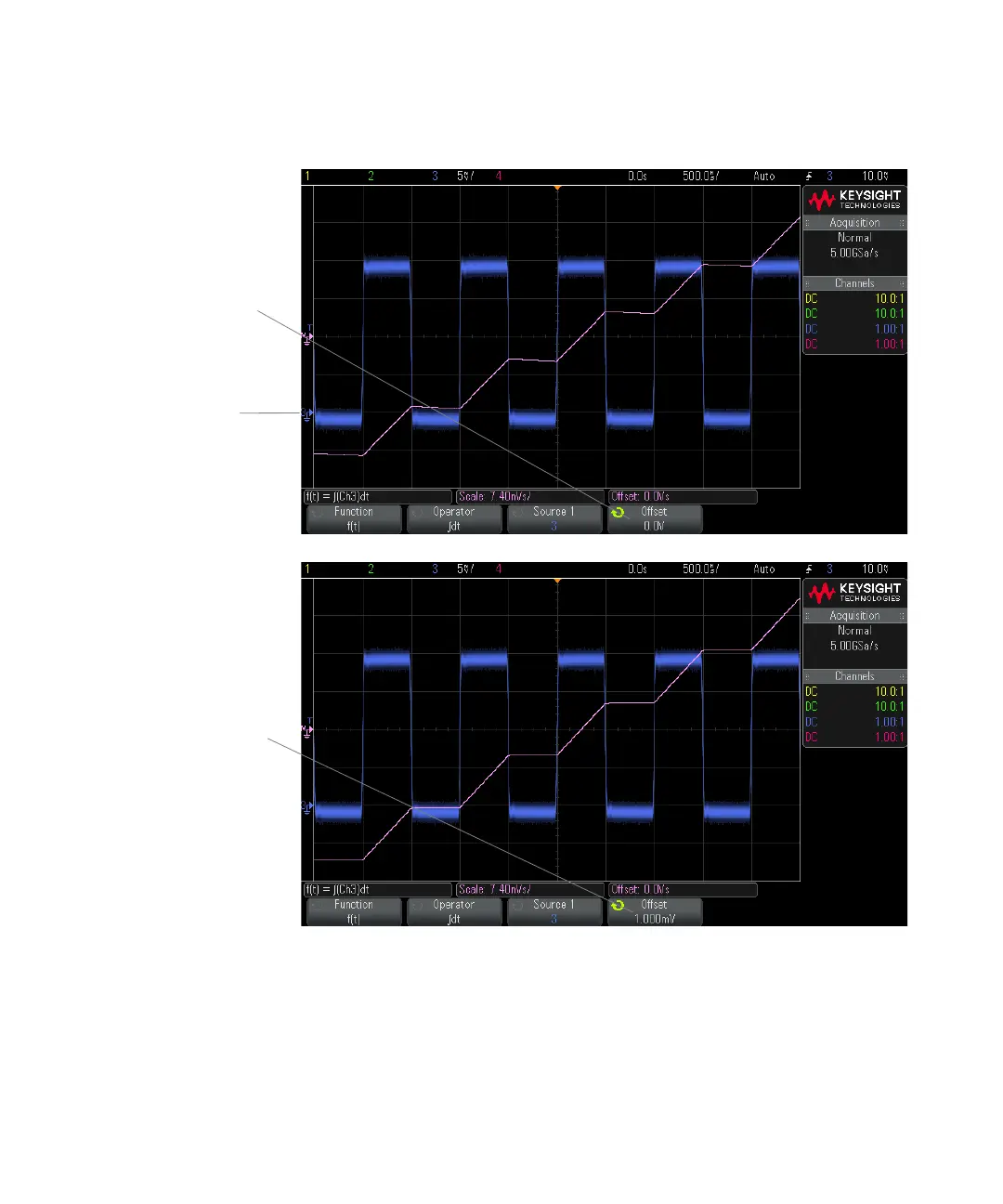

Figure 8 Integrate and Signal Offset

0 V level

Integrate

without

DC offset

correction

Integrate

with DC offset

correction

Default Chapter4
