Installation
P/N 06-237058-001 2-45 February 2012

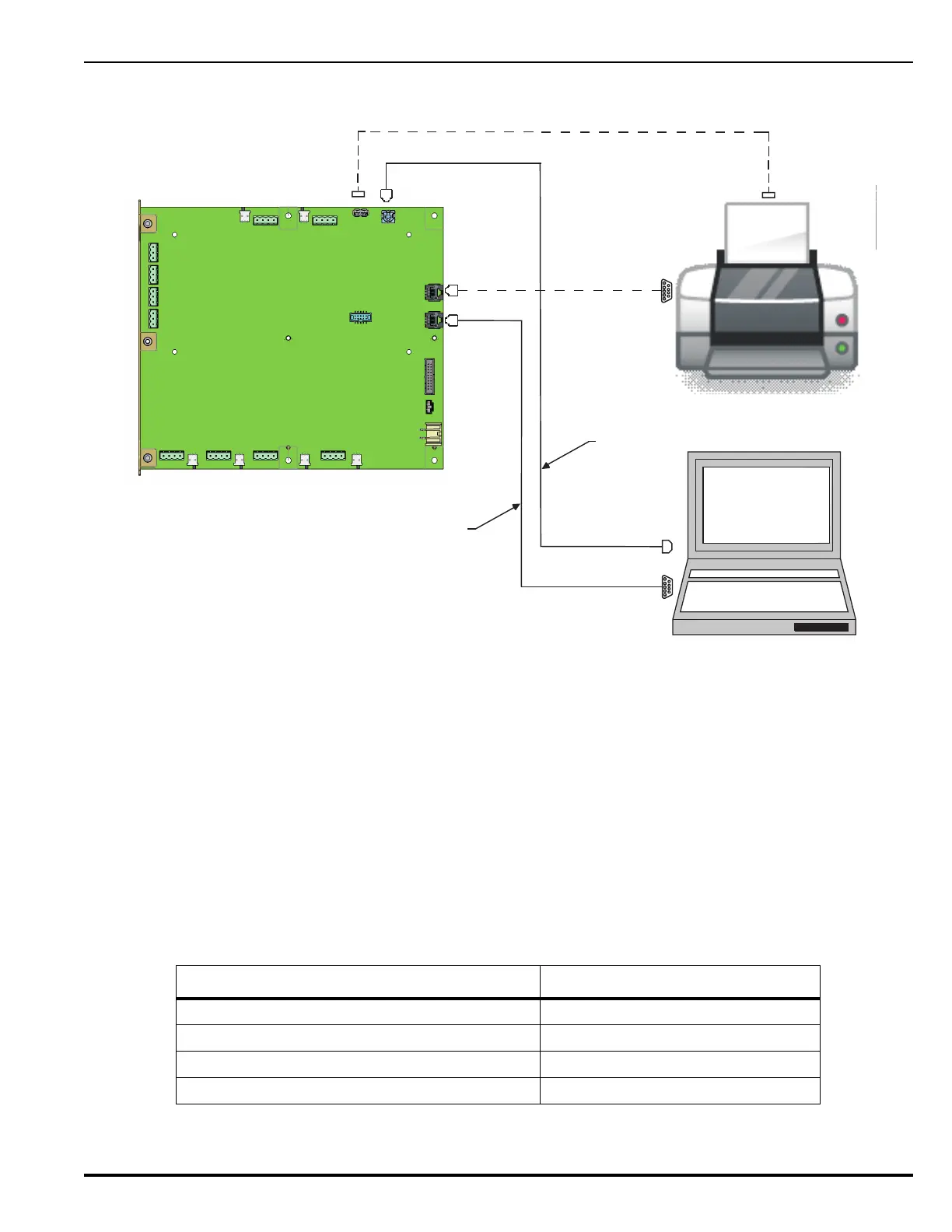

Figure 2-38. Laptop/Remote Computer and Optional Printer Connections to MCB
2-12 SETTING UP REMOTE RS485 PERIPHERAL DEVICES AND ENCLOSURES
The ARIES NETLink control unit can communicate with up to 31 peripheral (remote) devices via its
RS485 communications circuit. The peripheral devices are listed below, along with the maximum
numbers for each particular type of device.
Note: If an integrated LED Annunciator is included in the ARIES NETLink, the total number of
remote devices cannot exceed more than 30 addresses.
Table 2-5. ARIES NETLink System Maximum Peripheral Devices
Device Maximum Number
Remote Display Control Module (RDCM) 15
Remote LED Annunciator Module (R-LAM) 16
Model ATM-L Annunciator Driver Module (ATM-L) 16
Model ATM-R Relay Driver Module (ATM-R) 16
RS-232 Serial Communications Cable
Standard USB Communications Cable
To laptop serial port
To laptop USB port
Laptop Computer
RS232 A
RS232 B
Printer
Main Controller Board
To serial printer
(optional)
To USB printer
(optional)
J11 J6
