Operation
February 2012 4-2 P/N 06-237058-001
4-2.1 The Event Output Control (EOC) Program
Operation of the ARIES NETLink System may be characterized as control by events. Outputs
are activated by user-specified operating instructions contained in the system’s Event Output
Control (EOC) program. The EOC program is triggered by any event that transitions the system
from the Normal Mode to an event-driven, Off-Normal operating state.
Note: All alarm events must be annunciated by public-mode notification.
4-3 USER INTERFACE KEYS AND FUNCTIONS
Operator keys for the ARIES NETLink System are located on the Keypad/Display. Figure 4-1 shows
the location of the operator keys and System Status LEDs on the display. Table 4-2 lists the names
and functions of the operator keys.
Note: The Enclosure door must be open to access the keys.

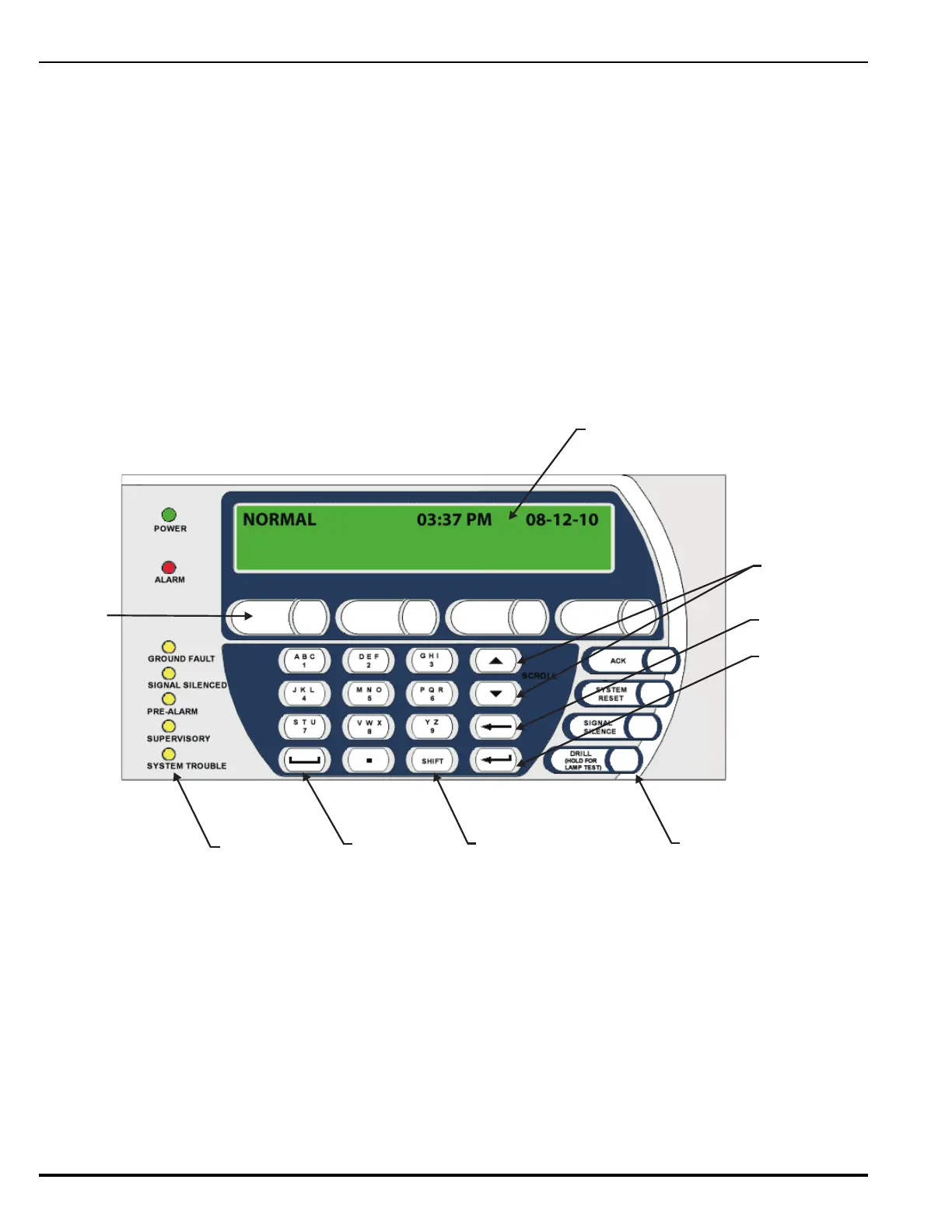

Figure 4-1. ARIES NETLink Keypad/Display
Soft Keys
Scroll Up/Down
Keys
Backspace Key
Enter Key
Shift Key
Space Key
Operator
Control
Keys
System Status
LEDs
160-Character Liquid Crystal Display with
LED Back Lighting (4 Lines x 40 Characters)
To Next Page
