Kidde Fire Systems ARIES NETLink

ARIES NETLINK For City Of Chicago Applications
P/N 06-237058-001 G-5 February 2012
G-3.2 Field Wiring Connections
All field wiring connections are made via terminal blocks with screw-type terminations which can
adequately hold #12 AWG solid conductors. Each terminal is clearly numbered for visible
identification. A conduit knockout is provided at the top of the unit. Wire sizes of #12 AWG, #14
AWG, #16 AWG and #18 AWG are acceptable for use.
To access internal connections, turn the rightmost key switch and unlock/open the door.
Refer to Figure G-5 for a guide to connections.

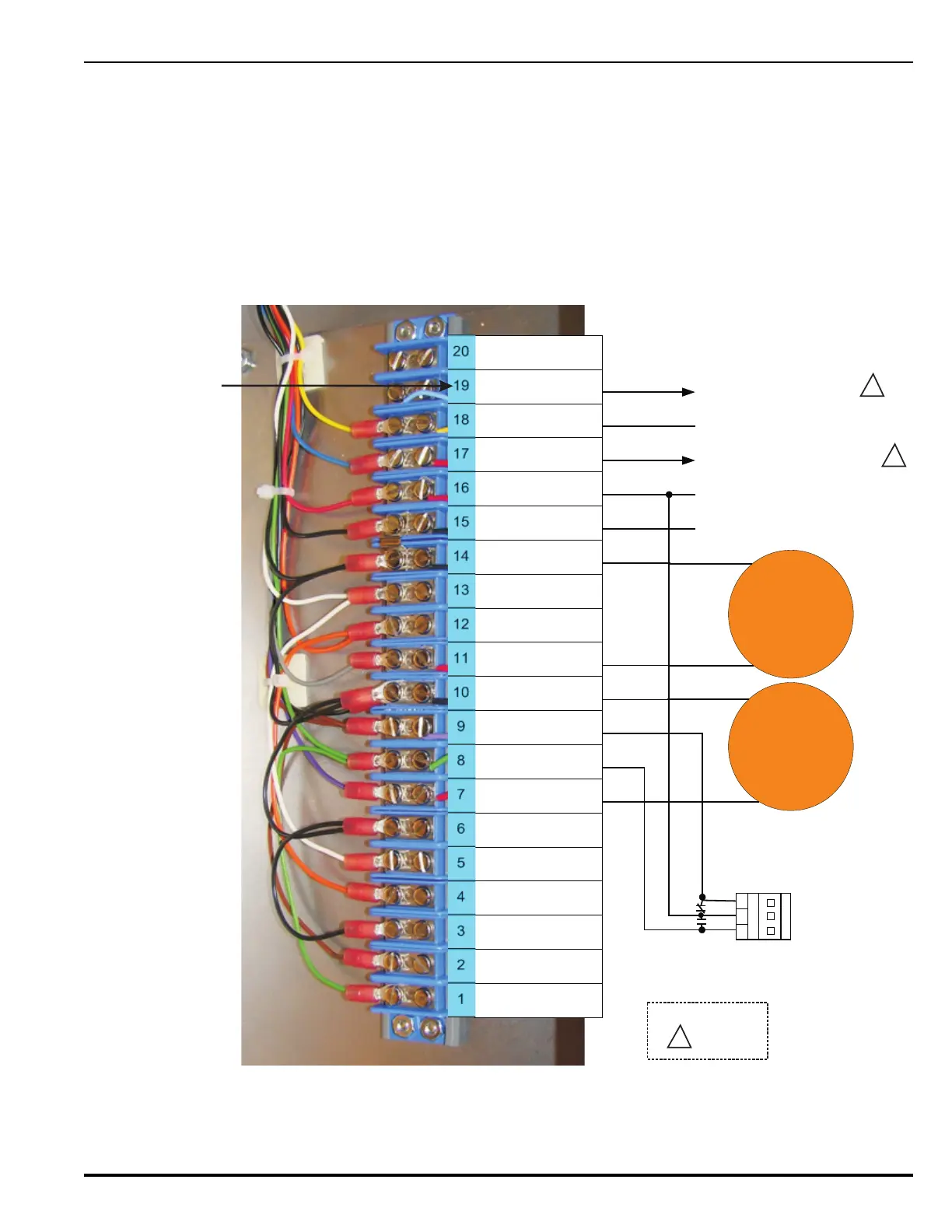

Figure G-5. Control Box Connections
City Tie
Trouble Bell
Fire Alarm
Panel
Trouble Bell
NO
C
NC
TBL R ELAY
SPARE
CITY TIE –
CITY TIE +
CITY TIE +
+24 VDC
-24 VDC
CT TBL BELL -24V
IN & TO BELL
CT TBL BELL +24V IN
NORMAL NOT DISCON
CT TBL BELL +24V IN
WHEN DISCON ONLY
CT TBL BELL +24V
IN TO BELL
FA TBL BELL -24V IN
& TO BELL
FA TBL BELL +24V
EXCEPT FOR IN TBL
FA TBL BELL +24V IN
TBL ONLY
FA TBL BELL TO
+24V OF BELL
CT TBL BELL
REMOTE 1
CT TBL BELL
REMOTE 2
CT TBL BELL
REMOTE 3
FA TBL BELL
REMOTE 1
FA TBL BELL
REMOTE 2
FA TBL BELL
REMOTE 3
To City Box Minus side
Fire Alarm Control Panel Local
Energy Output Positive side
To City Box Positive side
Fire Alarm Control Panel
Auxillary Output Positive side
Fire Alarm Control Panel
Auxillary Output Minus side
Fire Alarm Control Panel
Local Energy Output
Minus side
Legend:
Supervised
S
S
S
