ARIES NETLINK For City Of Chicago Applications
P/N 06-237058-001 G-3 February 2012
G-2.3 City Disconnect Switch
The ability to externally disconnect the City Tie circuit is provided through a door-mounted key
switch. The key switch is located in the middle of the front panel and has two states: Normal and
Disconnected. Turning the key switch to the “Disconnected” position causes the white pilot light to
light. After the key is positioned as desired, it should be removed and stored with designated
personnel.
G-3 INSTALLATION AND CONNECTIONS
G-3.1 Labeling
Inside the provided hardware kit are adhesive-backed labels which should be placed on the front of
the ARIES NETLink control unit:
1. Install the “Fire Alarm System (Kidde)” label on the bottom left corner of the control unit door as
shown in Figure G-3.
2. Install the “Chicago Approval No.” label on the dead front cover as shown in Figure G-3.

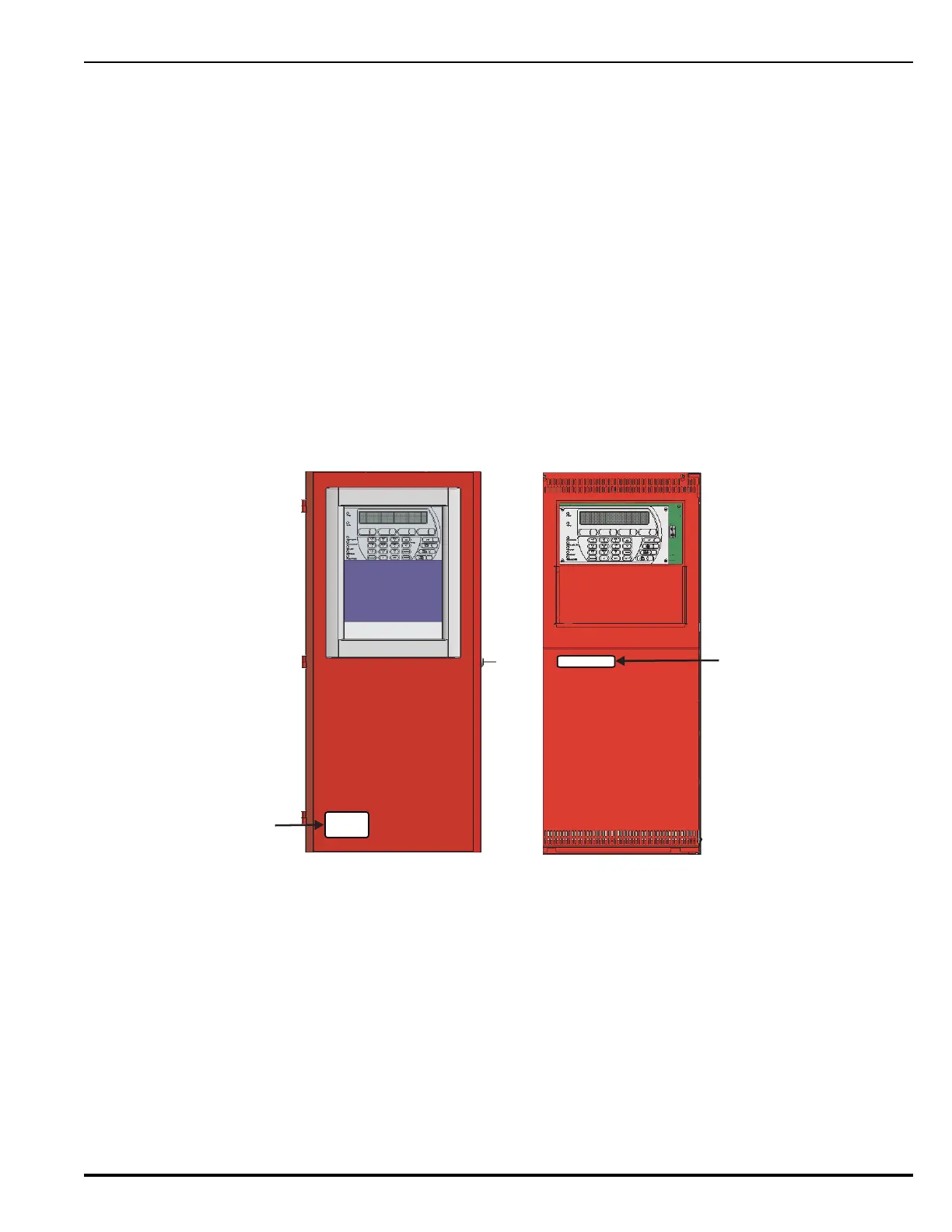

Figure G-3. Door and Dead Front Cover Label Placement
Apply label
here.
Apply label
here.
Control Unit Dead Front Cover
To Next Page
