Conversion Instructions for PEGAsys
P/N 06-237058-001 H-1 February 2012
APPENDIX H
CONVERSION INSTRUCTIONS FOR PEGASYS
H-1 INTRODUCTION
This appendix provides instructions on how to convert a PEGAsys
TM
control unit into a fully-
functional 2-Tiered ARIES NETLink
TM
control unit, housed in the existing PEGAsys enclosure.
Note: This procedure is not applicable to the PEGAsys LV control unit.
H-2 CONTENTS OF PEGASYS CONTROL UNIT RETROFIT KIT
This procedure requires the purchase of one (1) Retrofit Kit (P/N 76-800400-001) for each PEGAsys
control unit to be retrofitted. Note that if retrofitting a networked system, all panels will need to be
upgraded at the same time. The following parts are included in the Retrofit Kit:

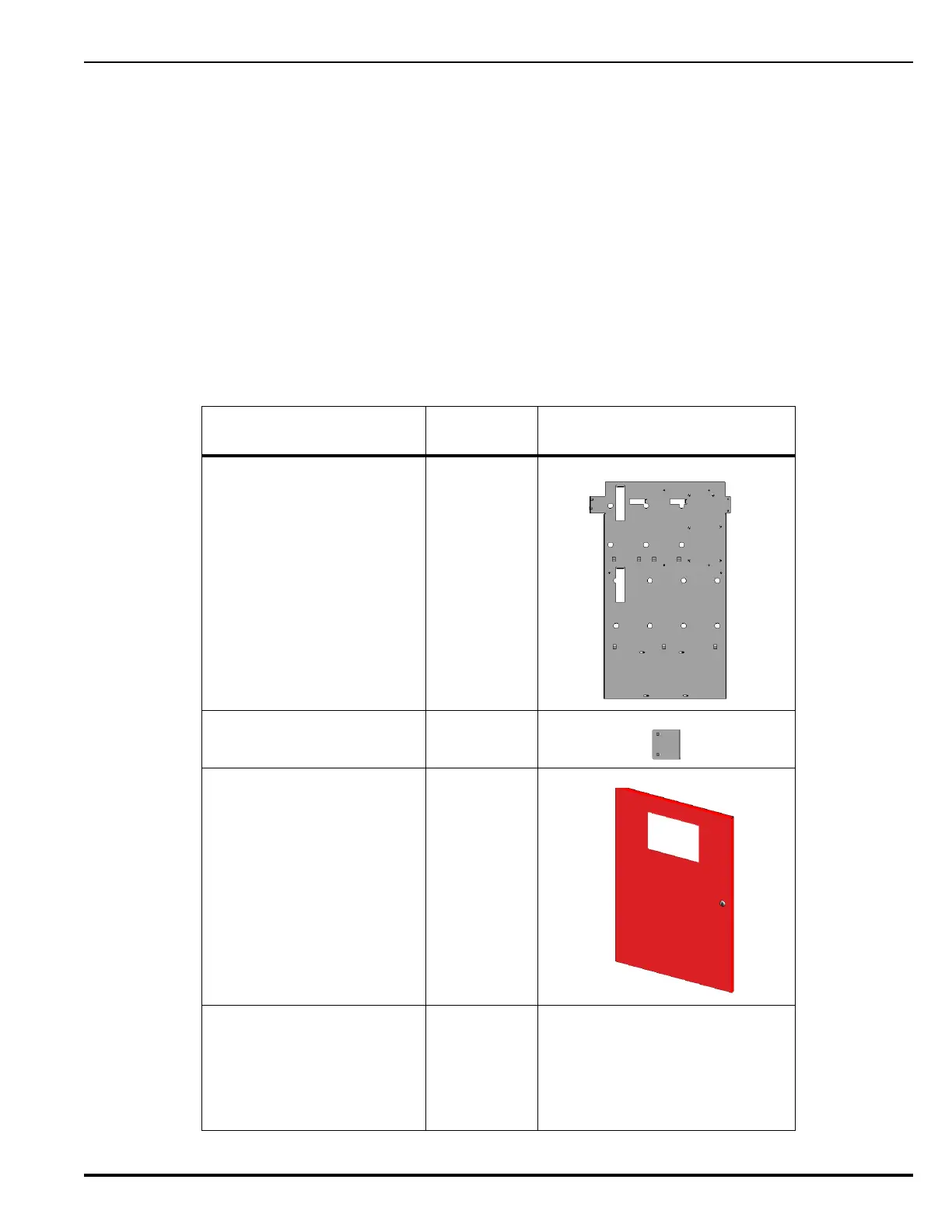

Part Name
Quantity
Provided
Illustration
base plate
1
base plate bracket
1
replacement door
1
retrofit installation
hardware
1 package
•#6 nuts (4)
•#8 nuts (2)
• #10 nut (1)
• self-threading screw (1)
• #8 machine screw/nut (1)
