ARIES NETLink For Canadian Applications
P/N 06-237058-001 F-1 February 2012
APPENDIX F
ARIES NETLINK FOR CANADIAN APPLICATIONS
F-1 CANADIAN APPLICATION-STYLE ENCLOSURES
The ARIES NETLink
TM
enclosure for Canadian Applications (Figure F-1 and Figure F-2) is divided
into two or three tiers and provides room to house the Power Supply/PMU Assembly, Main Controller
Board, Keypad/Display, integrated LED Annunciator, Expansion Card Cage and two batteries (up to
17-AH each). Either system can be expanded by adding one or more Expansion Enclosures. The
ARIES NETLink for Canadian Applications is operated in the same manner as the standard ARIES
NETLink (as described in this manual).
The Canadian Application is similar to the standard Main Enclosure, with the following exceptions:
• A second (dead) front panel is included to prevent accidental operator exposure to AC voltages
and access to internal electronics as required by ULC-S527-99. The dead front cover is
constructed of the same steel and matching color as the ARIES NETLink and is installed between
the front door and its internal components. With the dead front cover installed, an operator has
access to the front Keypad/Display and LED Annunciator only.
• An integrated LED Annunicator is included on the front of the panel beneath the Keypad/Display.
Optionally, the LED Annunciator can be housed inside the Remote Enclosure. (A blanking plate
will be substituted on the front panel if the LED Annunciator is not integrated).

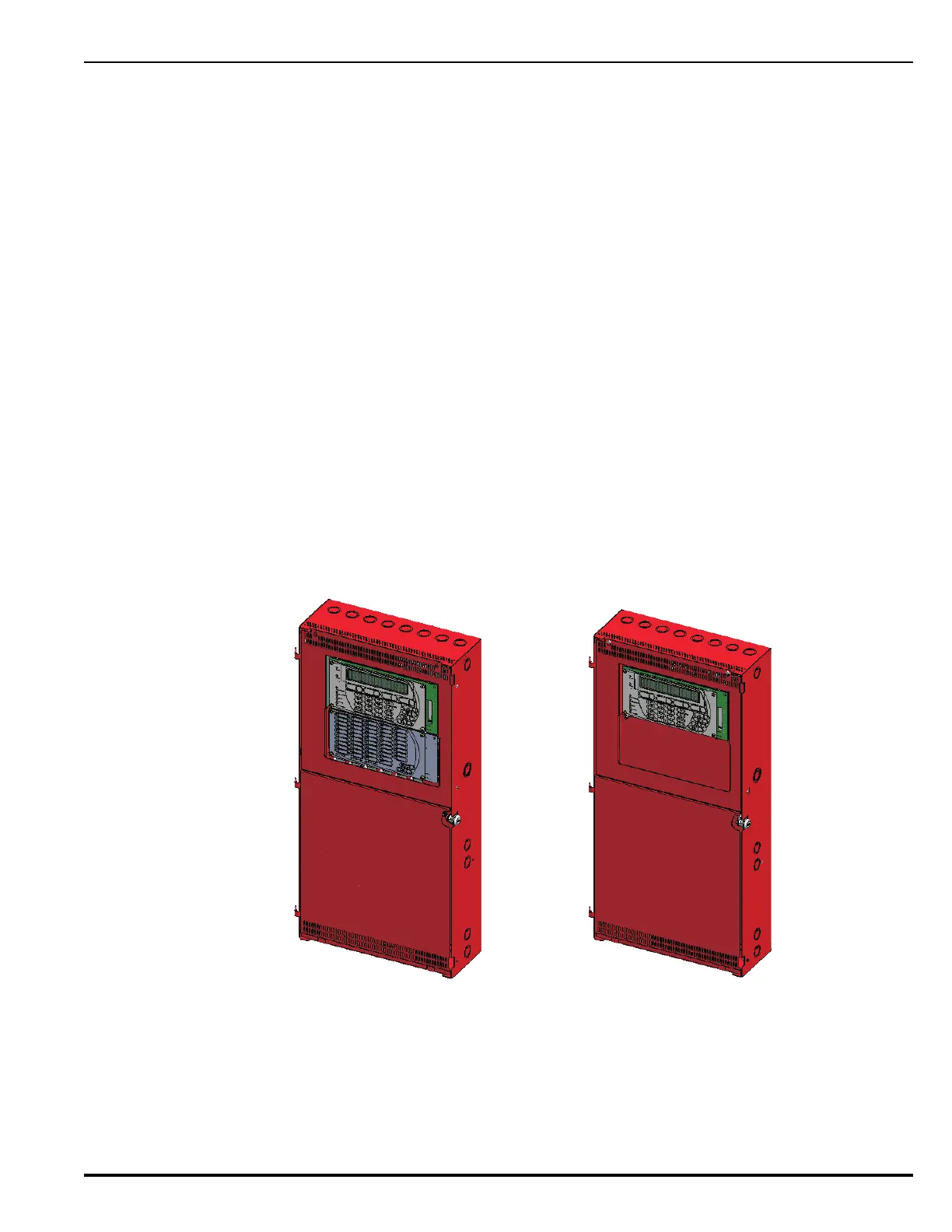

(a) Control Unit with Integrated LED Annunciator (b) Control Unit with Blanking Plate
Figure F-1. 3-Tiered Canadian Application Enclosures (shown with Enlosure Door removed)
