2-14.2 Fiber Optic Converter Module (FOCM) Wiring - Dual Channel
For greater communication security and redundancy, an optional Add-On module can be installed in
this enclosure to provide an additional channel. Note that this is most effective if the second channel
is installed in a different pathway from the first. Refer to the wiring diagram below for a dual channel
system.
To mount the Add-On Channel
: Position the channel as shown in Figure1-15 in Chapter 1,
Introduction. Attach to the plate by fastening the top and bottom mounting screws. Secure in place.

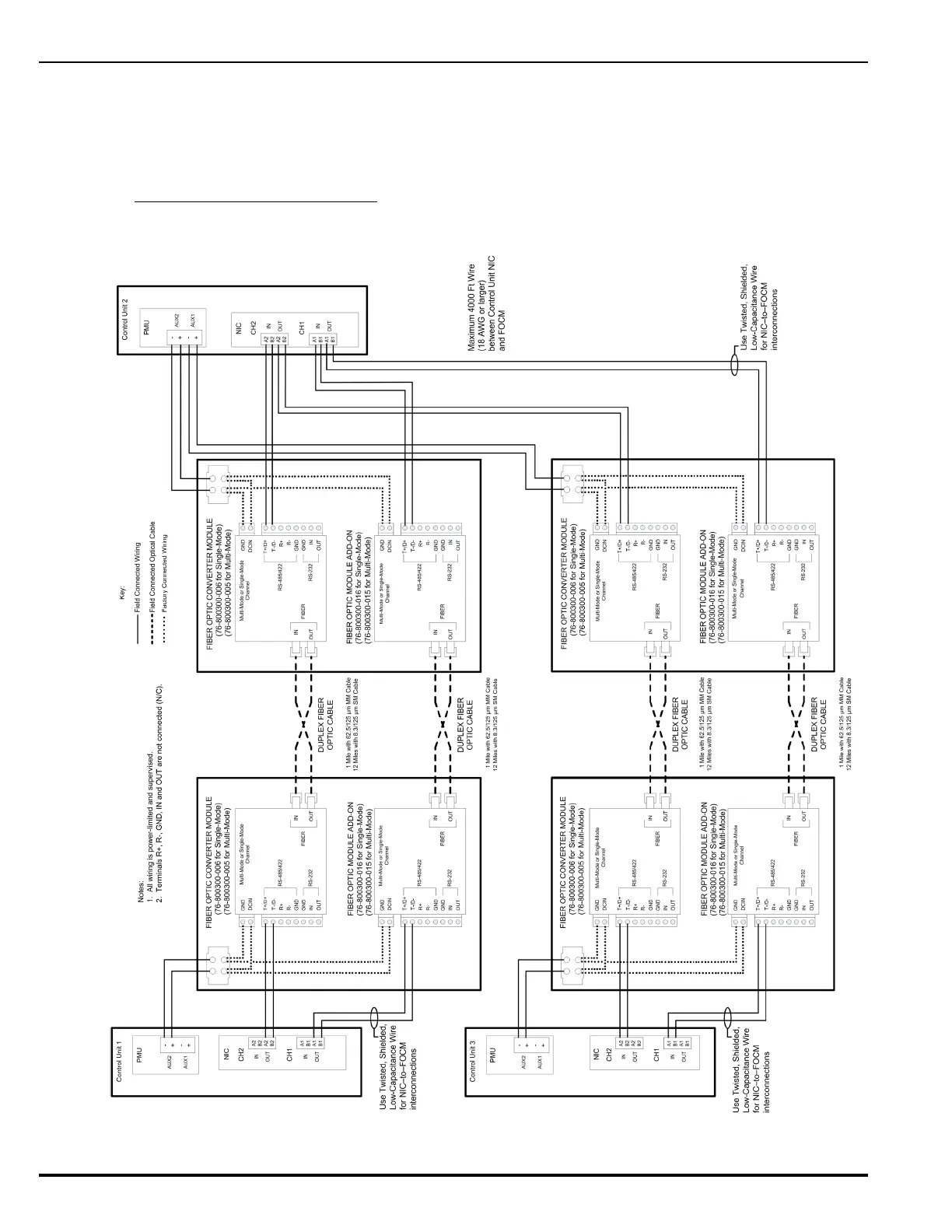

Figure 2-46. Wiring Diagram For Dual Channel FOCM
