2-10 INTERNET COMMUNICATIONS MODULE (ICM) WIRING
Refer to the wiring diagram shown below (Figure 2-35) for ICM Card connections. Refer to
Section 2-7.2, Inserting and Securing an Expansion Card for instructions on how to install the ICM
Card.

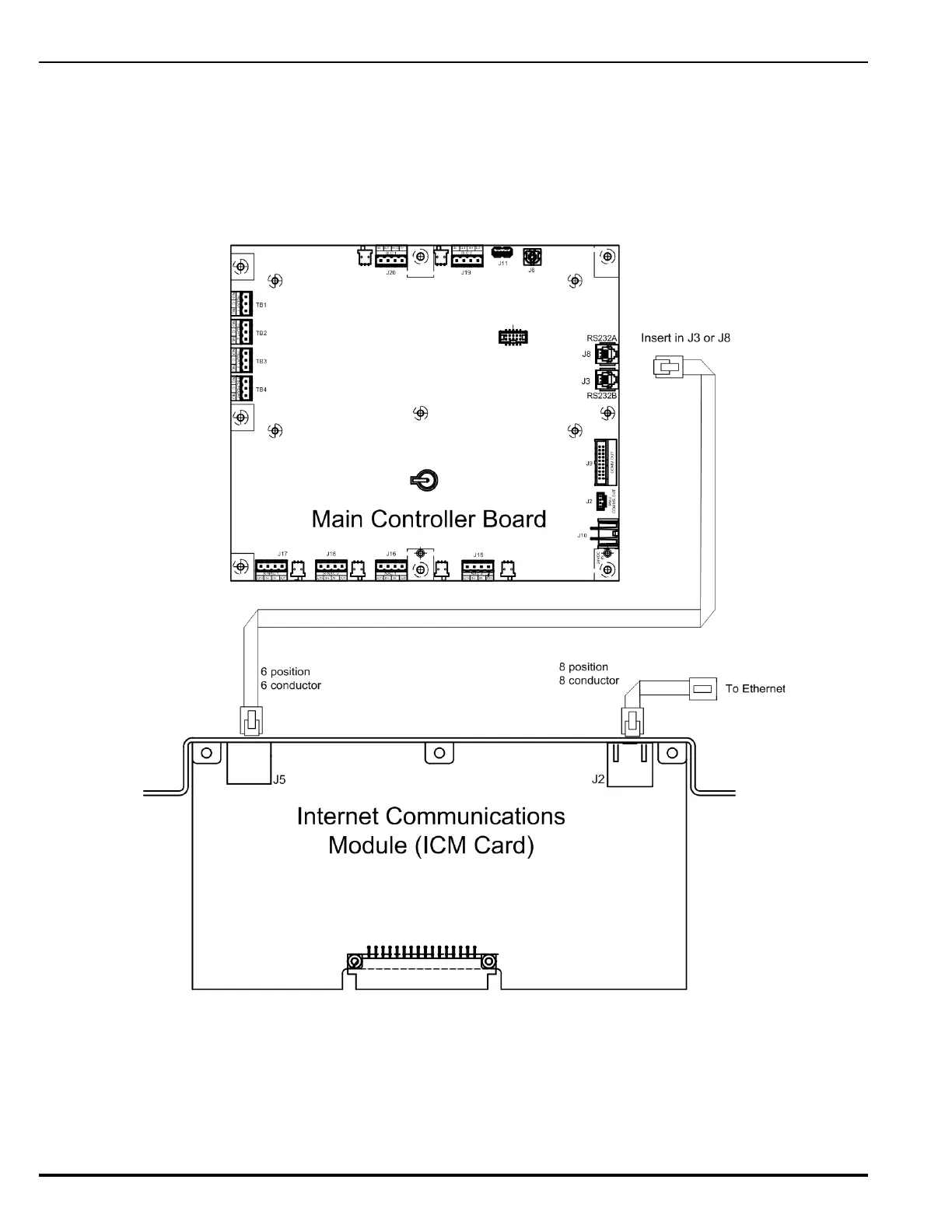

Figure 2-35. ICM Card Wiring Diagram
