Routings for Power-Limited and Non-Power-Limited Wiring
February 2012 E-6 P/N 06-237058-001

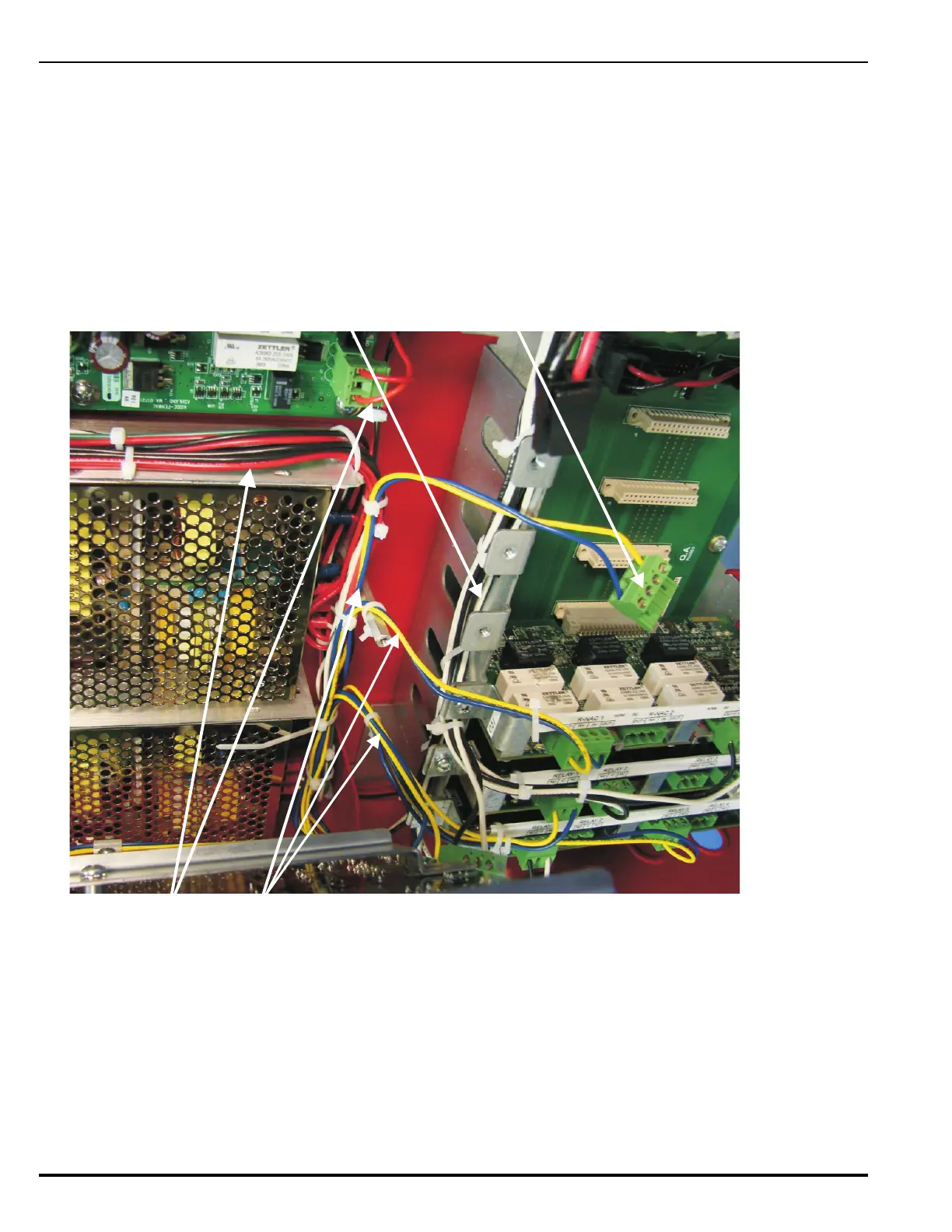

Figure E-5. An Example of a Typical ARIES NETLink Wiring Scenario - MCB Opened
Note: Figure E-5 illustrates a typical wiring scenario where 3 expansion cards are included in the system with power-limited
wiring (Black/White wires) and non-power-limited wiring (Blue/Yellow wires) properly spaced. Using standard wiring tools
(such as P-clamps and tie-wraps), in conjunction with the enclosure standoffs, brackets and card cage frame, power-limited
and non-power-limited types of circuits can easily be connected and harnessed to meet the 1/4-inch separation requirement.
Terminal Block here shown
disconnected from MCB
Non-power-limited wiring
Non-power-limited wiring is
shown harnessed and
bundled underneath
power supply units with
1/4-inch (min.) separation
distance from power-limited
wiring.
Power-limited wiring
