Conversion Instructions for PEGAsys
P/N 06-237058-001 H-5 February 2012
9. On the top tier, install the Power Supply and PMU Board according to the installation
instructions provided in Chapter 2 of this manual (or packaged individually with the equipment).
10. Next, install the Main Controller Board and Keypad/Display on the top tier according to the
installation instructions provided in Chapter 2 of this manual (or packaged individually with the
equipment).
11. On the bottom tier, install any optional equipment according to the installation instructions
provided in Chapter 2 of this manual (or packaged individually with the equipment).
12. After all electronics have been installed, remove tape from wires which were previously taped and
place the replacement door on the enclosure hinges.
13. Follow the steps in Section 4-9 of Chapter 4, Operation, to start up the system.

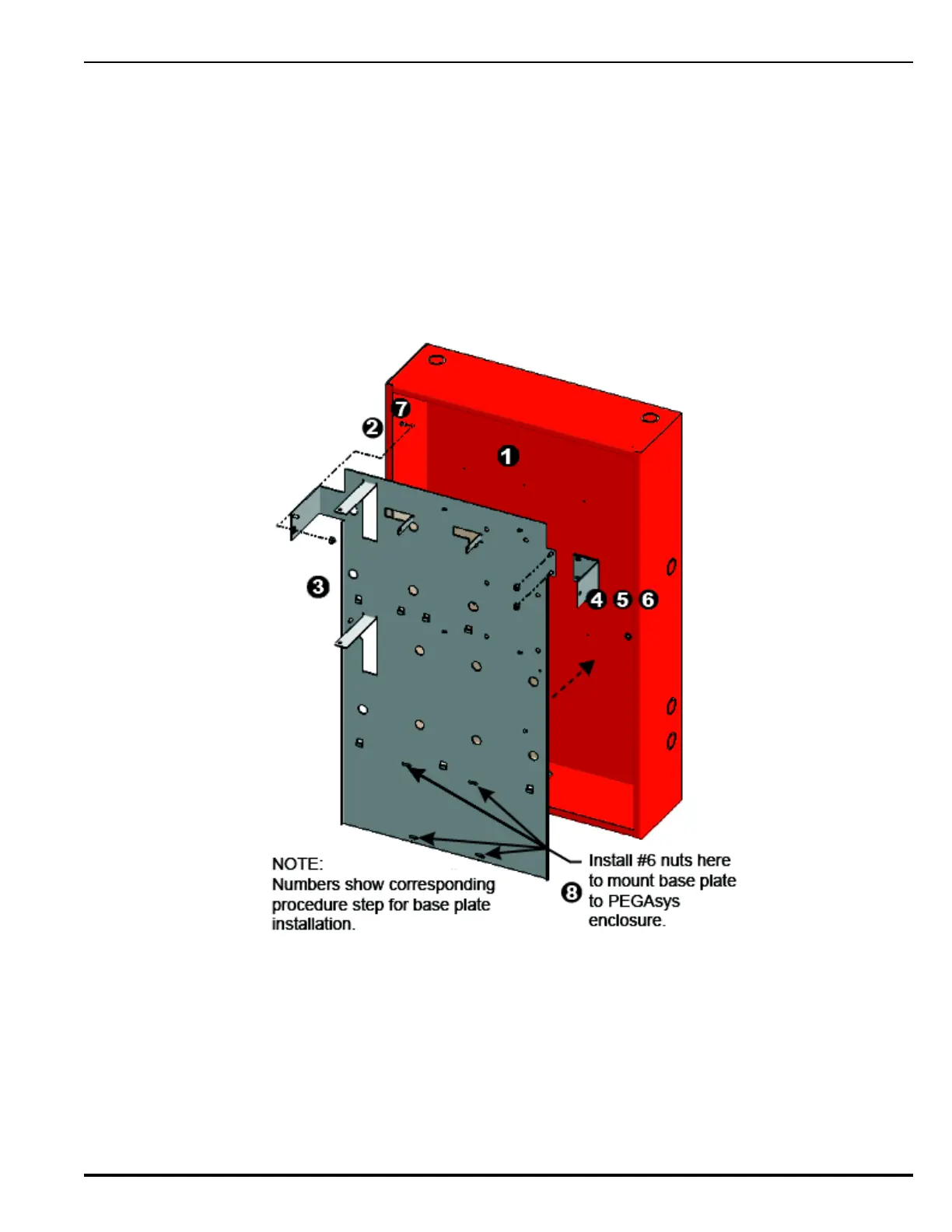

Figure H-1. Installing the Base Plate
