February 2012 1-28 P/N 06-237058-001
SmartOne Addressable
Relay Module,
Model AO
The Model AO Addressable Relay Module provides
an unpowered, Form-C contact for remote control
applications. The AO Module is designed to be
mounted in the electrical box of the device being
controlled.
SmartOne Addressable
Signal Module,
Model ASM
The Addressable Signal Module permits notification
appliances to be controlled by commands issued via
the ARIES NETLink’s SLC. The ASM is supplied
with a thermoplastic mounting cover and is
designed to mount in a standard 4-11/16” electrical
box or a 4” square, extra-deep electrical box.
Note: The ASM cannot be programmed to
synchronize with ARIES NETLink NAC and R-NAC
outputs.
PEGAsys Addressable
Loop Module (PALM)
The PEGAsys
TM
Addressable Loop Module (PALM),
is a monitor module that enables the ORION XT
High Sensitivity Smoke Detector (HSSD) to report
Pre-alarm, Alarm, and Trouble signals to the ARIES
NETLink control unit via its signaling line (SLC)
circuit. The PALM mounts inside the ORION XT
detector housing.
Note: The PALM address cannot be set via the
Handheld Programmer. Use either the ORION
Configuration Software or the ARIES NETLink’s
keypad/display to set the PALM’s address.
AIR-Intelligence
SmartOne Addressable
Protocol Interface Card
(APIC)
The AIR-Intelligence SmartOne APIC is an interface
module which integrates AIR-Intelligence High
Sensitivity Smoke Detectors with the ARIES
NETLink control unit via its signaling line (SLC)
circuit. The APIC mounts inside the AIR-Intelligence
detector housing.
Note: Device addresses cannot be set via the
Handheld Programmer; addresses must be set by
moving switches on either the APIC or Command
Module.
Isolator Modules Isolator modules are automatic switches that open
a segment of the signaling line circuit when a short-
circuit fault is detected in that segment. The
remainder of the signaling line circuit continues to
function normally and is unaffected by the short-
circuit fault. The isolator modules will close and
resume normal operation when the short-circuit
fault is removed.

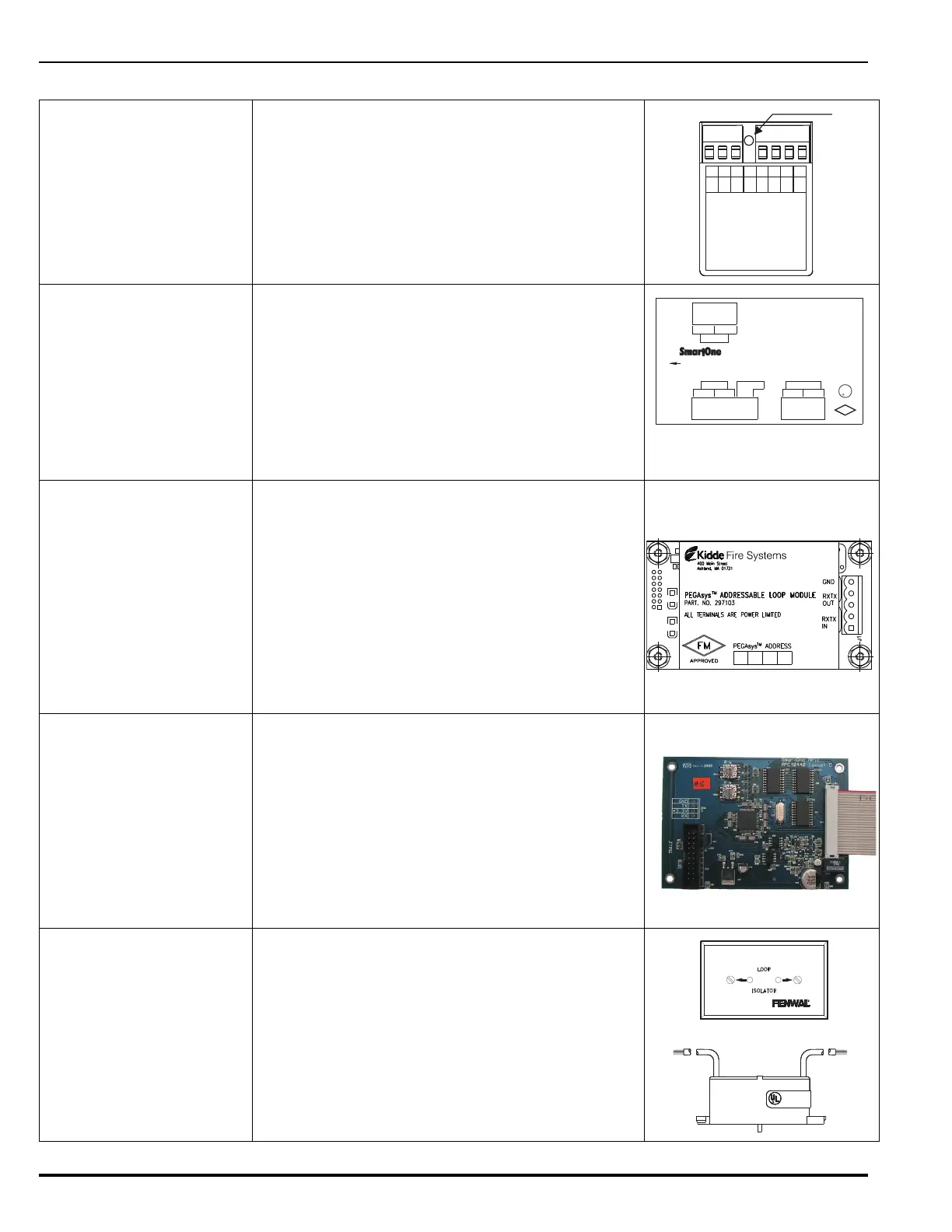

Table 1-6. Supported SmartOne Addressable Modules
MODEL AO
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-408004-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120°F
765
4321
06-235577-001
PC PC PC PC
(+) (-) (+) (-)
N/C
COM
N/O
TERMINALS 5-7 ARE POWER LIMITED
TERMINALS 1-4 ARE POWER LIMITED
LED
A B BA
-+-+
+ - - +
KIDDE-FENWAL, INC.KIDDE-FENWAL, INC.
ASHLAND, MA 01721 U.S.A.ASHLAND,
MA 01721 U.S.A.
CAT. NO. 70-200200-001CAT.
NO. 70-200200-001
INSTRUCTIONS P/N 06-235717-001INSTRUCTIONS
P/N 06-235717-001
ALL OTHERS - POWER LIMITEDALL OTHERS
- POWER LIMITED
DEVICEDEVICE
ADDRESS #ADDRESS
# _____ _ _ _
AUX./AUDIO MODEAUX./AUDIO
MODE
SETTINGS
PC LINE TERMINALS - POWER LIMITEDPC LINE TERMINALS - POWER LIMITED
ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)
_____ _ _ _
INSTRUCTIONS P/N 06-235717-001INSTRUCTIONS
P/N 06-235717-001
ADDRESS #ADDRESS #
SETTINGS
AUDIO
P1=1&2
MODE
S1=3 ONS1=3
ON
AUX. INAUX. IN
+ - + -
TROUBLE
CKT.
-
OUTPUT CKT.
-+ +
AUX./AUDIO MODEAUX./AUDIO MODE
AUXILIARYAUXILIARY
MODE
P1=2&3
S1=1&2 ONS1=1&2
ON
PC LINEPC LINE
A B A B
DEVICEDEVICE
ALL OTHERS - POWER LIMITEDALL OTHERS
- POWER LIMITED
CAT. NO. 70-200200-001CAT.
NO. 70-200200-001
ASHLAND, MA 01721 U.S.A.ASHLAND,
MA 01721 U.S.A.
KIDDE-FENWAL, INC.KIDDE-FENWAL,
INC.
FM
APPROVED
R
L
U
TM
Laboratories
Underwriters
R
LISTEDLISTED
