Kidde ARIES

Listed and Approved Releasing Devices
August 2013 C-2 P/N 06-236530-001
C-3 UL LISTED AND FM APPROVED SOLENOIDS
The solenoids in Table C-3 are UL Listed and FM Approved as noted.
* Must be used in conjunction with microswitch P/N 87-120039-001 for momentary operation.
See Figure C-1 and Figure C-2.

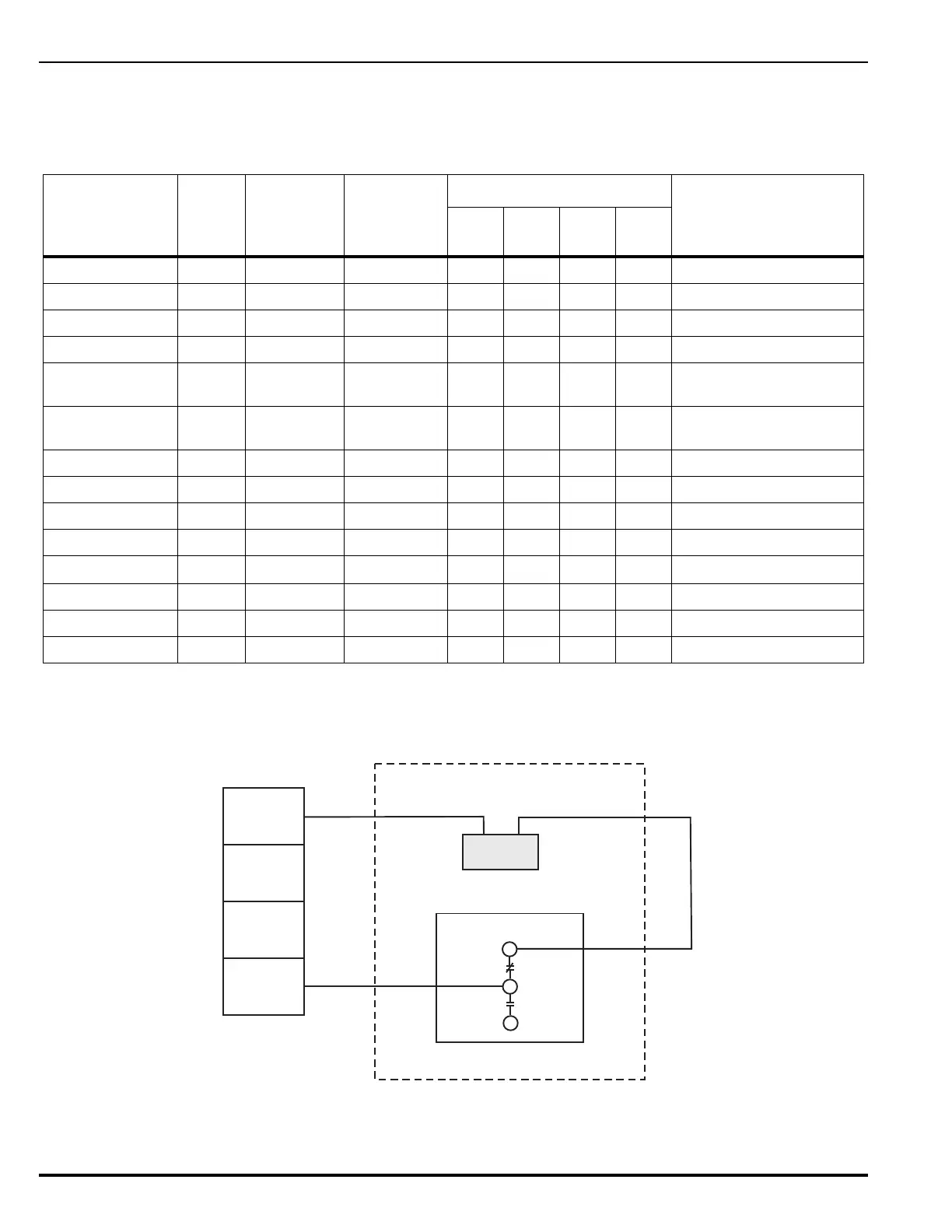

Figure C-1. Agent Release Circuits for XV Control System (P/N 87-120099-001 and 87-120099-002) and
CXV Control System (P/N 93-487100-001)
Table C-3. UL Listed and FM Approved Solenoids
Device
I
(max.)
A
Resistance
(min.)
ohms
“On” Time
Wire Length (Ft.)
Comment
12
AWG
14
AWG
16
AWG
18
AWG
890181 2.40 10.0 Momentary 300 200 120 —
897494 1.50 15.9 Continuous 380 240 150 — Max. One (1) per System
486500-01 0.240 103.0 Continuous 3000 2000 1200 800
81-100000-001 0.440 59.0 Continuous 2300 1460 915 570
06-118329-001 0.225 108.0 Continuous 3000 2000 1200 800 FM Approved; Not UL
Listed
06-118384-001 0.520 46.0 Continuous 1440 760 480 340 UL Listed; Not FM
Approved
38-509837-001 0.400 60.0 Continuous 2300 1460 915 570
38-509834-001 0.632 38.0 Continuous 1050 550 330 240
87-120099-001* 2.00 12.0 Momentary* 360 240 140 — Max. One (1) per System
87-120099-002* 2.00 12.0 Momentary* 360 240 140 — Max. One (1) per System
93-487100-001*
2.00 12.0 Momentary* 360 240 140 — Max. One (1) per System
FM Group A 0.458 52.0 Continuous 1440 760 480 340
FM Groups B,D 0.700 34.0 Continuous 940 500 300 220
FM Groups E,G 0.420 57.0 Continuous 1570 760 525 370
BLUE
N.O.
N.C.
YELLOW
SOLENOID P/N 83-100034-001
MICROSWITCH P/N 87-120039-001
R1+
R2+
R1-
R2-
TB14 OR TB15
