Chapter 1: Installation and wiring
P/N 3102352-EN • REV 005 • ISS 28DEC18 3

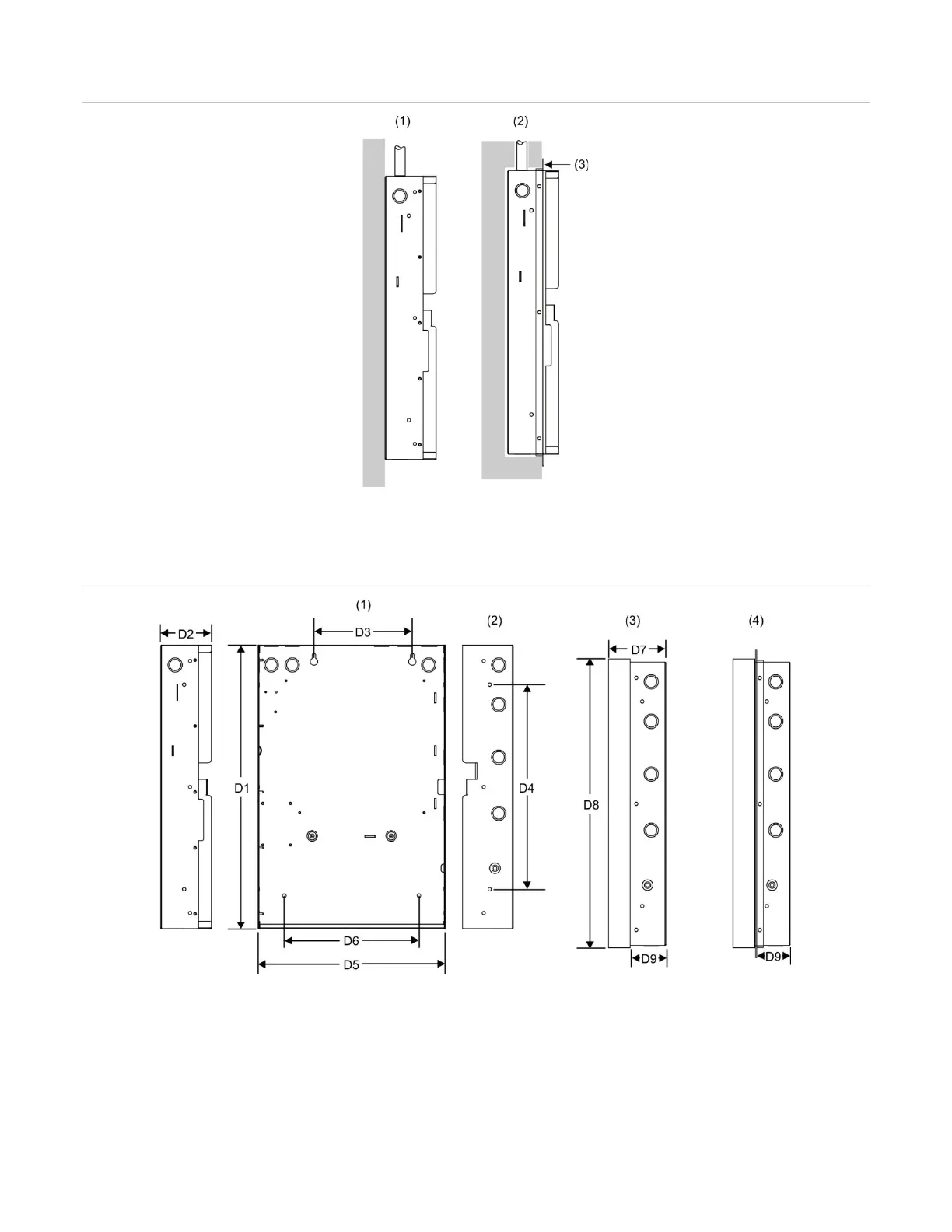

Figure 1: Surface and semiflush mounting details
(1) Surface mount
(2) Semiflush mount
(3) Trim skirt
Figure 2: Panel backbox, backbox with door, and backbox with door and trim ring attached
(1) Surface mounting holes
(2) Semiflush mounting holes
(3) Backbox with door attached
(4) Backbox with door and trim ring attached
