In-suite signal silence applications
This section provides high level instructions for creating an in-suite signal silence application
based on the use of correlation groups. Additional background material and detailed
instructions are also available. See:
• “What is in-suite signal silence?” on page 38
• “Programming in-suite signal silence” on page 85
• “What is a correlation group?” on page 36
• “Correlation group programming” on page 80

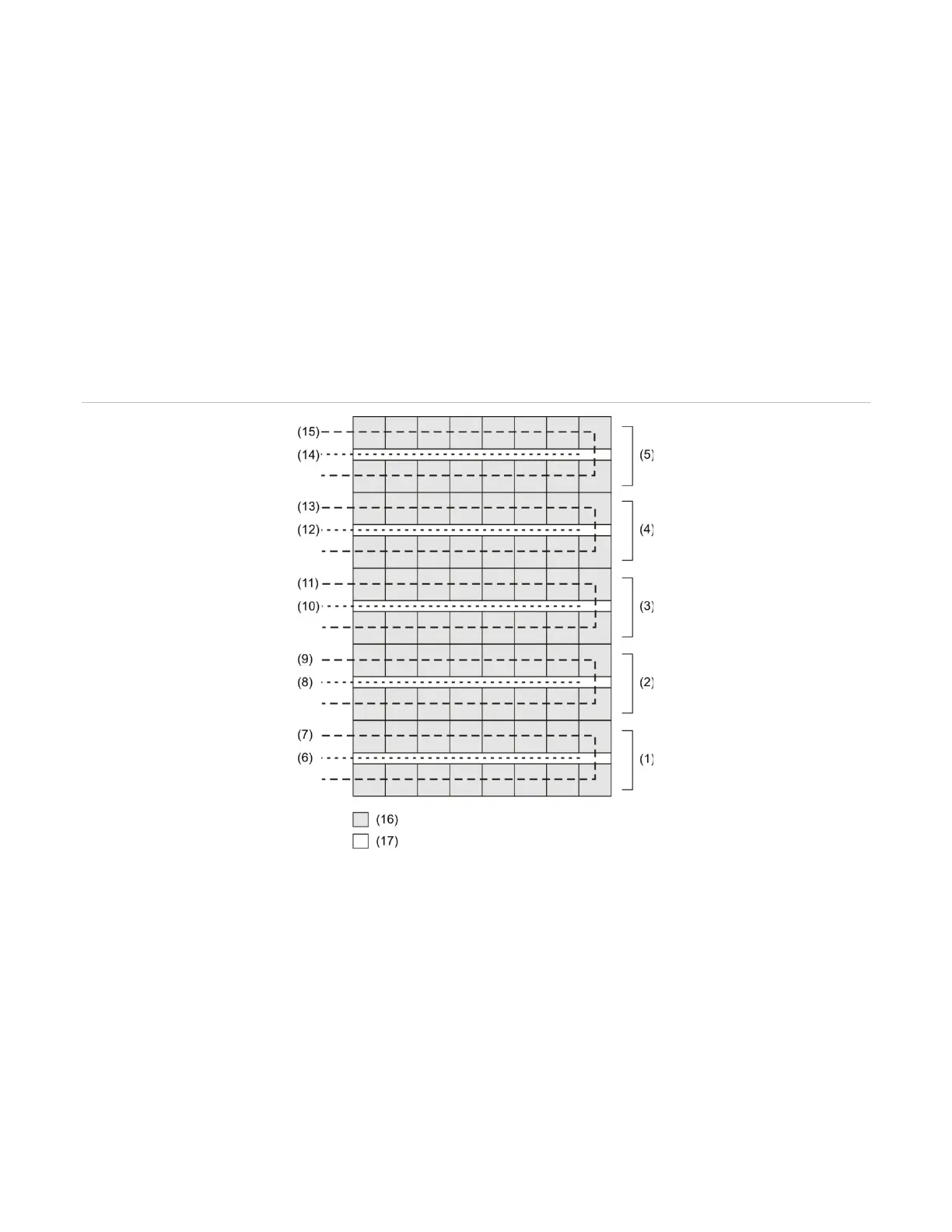

Figure 61: Building with a separate audible circuit for each floor and separate circuits for audibles within
and not within dwelling units
(1) Floor 1
(2)
Floor 2
(3)
Floor 3
(4)
Floor 4
(5)
Floor 5
(6) NAC 1
(7) NAC 2
(8) NAC 3
(9) NAC 4
(10) NAC 5
(11) NAC 6
(12) NAC 7
(13) NAC 8
(14) NAC 9
(15) NAC 10
(16) Rooms
(17) Hallways
Wiring
In-suite signal silence applications in residential occupancy buildings require separate signal
circuits for each floor area. In addition, each floor area requires separate circuits for:
• Audible devices located within-suites or dwelling units
