Setting up the programmable keys
There are two control panel buttons that can be assigned to correlation groups in order to:
• Disable a correlation group or members of a correlation group
• Activate and restore the outputs in a correlation group
• Unlatch all latched output devices globally
Notes
• You should not disable the SIGA-REL device when it is part of a correlation group.
• You should not configure user keys as correlation group input devices.
By default, the buttons are not programmed. The buttons can be labeled to indicate their
function with a slip-in label. To operate the buttons, you must be logged on with a level one
password or greater.

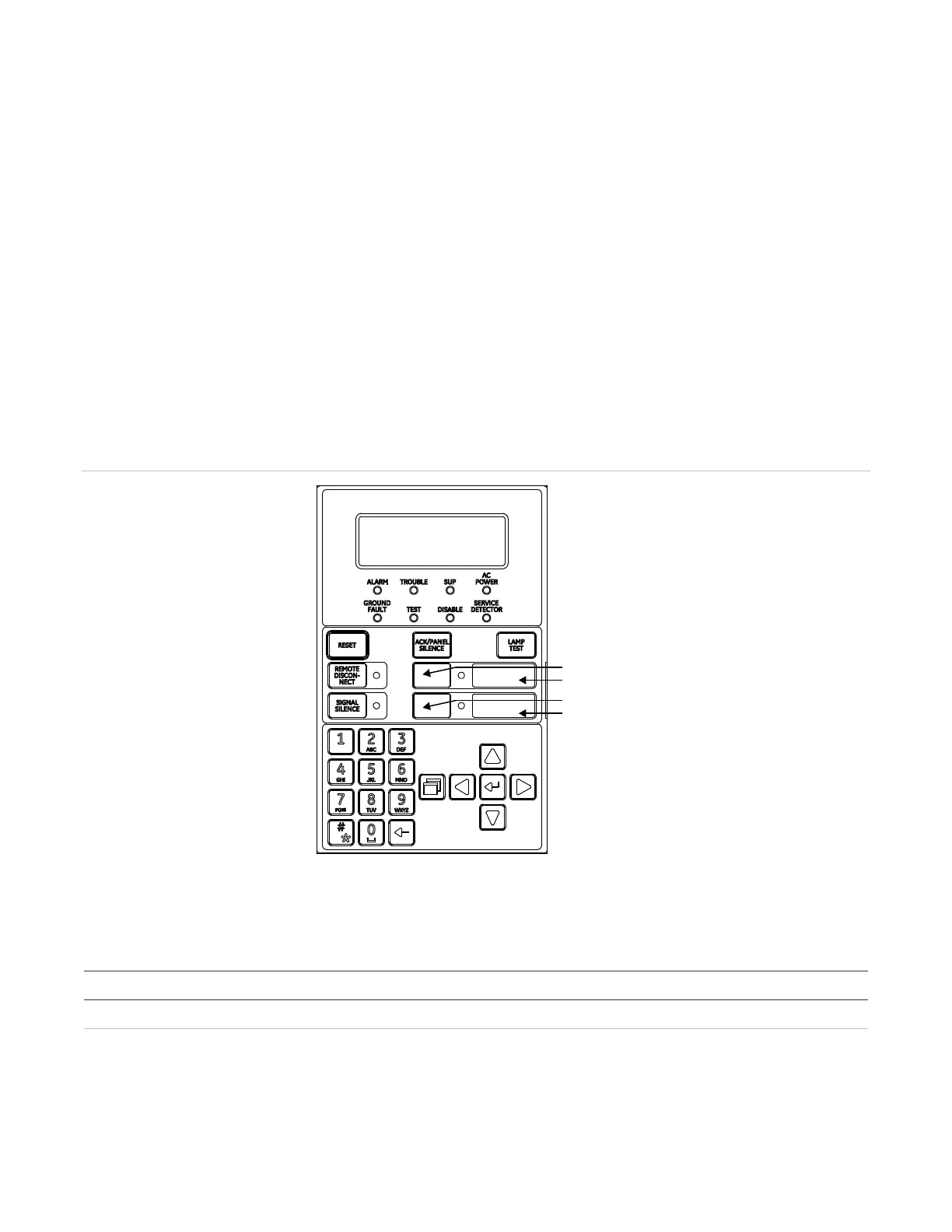

Figure 46: Programmable keys
Note: You cannot program a key while it is active. When the “Key is active” message is
displayed, wait until the key deactivates before continuing.
Table 21: Programmable key functions
Function
Option Behavior when user key is pressed
None
User key does not respond.
Activate
Activates the outputs that belong to the correlation groups associated
with the user key.
Key 1
Key 1 label
Key 2
Key 2 label
