Kidde FX-64 User Manual

Chapter 3: System operation
P/N 3102352-EN • REV 005 • ISS 28DEC18 121
Operation overview
Front panel display
The front panel display is the user interface for the control panel. The display is comprised of
the LCD, LED indicators, and control buttons that are used to operate and program the panel.

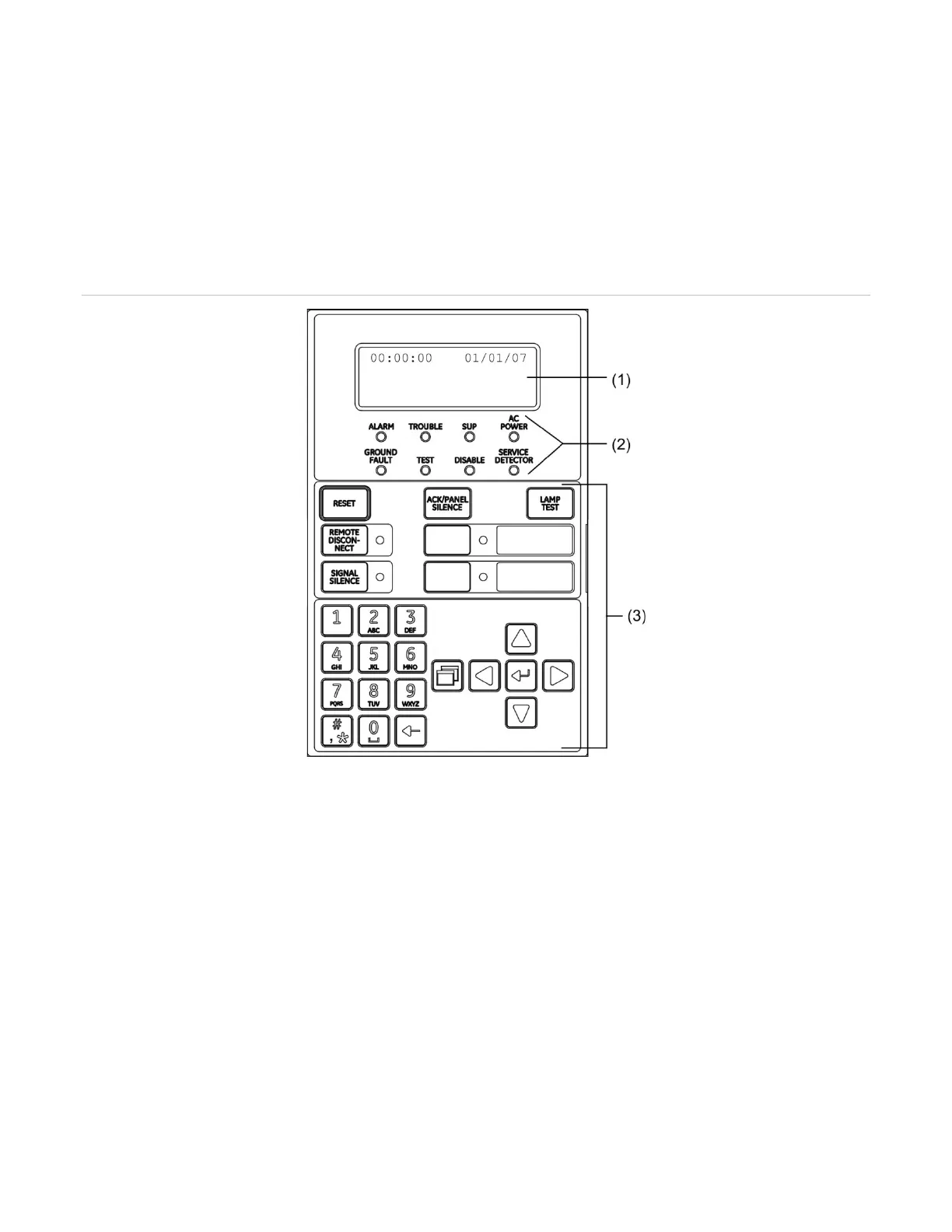

Figure 47: Front panel display layout
(1) LCD display
(
2) System LEDs
(3) Control buttons
Control panel operations
The control panel operates in either normal mode or off-normal mode.
Normal mode
The panel operates in normal mode in the absence of any alarm, supervisory, trouble, or
monitor events. In normal mode, the control panel monitors the system. The panel and LCD
remote annunciators display the time, date, and banner text, if programmed.
