Kidde FX-64 User Manual

Chapter 1: Installation and wiring
12 P/N 3102352-EN • REV 005 • ISS 28DEC18

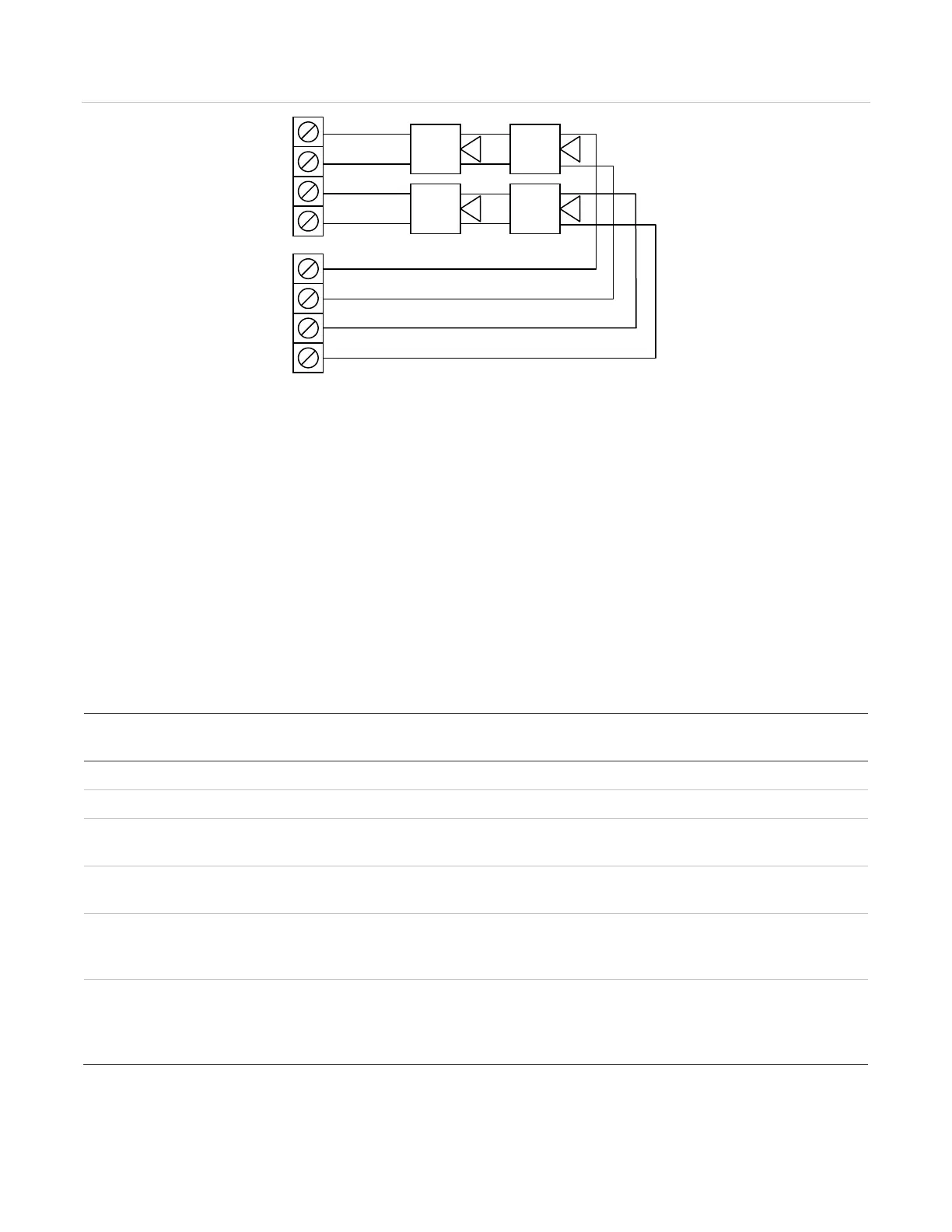

Figure 13: FX-1000 panel Class A NAC wiring
Note: For FX-64 Class A NAC wiring, see “SA-CLA wiring” on page 26.
Addressable device loop wiring
The FX-64 and FX-1000 control panels have addressable device circuits that you can use with
addressable detectors and modules (Table 4). The FX-64 supports up to 64 detectors or
modules. The FX-1000 accommodates two loop cards, and the loop cards can be a single loop
or a dual loop. The FX-1000 supports up to 1,000 devices, depending on your configuration.
The loop circuit is supervised for open circuits, short circuits, and ground faults.
Table 4: Total supported device addresses
Panel type
Number of loop
cards installed
Loop card type Total number of addresses supported
FX
-64 1 FX-SLC1 64 (any combination of detectors or modules)
FX
-1000 1 FX-SLC1 250 (125 detectors and 125 modules)
FX
-1000 2 FX-SLC1
FX-SLC1
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
FX
-1000 1 FX-SLC2 250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
FX
-1000 1
1
FX-SLC1
FX-SLC2
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
FX
-1000 2 FX-SLC2
FX-SLC2
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
TB2
TB6
NAC1–
NAC2+
NAC2–
NAC1+
+
+
–
–
+
–
+
–
+
–
+
–
