Chapter 1: Installation and wiring
16 P/N 3102352-EN • REV 005 • ISS 28DEC18

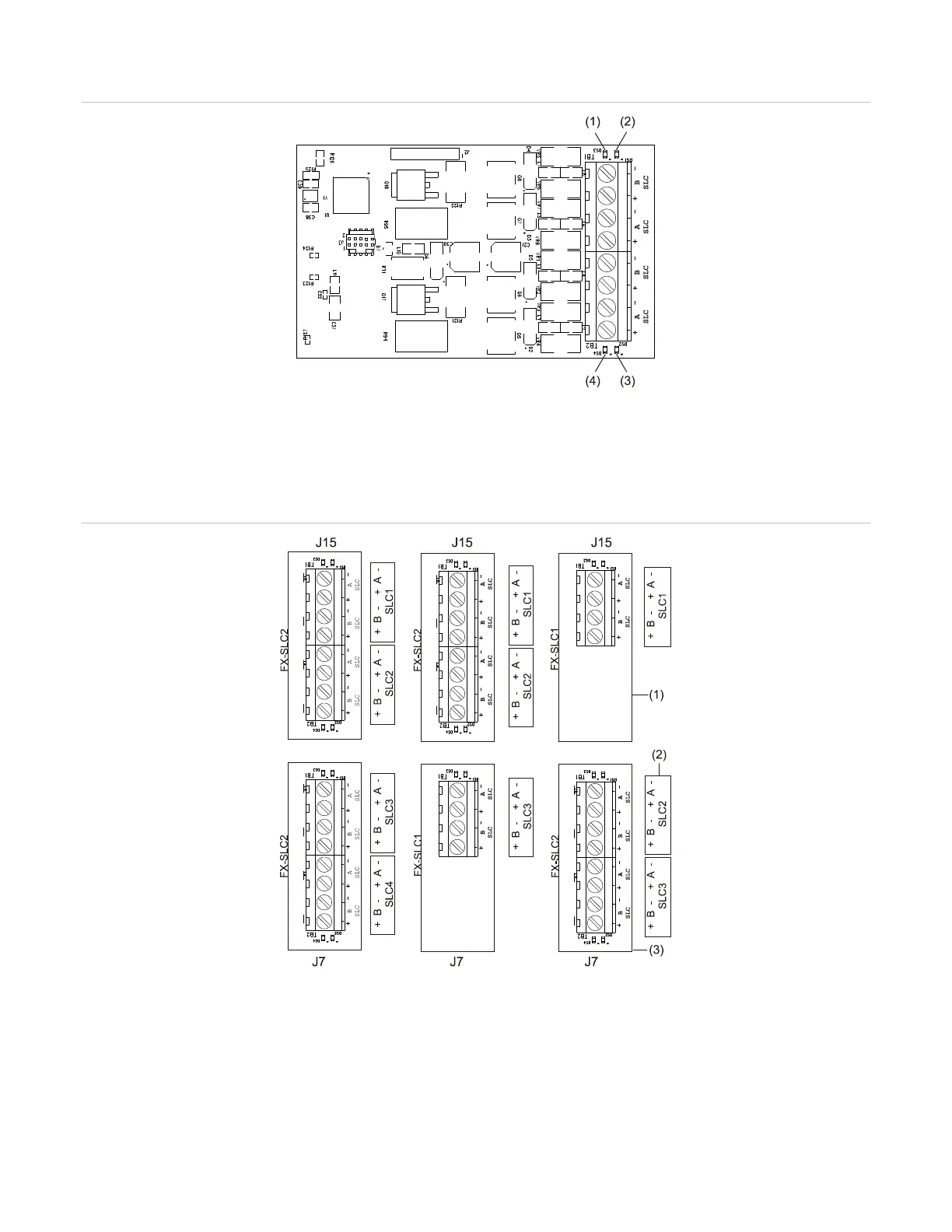

Figure 19: Dual SLC interface card LEDs (FX-1000 panels only)
(1) LED DS3: SLC fault: Solid ON to indicate an open
fault. Flashes to indicate a short fault.
LED DS1: Device communication: Flashes to
indicate normal device communications.
(3) LED DS2: Device communication: Flashes to
indicate normal device communications.
LED DS4: SLC fault: Solid ON to indicate an open
fault. Flashes to indicate a short fault.
Figure 20: Panel SLC number configurations
(1) Connector J15 (primary position)
(2) Panel label
(3) Connector J7 (secondary position)
