Chapter 1: Installation and wiring
P/N 3102352-EN • REV 005 • ISS 28DEC18 19
Notes
• Refer to the K-R Series Remote Annunciator Installation and Operation Guide
(P/N 3102382-EN) for detailed wiring information.
• Installation limits are determined by the AHJ.

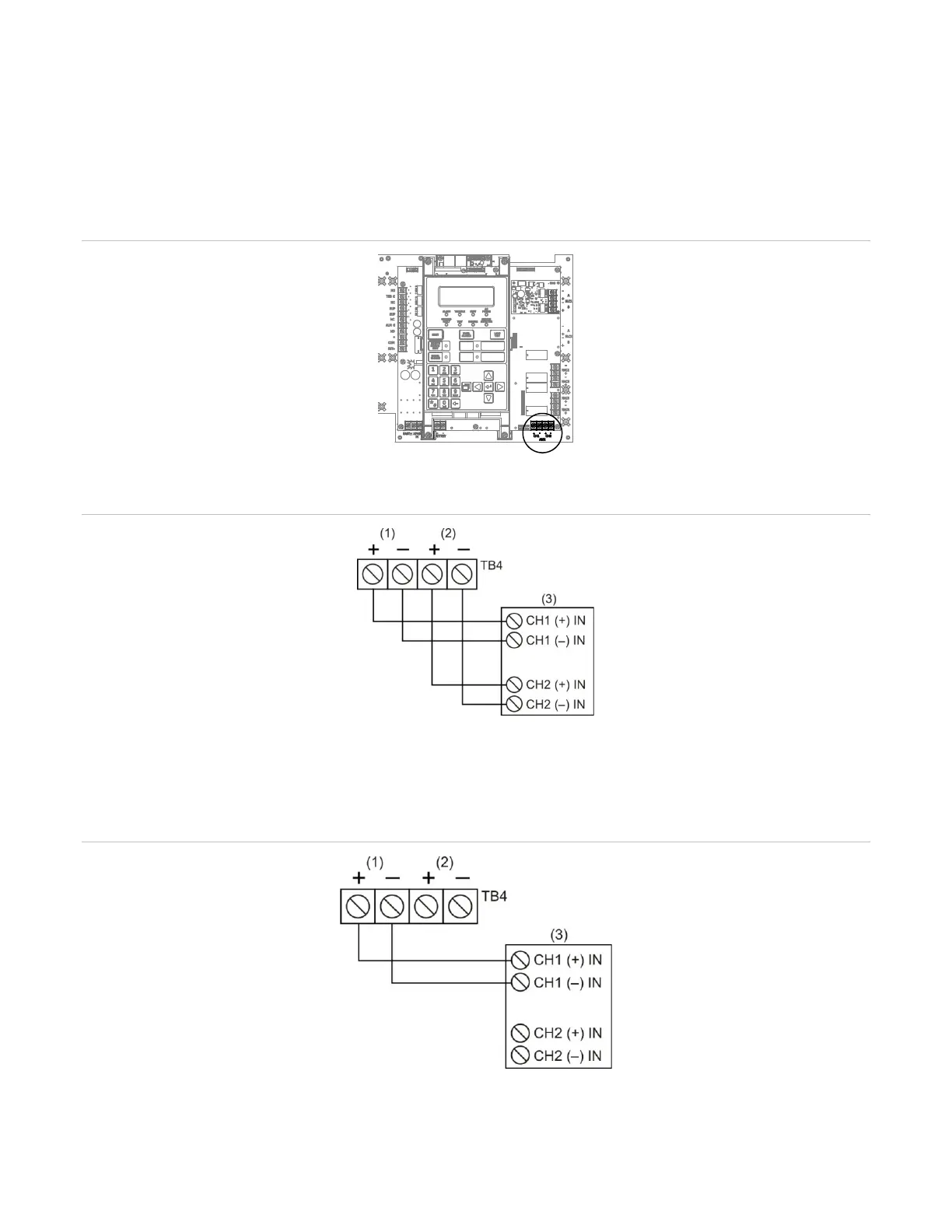

Figure 23: Remote annunciator wiring location
Figure 24: Annunciator channel wiring (Class A)
(1) Channel 1
(2) Channel 2
Note: To use the Class A option, you must install the SA-CLA module in the FX-64.
Figure 25: Annunciator channel wiring (Class B)
(1) Channel 1
(2) Channel 2
