Kidde FX-64

Chapter 1: Installation and wiring
P/N 3102352-EN • REV 005 • ISS 28DEC18 23

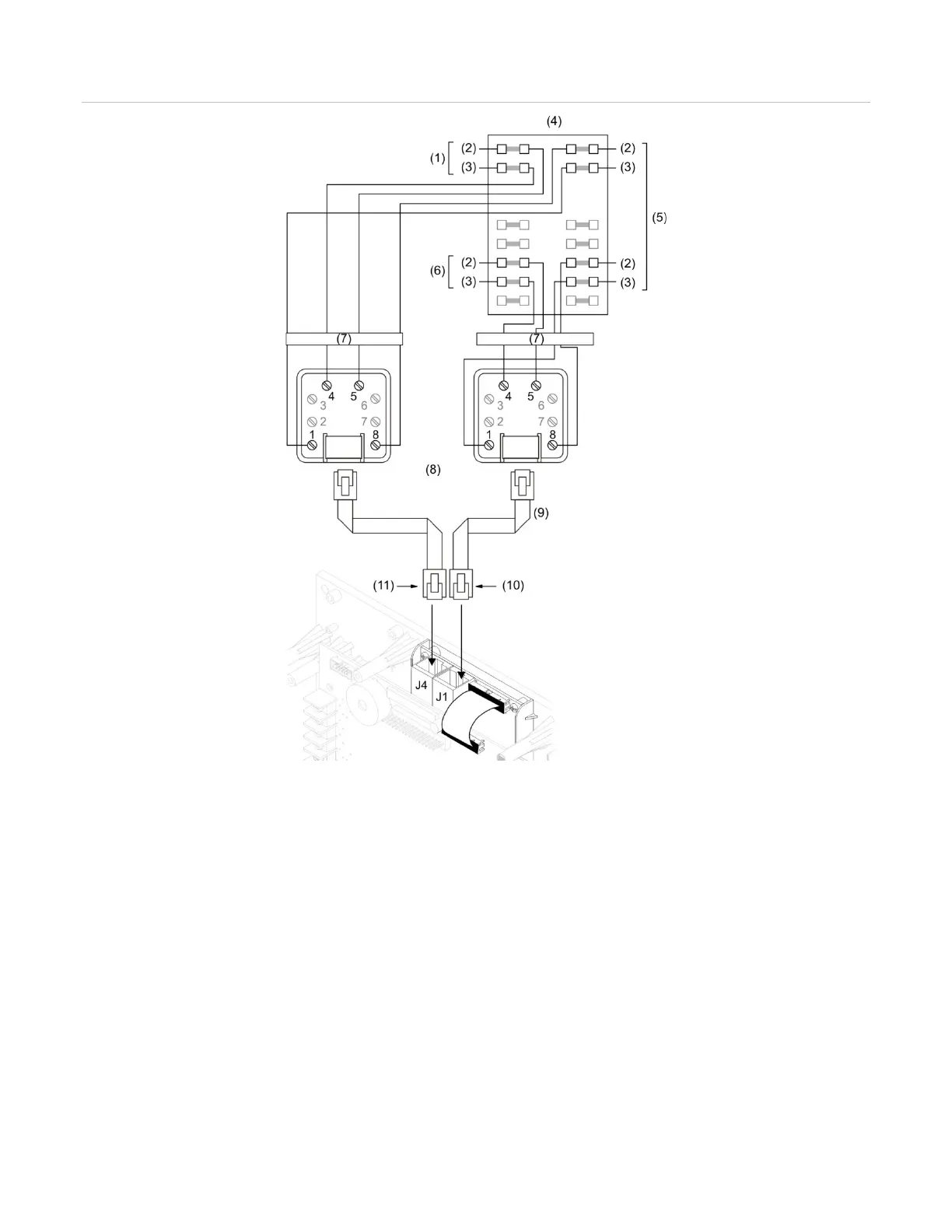

Figure 29: SA-DACT wiring
(1) TELCO Line 2
(
2) Tip
(3)
Ring
(4)
Protected premises punch down block
(5)
PBX
(6) TELCO Line 1
(7) Telephone protector
(8) RJ-31X block (supplied by installer)
(9) 8-position, 4-conductor modular cords
(supplied by the customer)
(10) LINE 1
(11) LINE 2
