Chapter 1: Installation and wiring
P/N 3102352-EN • REV 005 • ISS 28DEC18 27
Circuit specifications
• Operating current
Standby: 3 mA
Alarm: 60 mA max.
• Max. resistance: 26 Ω
• Max. capacitance: 0.35 µF
• Max. current: 2.5 A per circuit
• Ground fault impedance: 0 to 5 kΩ
• Power-limited and supervised

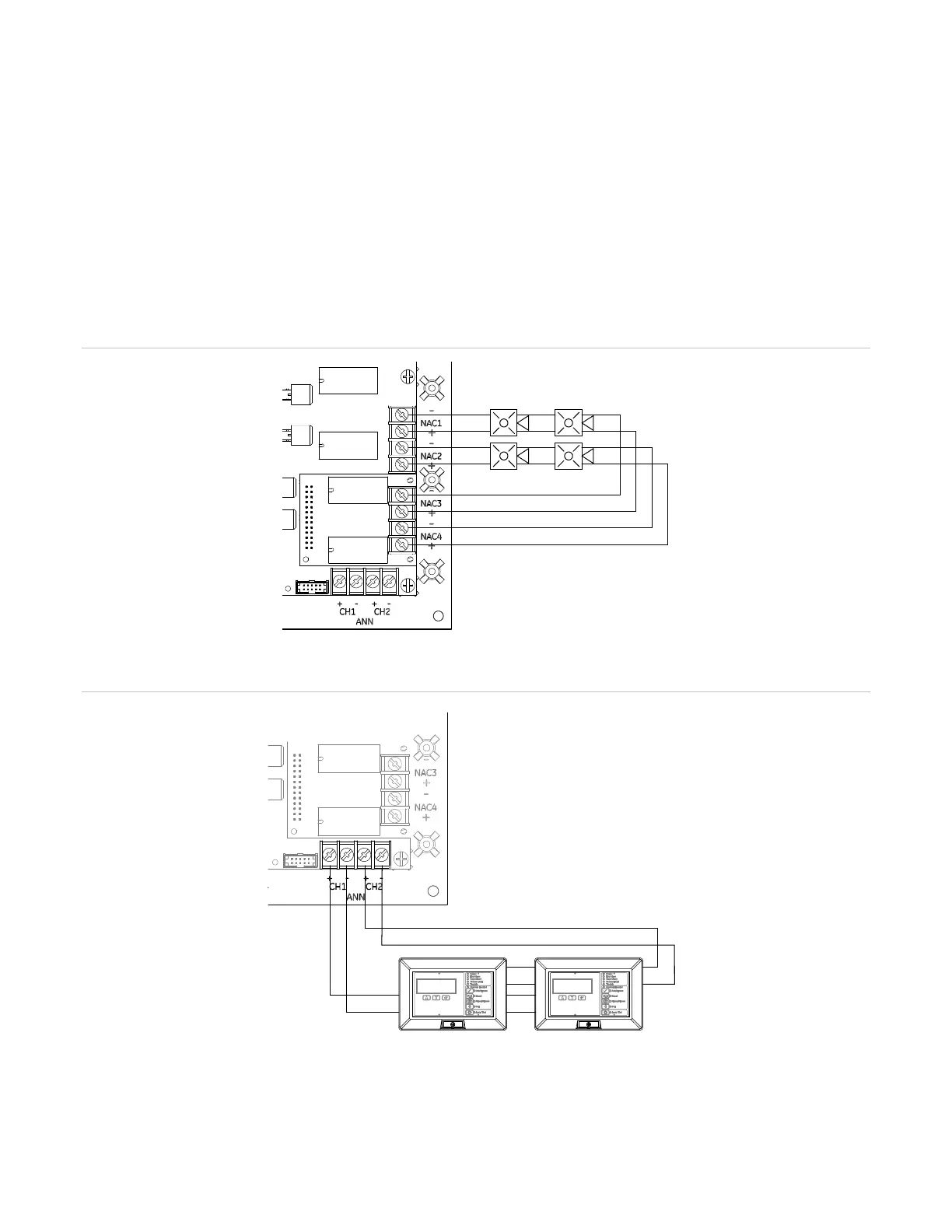

Figure 35: SA-CLA Class A NAC wiring
Figure 36: SA-CLA Redundant Class B remote annunciator circuit
