2 Product Description
SHE and ventilation control panel for controlling 24 V drives up to a maximum current output of 20 A.
Widevarietyofventilationandreprotectionscenariospossible.
2.1 Specialfeatures
• 2 drive lines for 24 V DC drives (channel 1 + 2). Maximum current output 16 A per drive line.
Total current output 20 A for both drive lines together.
• 2 SHE and ventilation channels (channels 1 + 2) can be used separately or in combination.
2 connection inputs for SHE buttons (up to 10 buttons per connection), smoke detectors (up to 20 detectors per
connection),realarmsystem(FAS)andventilationbuttons(upto10buttonsperconnection).
• Further connection possibilities for:
- Wind/rain sensors
-3xcongurableoatingrelayoutputs(default:Fault|Trip|Wind/rainsignal)
- 1 x separate voltage output 27 V DC / 4 A (10 s)
• With the following monitoring functions:
- Line monitoring of the detector circuits (automatic detectors, SHE manual call point, FAS)
- Line monitoring of the drive circuits in 2-wire technology (short-circuit / interruption), optionally also in
conventional 3-wire technology
- Mains and battery monitoring
• SettingofthebasiccongurationsviaintegratedDIPswitches,e.g.:
- Ventilation actuation limit, dead-man operation, automatic ventilation closure, FAS trip via NO contact,
Magnetic clamp function,
• 6 displays in the housing door (operation, trip, fault, bus, maintenance, 230 V mains).
• Battery-backed retention of the functions for 72 hours.
• Status and error code display via internal 2 x 7-segment display on the motherboard.
• Prepared for networking several EasyConnect+ control panels by installing an additional
network board (BusCard).

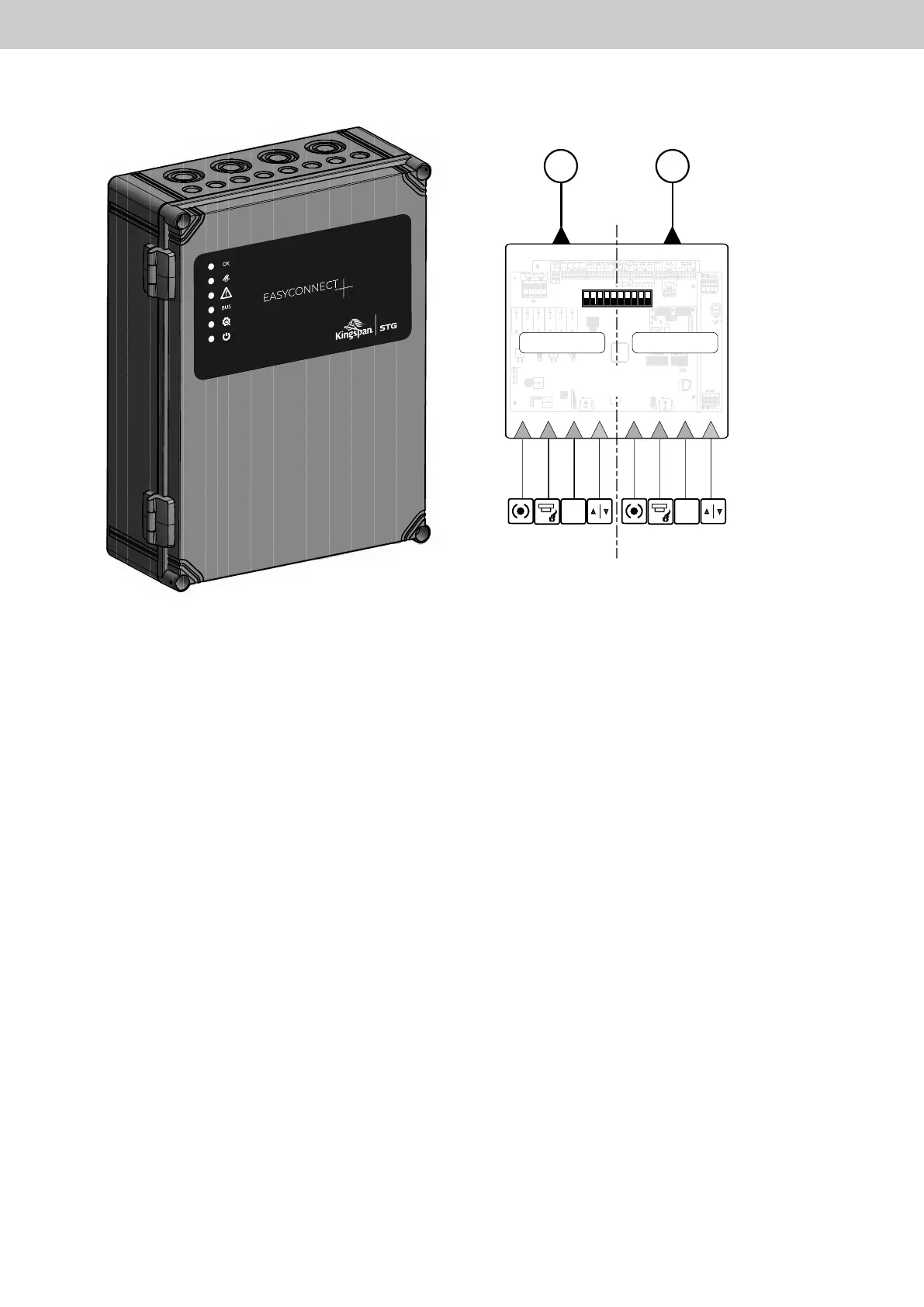

DIP switches
Drive line 1 Drive line 2
EasyConnect+
FAS FAS
Channel 1 Channel 2
EasyConnect+
