Kingspan EasyConnect+ - LED Displays for Automatic Detector Channels 1 + 2; LED Displays for SHE Buttons Channel 1 + 2; LED Displays for Ventilation Push Button Channels 1 + 2; LED Displays for Wind;Rain Sensor

71
01/13424999386





































































LEDdisplaysforautomatic
detectors Channel 1
Meaning
Lit green Detector trip
LEDdisplaysforautomatic
detectors Channel 1
Meaning
Lit green Detector trip
LEDdisplay3forSHEbuttonchannel1 Meaning
Lit green
Trip button
pressed
LEDdisplay3forSHEbuttonchannel2 Meaning
Lit green
Trip button
pressed
LEDdisplay6forSHEbuttonchannel1 Meaning
Lit green
CLOSE button
pressed
LEDdisplay6forSHEbuttonchannel2 Meaning
Lit green
CLOSE button
pressed

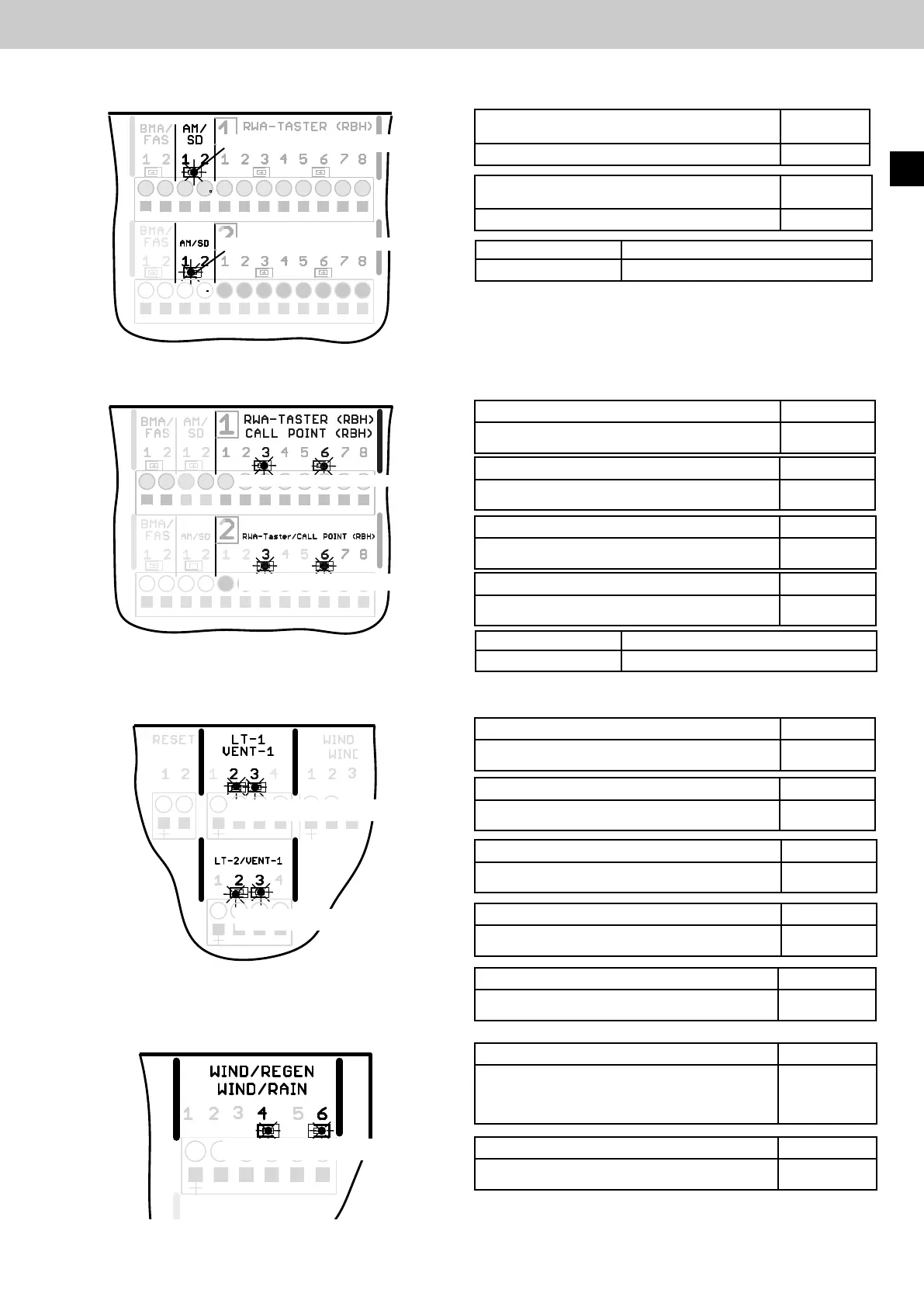

11.2.3LEDdisplaysforautomaticdetectorchannels1+2
11.2.4 LEDdisplaysforSHEbuttonchannels1+2
LED for automatic detector channel 1
LED for automatic detector channel 2
LED for SHE button channel 1
LED for SHE button channel 2
LEDdisplay2forventswitchchannel1 Meaning
Lit green
CLOSE button
pressed
LEDdisplay2forvent switch channel 2 Meaning
Lit green
CLOSE button
pressed
LED display 4 Wind/rain sensor Meaning
Lit green
Rain signal
or wind/rain
signal active
LED display 6 Wind/rain sensor Meaning
Lit/ashinggreen
Wind signal
active
LEDdisplay3forvent switch channel 1 Meaning
Lit green
OPEN button
pressed
LEDdisplay3forvent switch channel 2 Meaning
Lit green
OPEN button
pressed
LED displays 2 + 3 together Meaning
Lit green
Stop button
pressed
11.2.5LEDdisplaysforventswitchchannels1+2
11.2.6LEDdisplaysforwind/rainsensor
LED for vent switch channel 1
LED for vent switch channel 2
LEDs for wind/rain sensor
Extrainformation Meaning
LED display flash Signal from active end module ok
Extrainformation Meaning
LED display flash Signal from active end module ok
