Kingspan EasyConnect+ - Connection To Fire Alarm System (Fas)

62
01/13424999386













UEB2UEB2UEB2


















UEB2UEB2UEB2



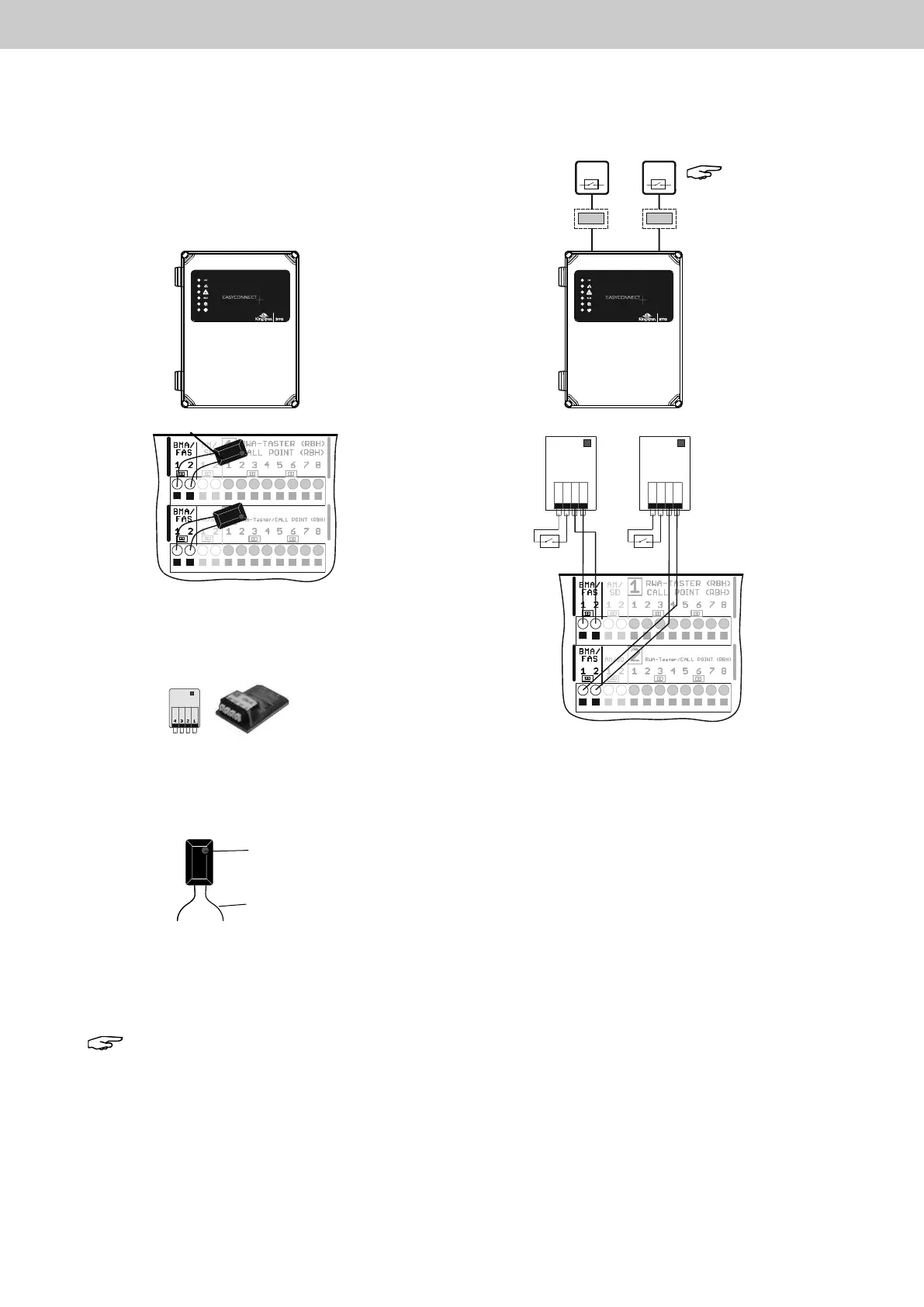

8.5  Connectiontorealarmsystem(FAS)
Channel 2
Channel 2
Channel 1
Channel 1
Connection to BMA with normally open contact (NO)Without FAS terminal
UEB3-2K7-AE
The UEB3-2K7-AE is not included in the
scope of supply and must be ordered
separately .
Note: The
UEB3-2K7-AE
is installed in the
FAS control
panel.
Active end module/2 (AE/2)
Active end module/2 (AE/2)
UEB3-
2K7-AE
UEB3-
2K7-AE
black connections
red LED
Note: With SHE channel coupling (DIP 10 = ON), only the FAS input of channel 1 is evaluated. The FAS
input of channel 2 must be terminated with an active end module/2 (AE/2).
EasyConnect+
EasyConnect+ EasyConnect+
