Kingspan EasyConnect+ - Connection of 3 X Floating Relay Outputs; Connection of Separate 27 V DC; 4 a Voltage Output

65
01/13424999386




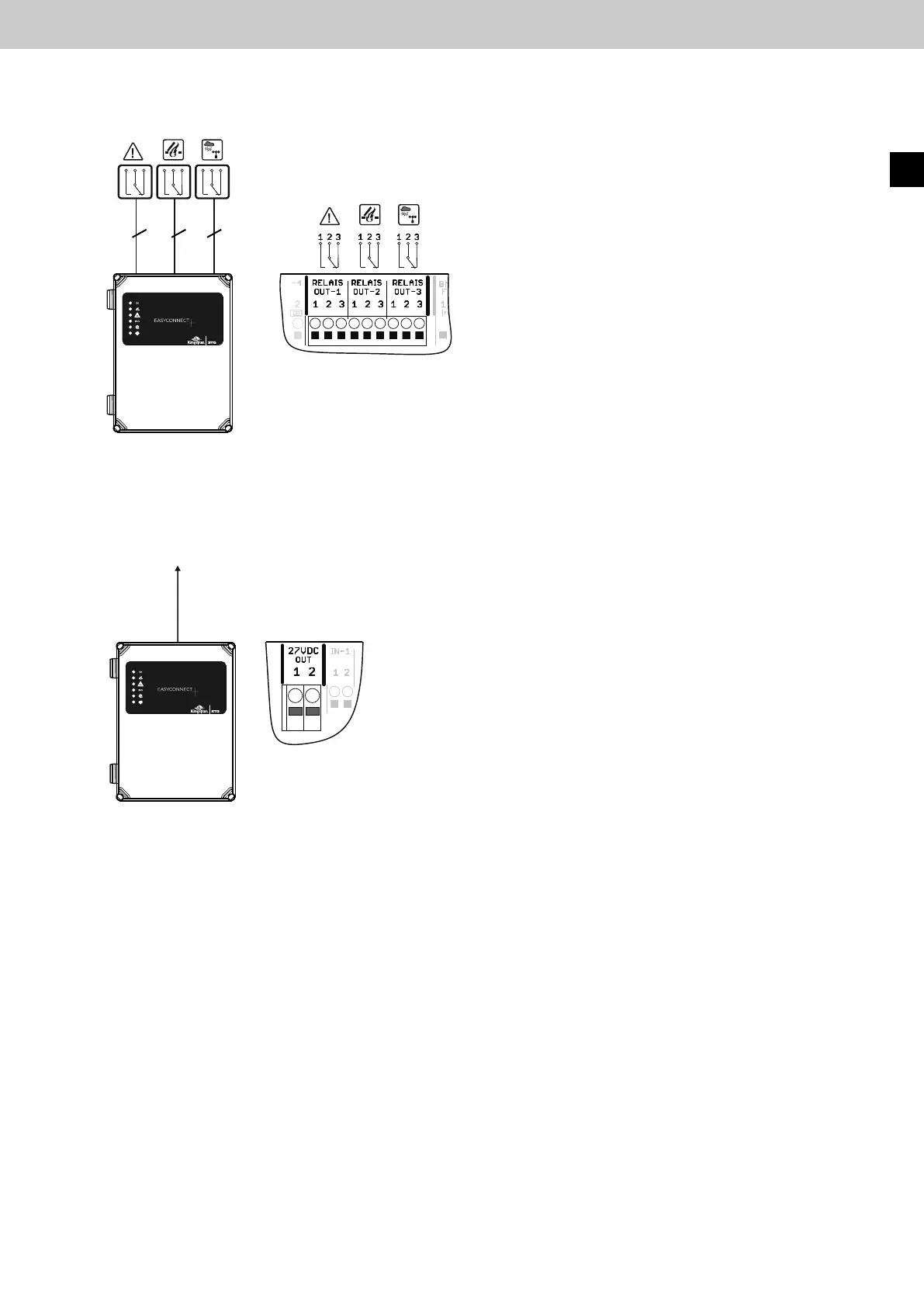

8.9  Connectionof3xoatingrelayoutputs
8.10 Connectionofseparate27VDC/4Avoltageoutput
3xoatingrelayoutputs
Default functions:
Fault, trip, wind/rain signal
Contact loading: max. 30 V / 1 A per contact (ohmic load)
Separate 27 V DC / 4 A voltage output
Available for 10 s in the event of a mains failure,
thenthevoltageisswitchedo.
2 2 2
1: S (NO)
2: Common
3: Ö (NC)
27 V DC / 4 A (10 s)
EasyConnect+
EasyConnect+
EasyConnect+
