neue Platine mit 3-Draht Leitungsüberwachung ab Jan. 2021
mail von M. Eggle am 12.11.2020
alte Platine nur mit 2-Draht Leitungsüberwachung
abverkauf der noch 150 Stck. bis Jan. 2021
Jumper
1 Mains connection 230 V AC (L, N, PE), maximum cable cross-section 2.5 mm² (solid 4 mm²).
2 Drive line 1 (channel 1): Connection of 24 V DC drives with pole reversing, load or limit position shutdown.
Maximum current output 16 A or 20 A with drive lines 1+2 together (ED 30). Maximum cable cross-section 6 mm².
3 Drive line 2 (channel 2): Connection of 24 V DC drives with pole reversing, load or limit position shutdown.
Maximum current output 16 A or 20 A with drive lines 1+2 together (ED 30). Maximum cable cross-section 6 mm².
4 Separate voltage output 27 V DC / 4 A (available for 10 s), maximum cable cross-section 2.5 mm².
5 27 V DC / 4 - 20 mA analog interface input (in preparation)
6 3 x digital high / low signals (in preparation)
7 3xoatingrelayoutputs.Defaultfunctions:Fault(1),trip(2),wind/rain signal (3)
8 2xrealarmsystem(FAS)inputs(channels1and2)
9 2 x automatic detector inputs (channels 1 and 2), max. 20 detectors per channel
10 2 x SHE manual call point inputs (channels 1 and 2), max. 10 call points per channel
11 2 x 24 V ventilation push button inputs (channels 1 and 2)
12 External reset button input (reset SHE trip and reset automatic detectors)
13 Input for connection of wind/rain sensors Type WRM/2 24V or rain sensors Type RM/2 24V
14 2 x 7-segment display for display of status and error codes
15 Internal reset button on the motherboard (reset SHE and FAS trip); if the button is held depressed, the software
version is displayed on the 2 x 7-segment display.
16 DIPswitchpanelwith10congurationpossibilities(forchannels1+2)
17 Service port interface (RJ 12 jack)
18 Mains fuse F1, 10 A, safety fuse
19
Mains power pack fuse F2, 20 A, FKS (yellow)
20 Drive fuse (channel 1) F4, 15 A, FKS (blue)
21 Drive fuse (channel 2) F5, 15 A, FKS (blue)
22 Battery fuse F3, 20 A, FKS (yellow)
23 Battery connection: Blade connector + (blue), blade connector - (white)

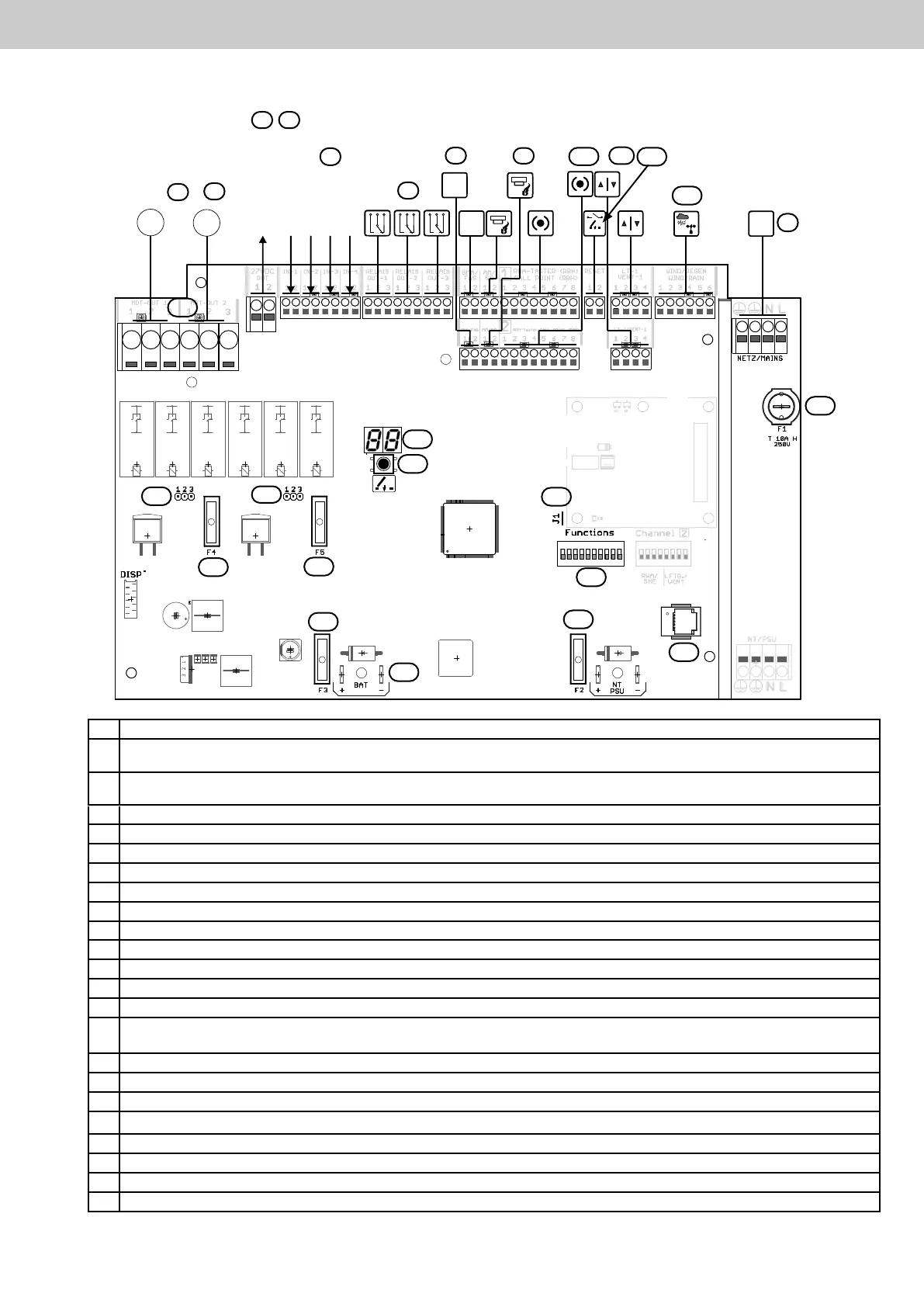

4 Overviewofthemotherboardandconnectionpossibilities
1
27 V DC / 4 A (10 s)
Analog IN 4-20 mA
Digital IN
Digital IN
Digital IN
2
4 5
6
7
8
13
9
10
11
12
14
15
16
17
18
19
20
21
25
26
27
24
22
23
3
