Kingspan EasyConnect+ - Page 67

67
01/13424999386
1 2 3 4 5 6 7 8 9
ON
1 2 3 4 5 6 7 8 9
ON
10
1 2 3 4 5 6 7 8 9
ON
1 2 3 4 5 6 7 8 9
ON
10
1 2 3 4 5 6 7 8 9
ON
1 2 3 4 5 6 7 8 9
ON
10
1 2 3 4 5 6 7 8 9
ON
1 2 3 4 5 6 7 8 9
ON
10

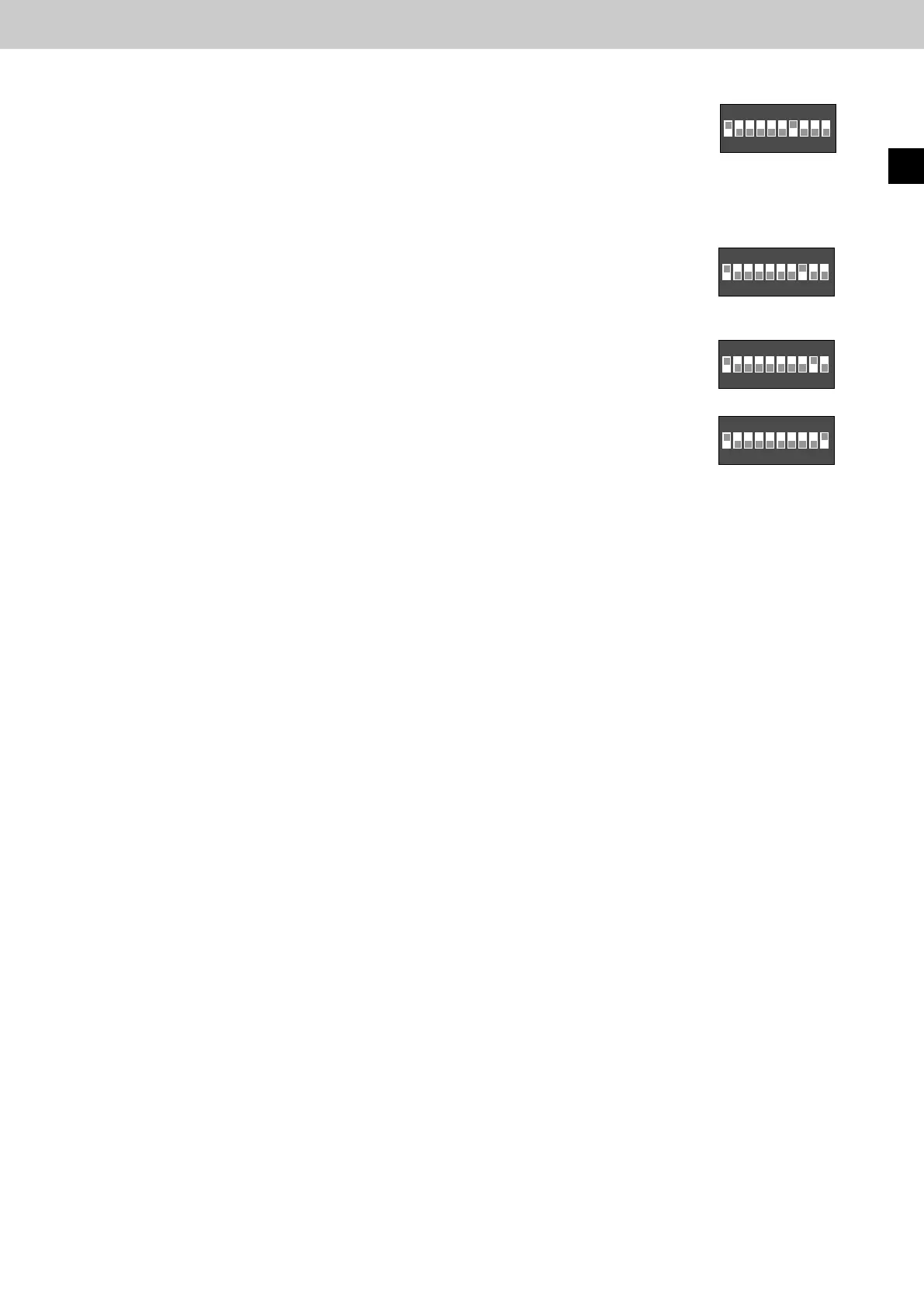

DIP switch 7: Position ON: Magnetic clamp function activated.
In this function, the drive outputs are continuously supplied with power in standby condition.
IntheeventofaSHEtrip,thedriveoutputsareswitchedo.
Intheeventofamainspowerfailure,thedriveoutputsareswitchedoafteracongurable
time(Defaultsetting:30s,forbriefbridging).
Position OFF (not actuated): Magnetic clamp function deactivated.
DIP switch 8: Position ON: Changeover of FAS triggering from normally open contact
to normally closed contact.
DIP switch 9: Position ON: Drive outputs 1 + 2 for the ventilation function operate together.
Position OFF (not actuated): Drive outputs 1 + 2 for the ventilation function operate separately.
DIP switch 10: Position ON: Drive outputs 1 + 2 for the SHE function operate together.
Position OFF (not actuated): Drive outputs 1 + 2 for the SHE function operate separately.
EasyConnect+
EN
