EasyConnect+
►
►
►
►
Motor output connection settings
Running time Open / Close
Meaning: Setting of the drive running time for the OPEN
and CLOSE direction in seconds (for SHE
activation) until the output voltage on the motor
 connectionisswitchedoandthedriveis
 stoppedforaspecicopeningwidth.
Setting range 1 s - 180 s
Note: The running time value can not be used as
a stroke limitation. The value should correspond
to the time that an opening unit needs for
complete opening.
Attention: If this value is too low, then the
opening unit will not open completely.
If this value is too high, then the re-trigger function
will start too late in case of a blockage.
Note: OnlyeectivewhenDIPswitches1+6
are ON or DIP switch 1 is OFF and the virtual
DIP switch 6 is activated .
Delay Open / Close
Meaning: Setting for the delay time in seconds (for RWA
activation and resetting of the RWA activation)
for the OPEN and CLOSE direction before the
motor output is supplied with power.
Setting range 1 s - 10 s
Magnetic clamp connection settings
Holds during mains failure
Meaning: Setting for the power supply time
(emergency power supply via battery) in
seconds for a mains failure.
Setting range 1 s - 10 s, default 10 s
Note: OnlyeectivewhenDIPswitches1+7
are ON or DIP switch 1 is OFF and the virtual
DIP switch 7 is activated .
►
►
FAS input connection settings
NO contact (default)
Meaning: The SHE activation takes place via a NO
 contactoftheon-siterealarmsystem(FAS).
Open contact
Meaning: The SHE activation takes place via an open
 contactoftheon-siterealarmsystem(FAS).
Note: In addition, a UEB3-2k7-AE module must
be used for the electrical connection.
►
Automatic smoke detector connection settings
Automatic smoke detector
Meaning: 3 selection options for detector types that can
be connected.
Kingspan Stg / Argina, Hekatron, Apollo
Pre-alarm
Meaning: The activation of the detector is displayed vi
the LED malfunction. No actuation or travel of
a drive is executed yet.
►

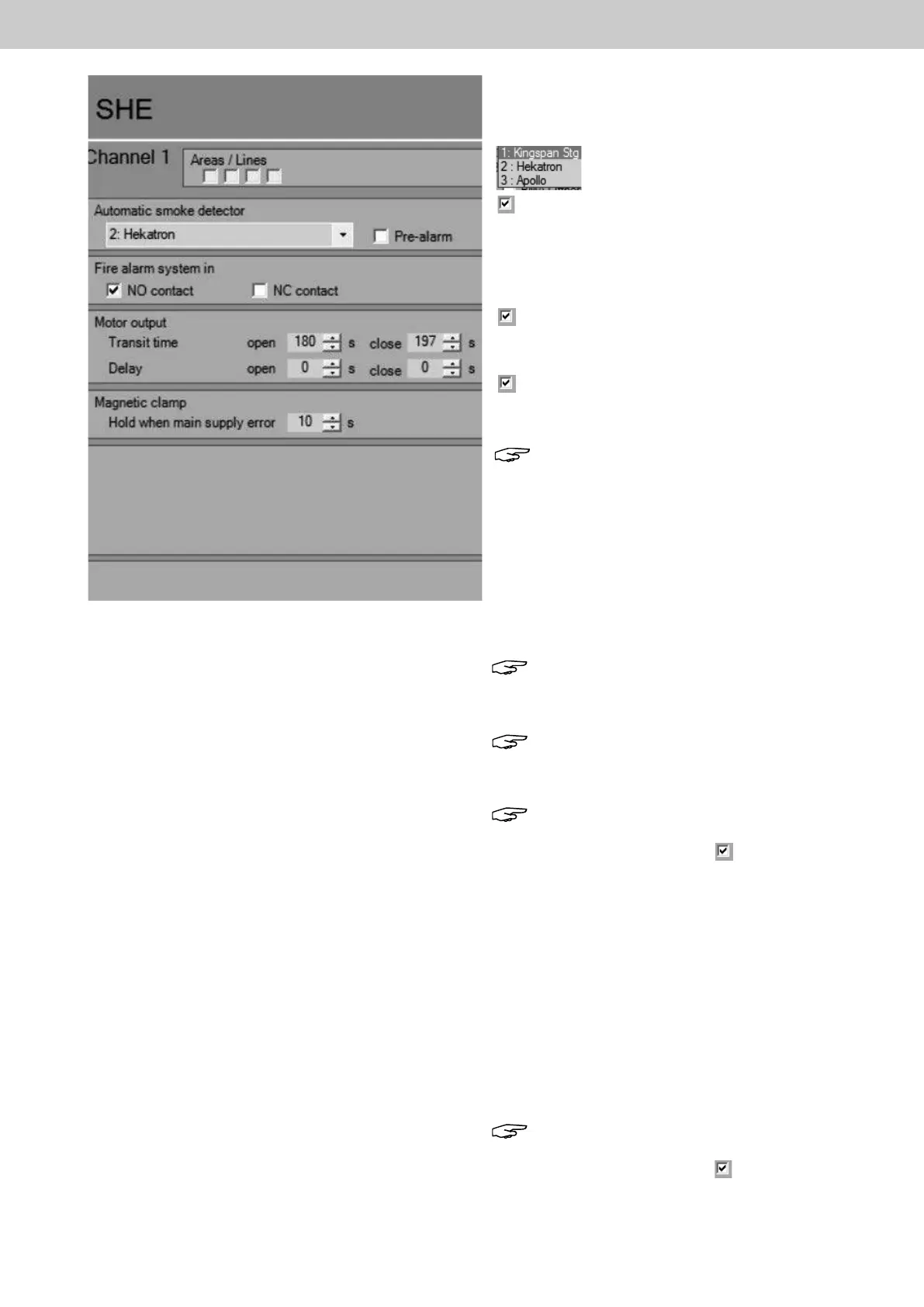

Fig.:SHEcongurationinterface,channel1
