2.3.4 Notes on connection techniques
Please consider our application note “Cables and connectors”

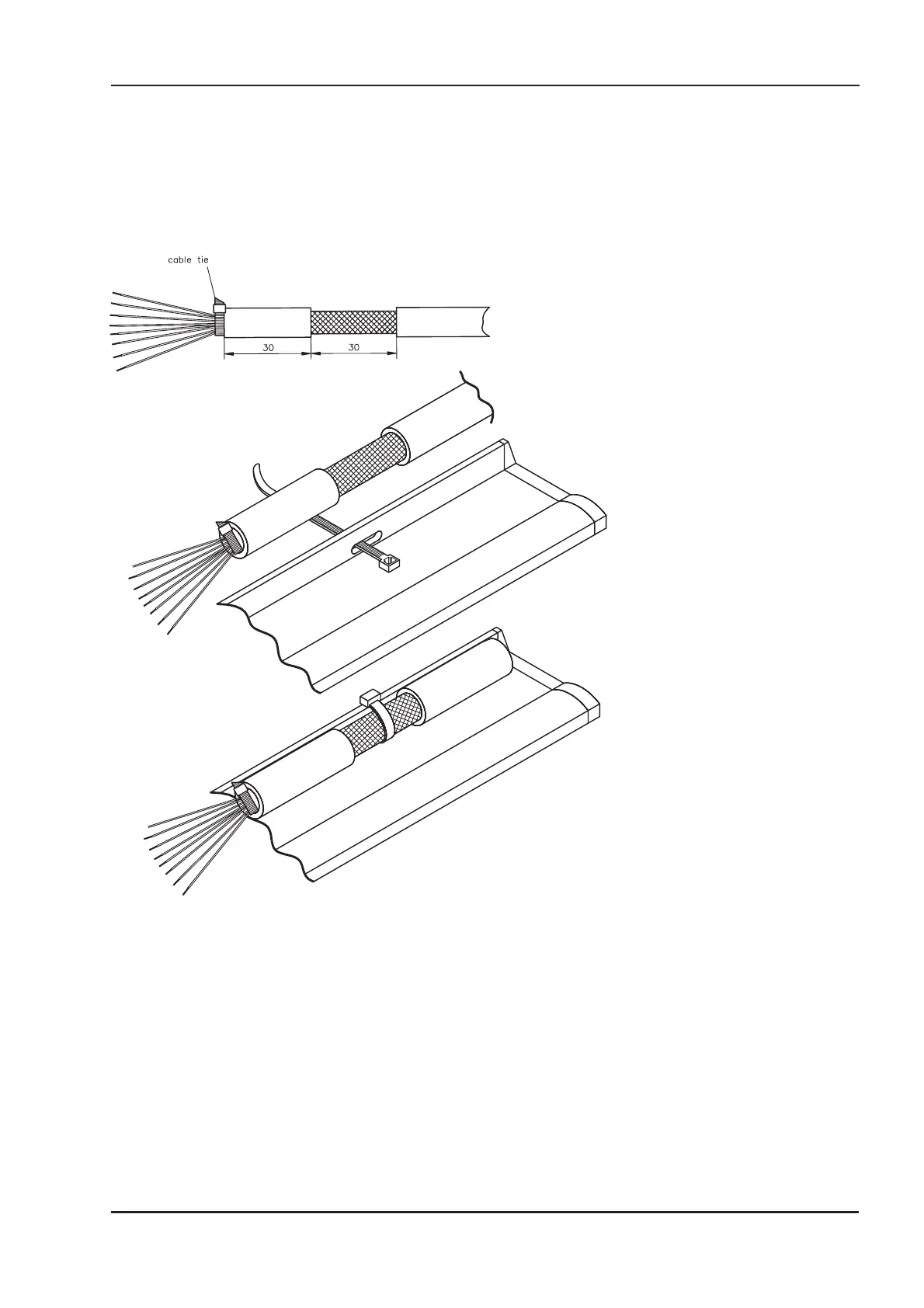

2.3.4.1 Shielding connection to the front panel
SERVOSTAR
®
601...620 Installation Manual 33
Kollmorgen 03/04 Installation
Remove the outer covering of the cable
and the shielding braid from the cores
for the required length. Secure the cores
with a cable tie.
Remove the outer covering of the cable
over a length of about 30mm, without
damaging the shielding braid.
Pull a cable tie through the slot in the
shielding rail (front panel) of the servo
amplifier.
Use the cable tie to clamp the shielding
braid of the cable firmly to the shielding
rail.
