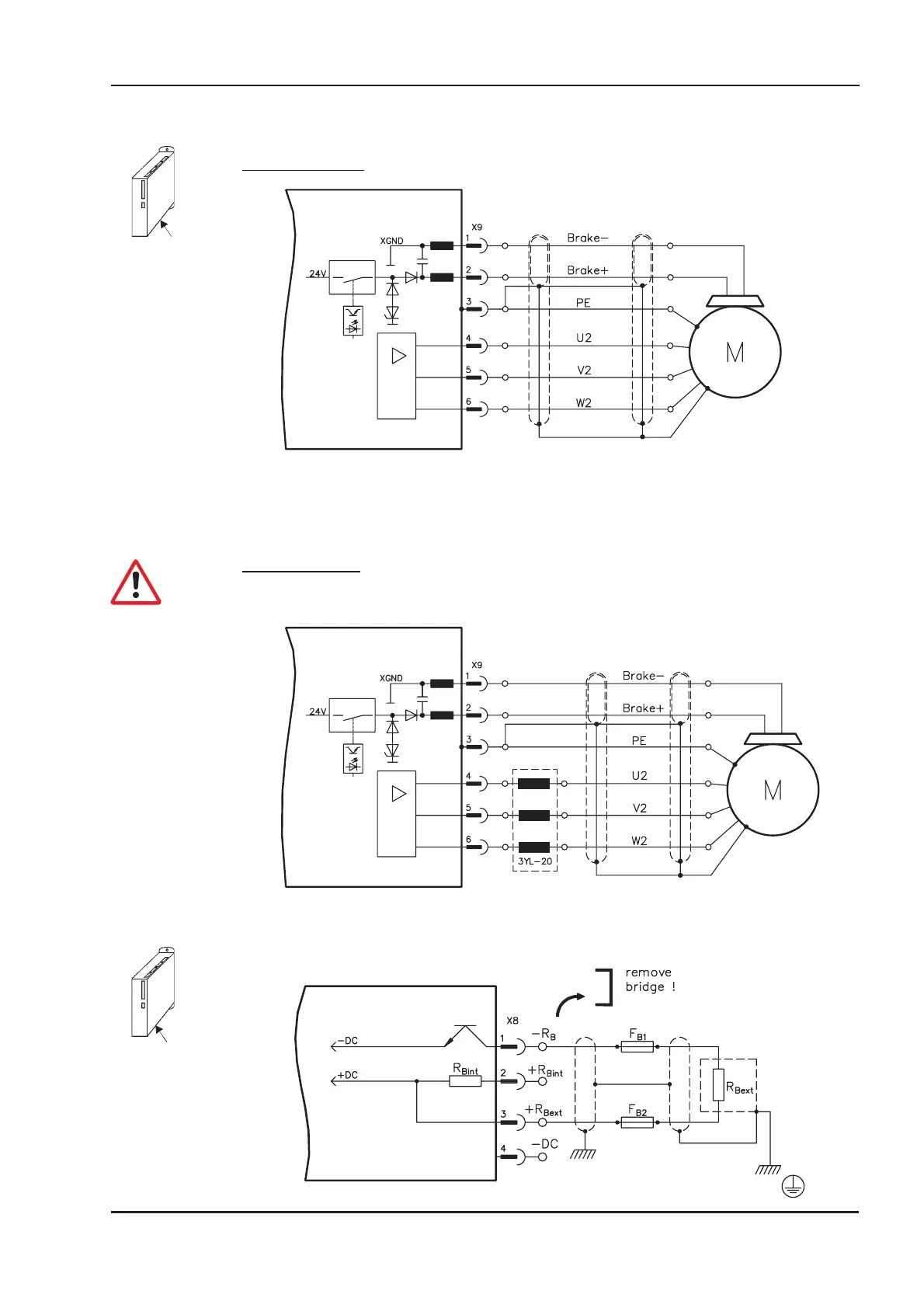

3.2 Motor connection with brake (X9)

Lead length £ 25m

Lead length >25m

For lead lengths above 25m the choke box 3YL-20 must be wired into the motor lead,

close to the amplifier.

3.3 External regen resistor (X8)

Remove the plug-in link between the terminals X8/1 (-R

) and X8/2 (+R

bint

SERVOSTAR

601...620 Installation Manual 39

Kollmorgen 03/04 Interfaces

SERVOSTAR 600
