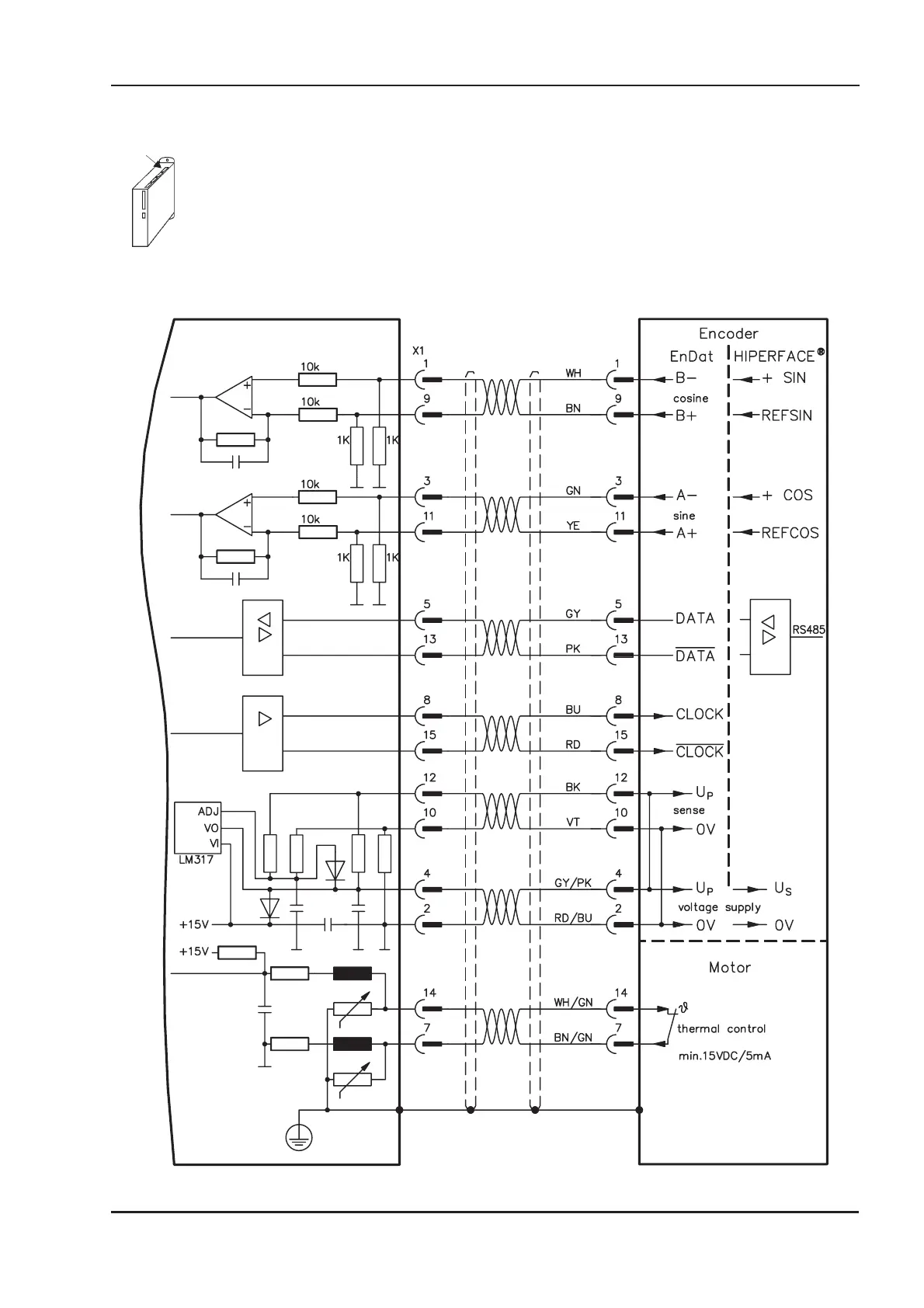

3.4.2 Encoder (X1)
As an option, our servomotors can be fit with a single-turn or multiturn sine-cosine encoder. Prefer
-
red types are ECN1313 and EQN1325.
This encoder is used by the SERVOSTAR 600 as a feedback device for drive tasks which require
highly precise positioning or extremely smooth running.
If lead lengths of more than 50m are planned, please consult our customer service.
The thermostat contact in the motor is connected via the encoder cable to the SERVOSTAR 600
and evaluated there.
